Description:

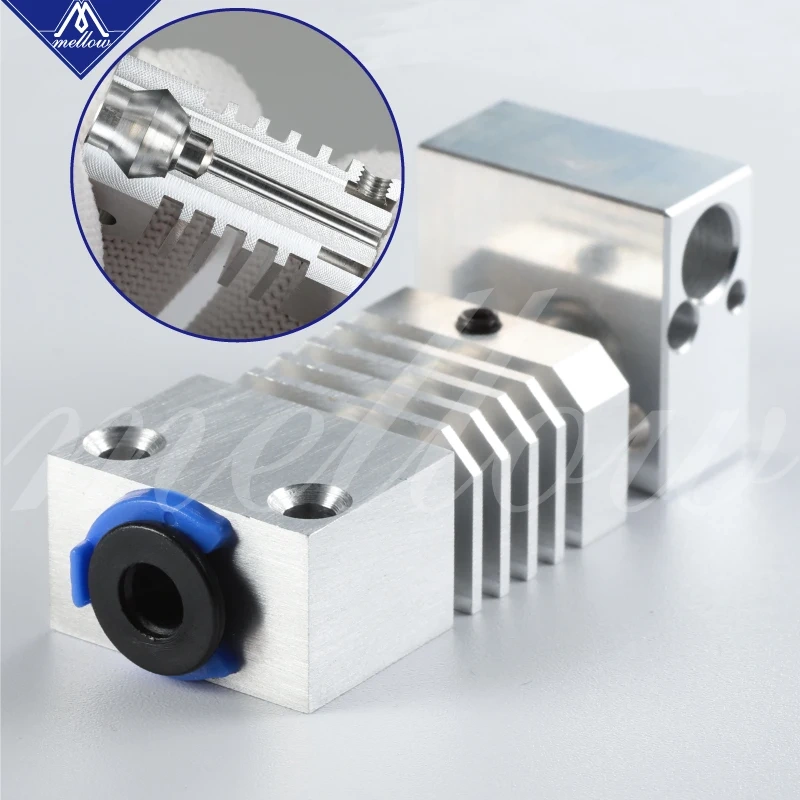

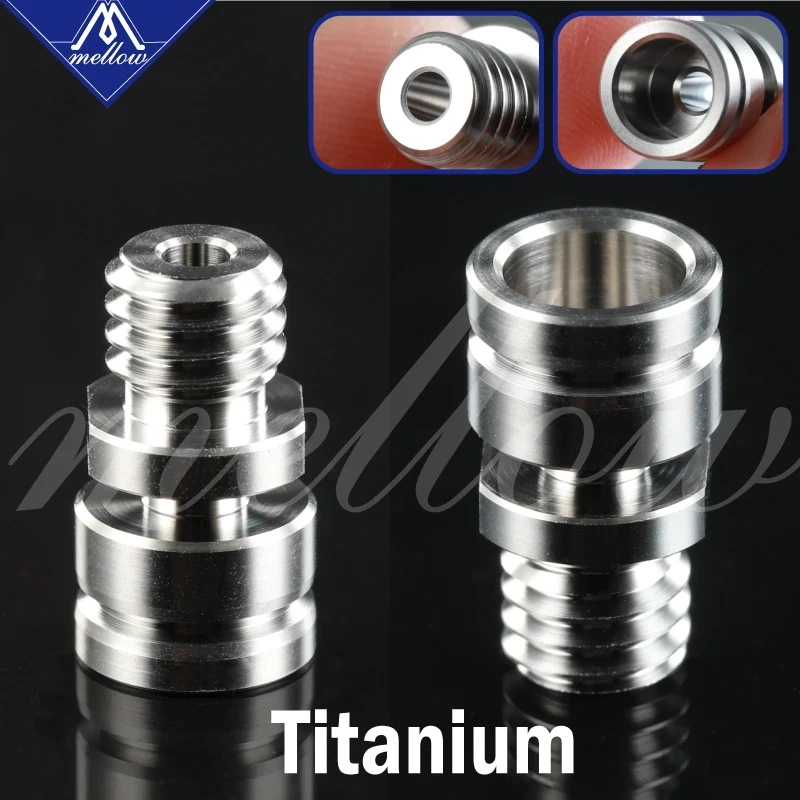

This is a drop in All Metal Conversion kit for CR-10S PRO printers. It requires absolutely zero modification to your printer to install. Our uniquely designed cooling block eliminates need for a thermal tube. By not having separate thermal tube inside cooling block, it allows for faster heat dissipation. Thermal heat break is made from Titanium Alloy to provide excellent thermal isolation between heater and cooling block. Titanium is extremely strong material and offers almost 3x lower thermal conductivity than stainless steel, creating more defined meltzone.
Print suggestion:
retraction speed over 80MM/S
retraction length 2.5-4MM
If you are facing PLA clogging problem,please try the followings:
1. Increase the retraction speed. The speed may have being limited in the firmware try to change it. G-command "M203 E200"
2. Increase the extruder acceleration. check your firmware settings. G-command "M201 E9000"
3. Reduce the retraction length.it depends on your machine setup.Increase the nozzle temperature by 5-10 degrees.
5. Please do not use the two mounting screws of the heating block.
6. Make sure that there is no gap between the heatsink and the heat breaker.

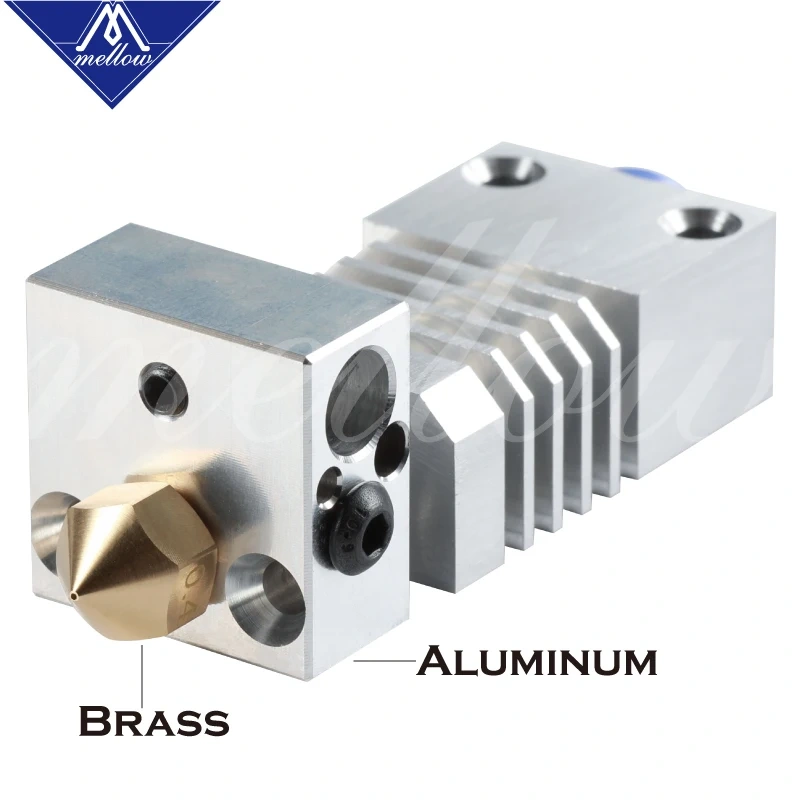

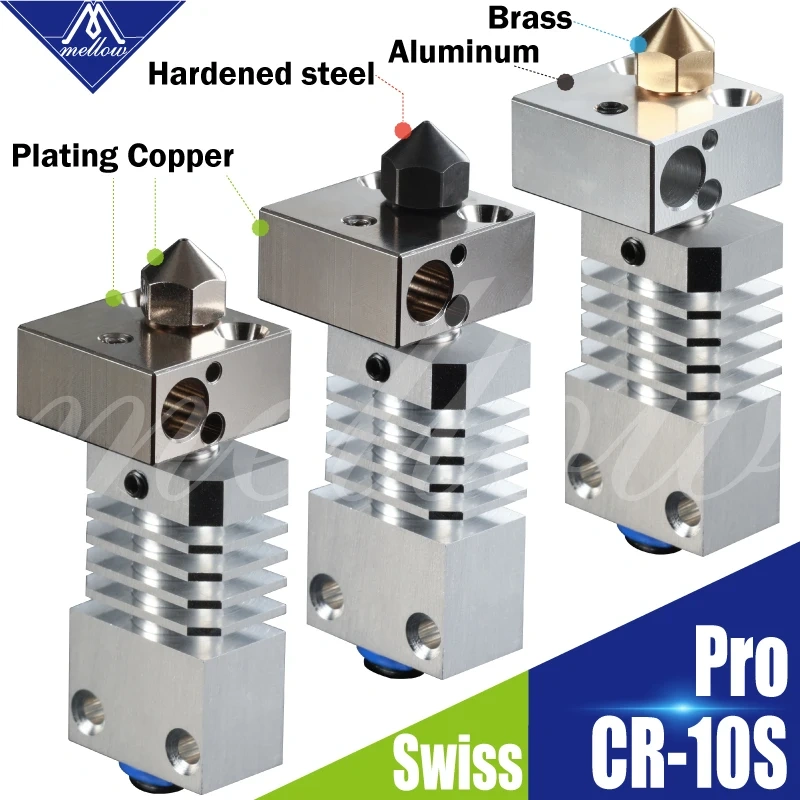

Set1:
Aluminum CR-10S PRO Cooling Block X 1
Titanium Heat Break X 1
High Precision Brass Nozzle X 1
High Quality Aluminum Heating Block X 1
Optional
12V/24V Heating tube X 1
HTNTCX 1

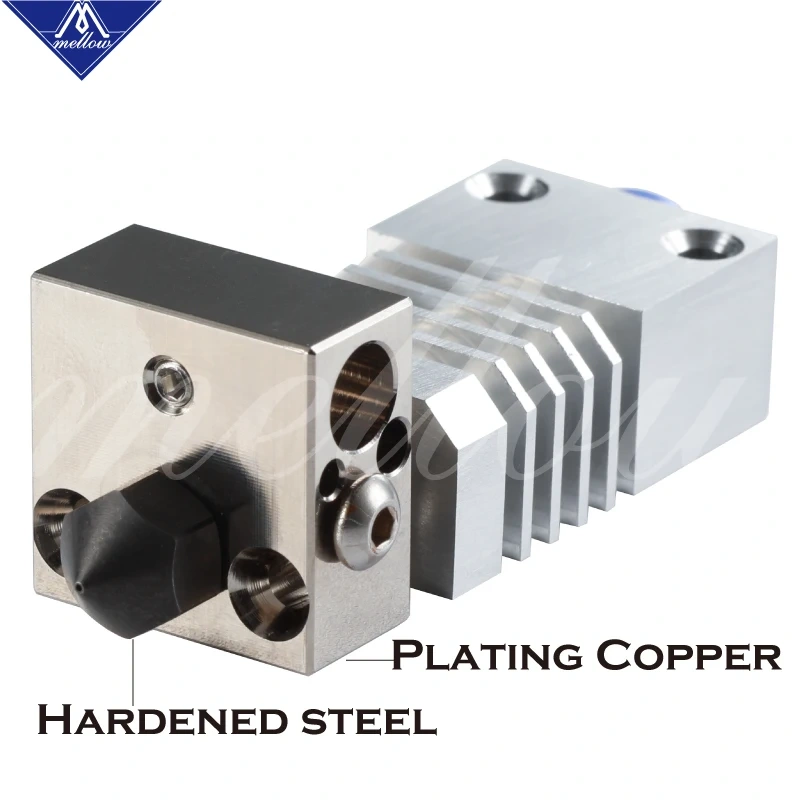

Set2:
Aluminum CR-10S PRO Cooling Block X 1
Titanium Heat Break X 1
High Precision Hardened steel Nozzle X 1
High Quality Plated Copper Heating Block X 1
Optional
12V/24V Heating tube X 1
HTNTCX 1

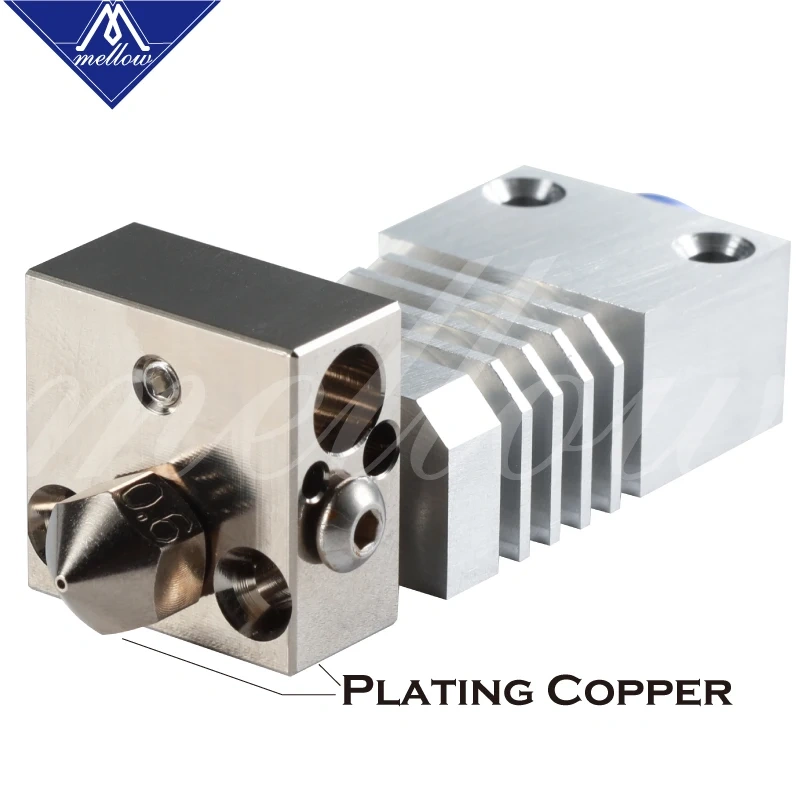

Set3:
Aluminum CR-10S PRO Cooling Block X 1
Titanium Heat Break X 1
High Precision Plated Copper Nozzle X 1
High Quality Plated Copper Heating Block X 1
Optional
12V/24V Heating tube X 1
HTNTCX 1
