1Description

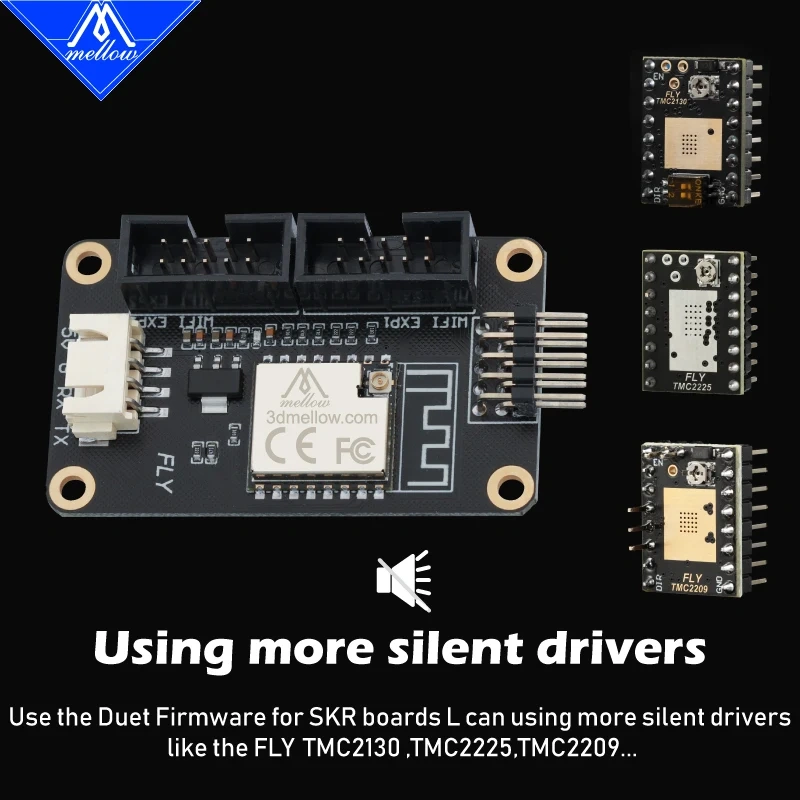

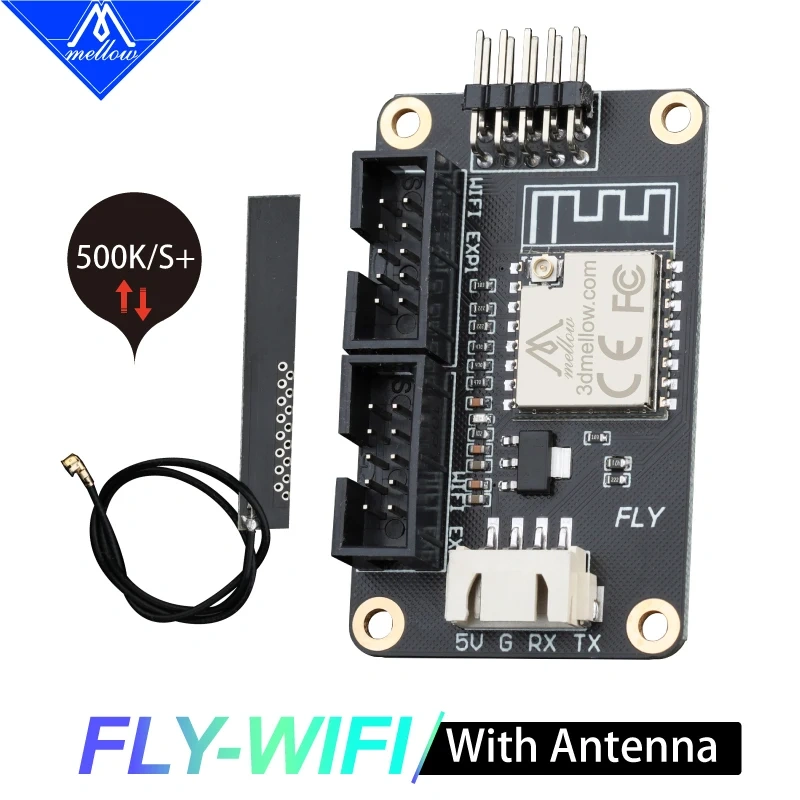

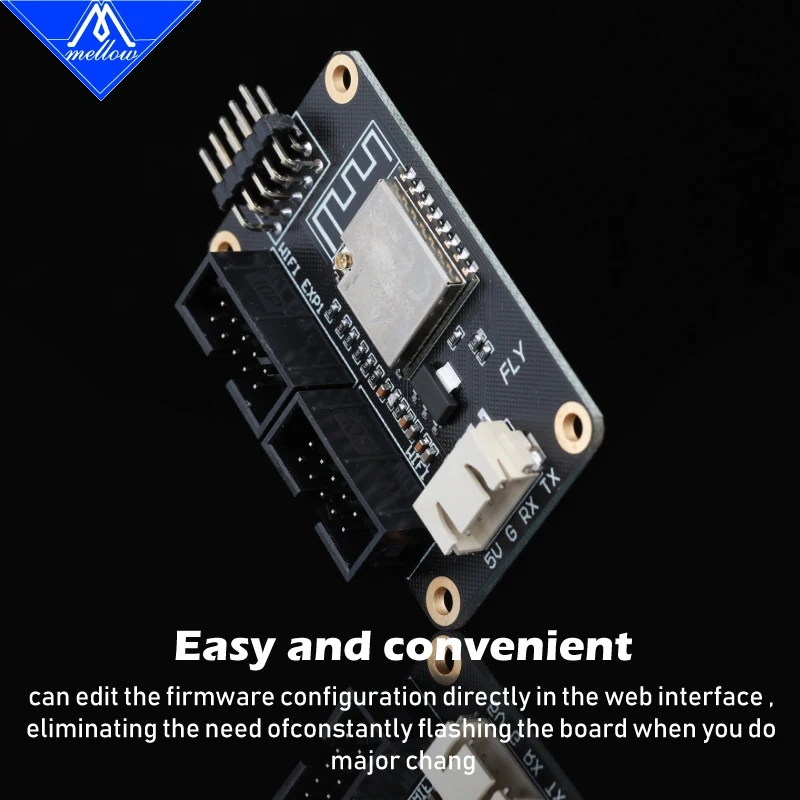

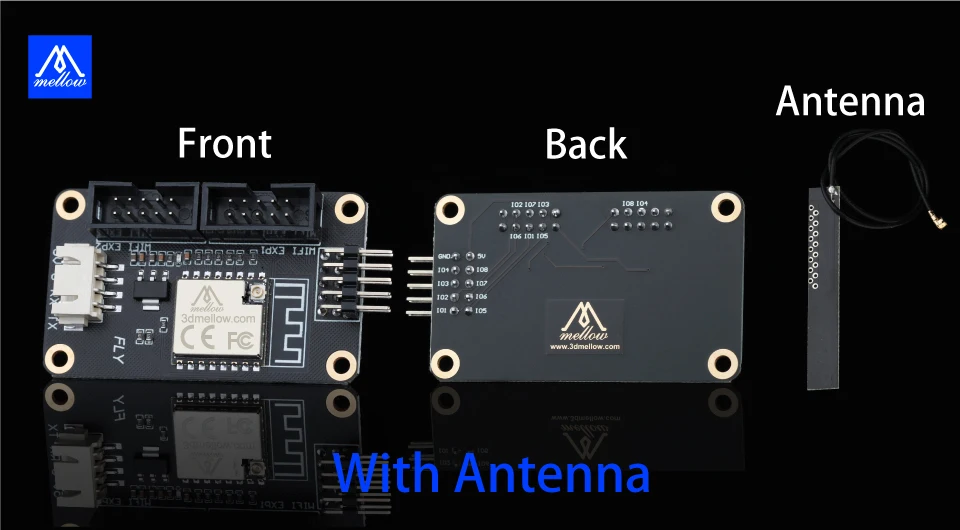

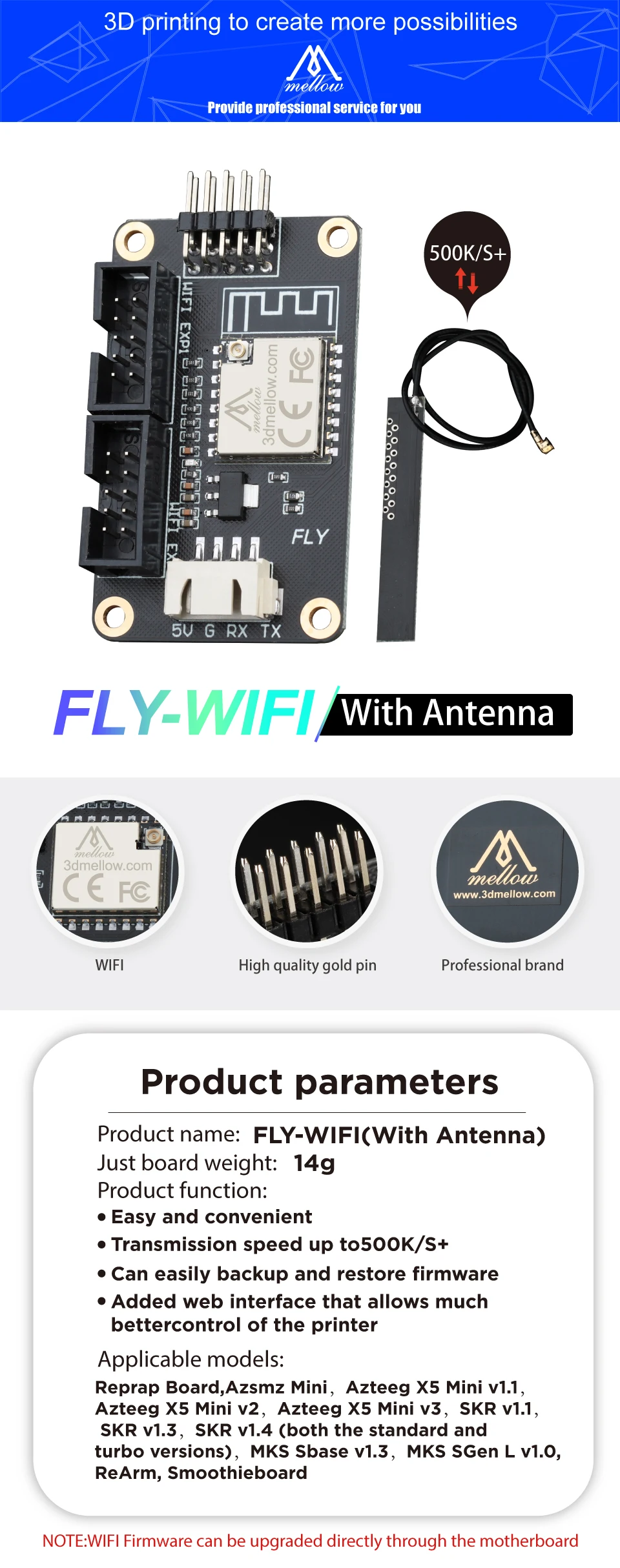

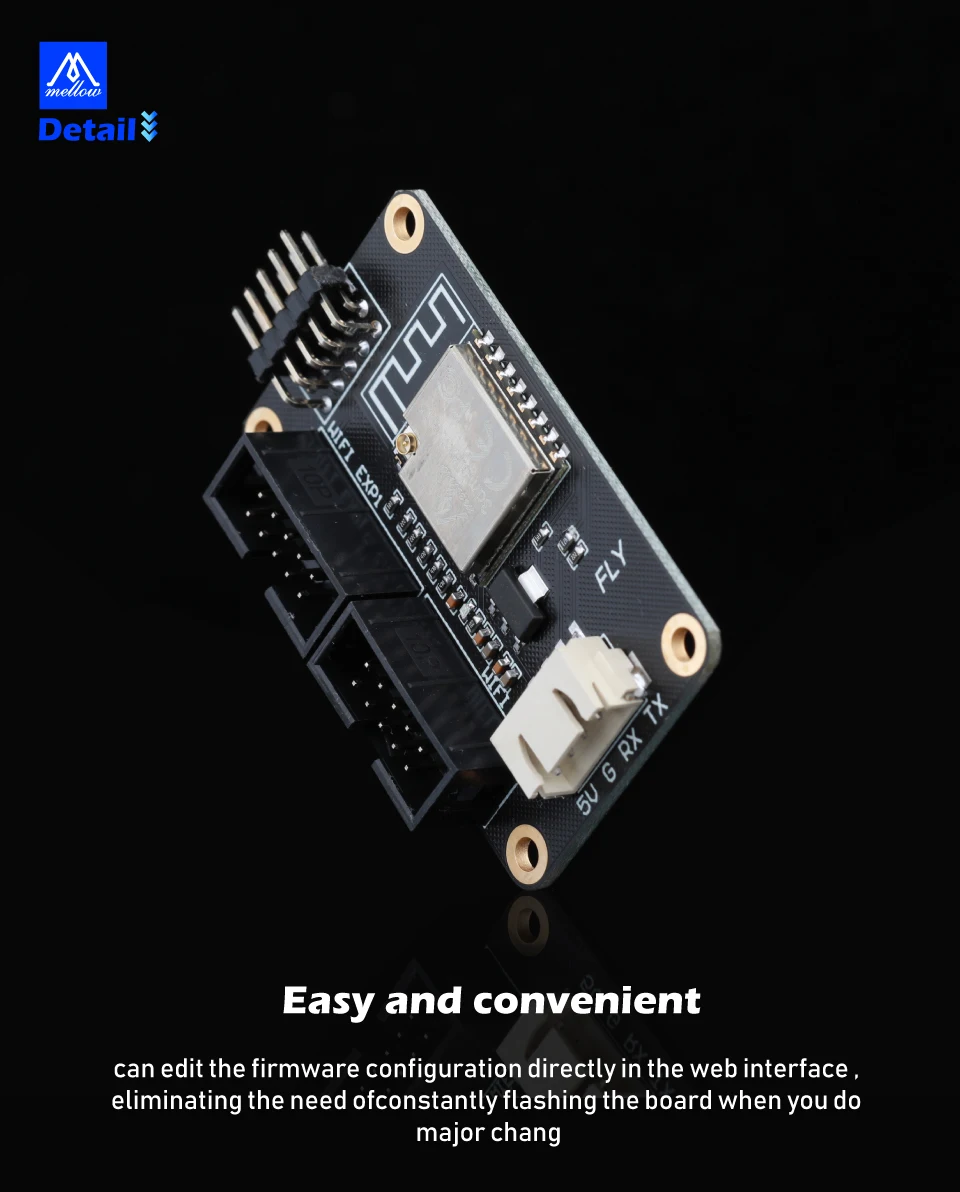

Use this wifi board to upgrade your motherboard to wireless network control. The transmission speed of the rrf network can reach up to 500K/S. It makes the operation of the 3D printer more convenient. The firmware can be modified through the web page. This has an antenna board, so it is convenient to install Go inside the metal box to enhance signal reception.
There is a tutorial at the bottom of the page. If you have any questions, you can leave a message to our NF team at this website and we will help you solve the problem.
https://github.com/FLYmaker/ESP8266-WIFI-Module
1Compatible
· FLY-F407ZG
· Azsmz Mini
· Azteeg X5 Mini v1.1
· Azteeg X5 Mini v2
· Azteeg X5 Mini v3
· SKR v1.1
· SKR v1.3
· SKR v1.4 (both the standard and turbo versions)
· MKS Sbase v1.3
· MKS SGen L v1.0
· ReArm
· Smoothieboard

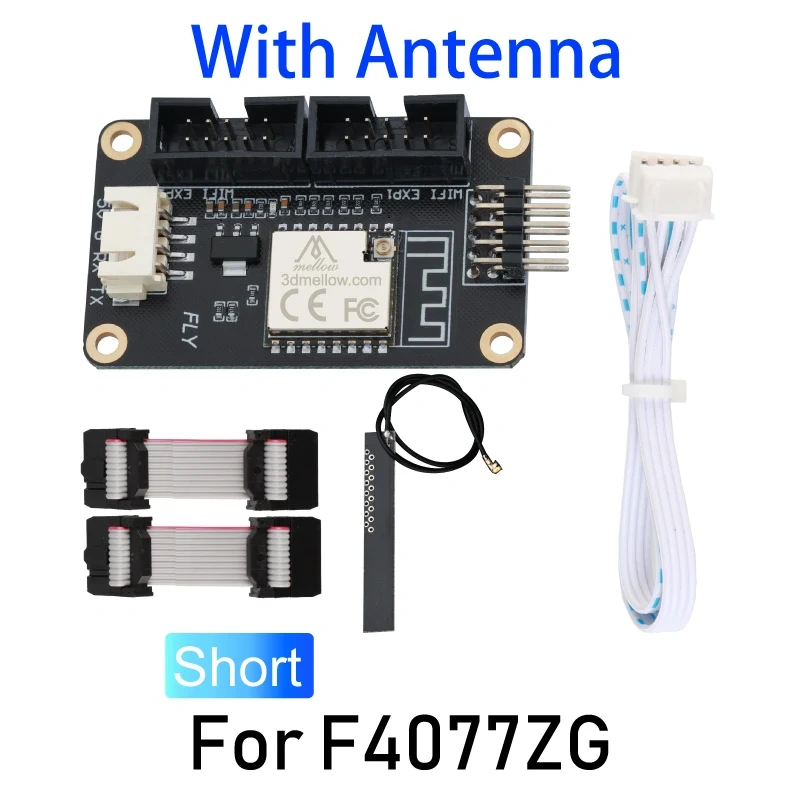

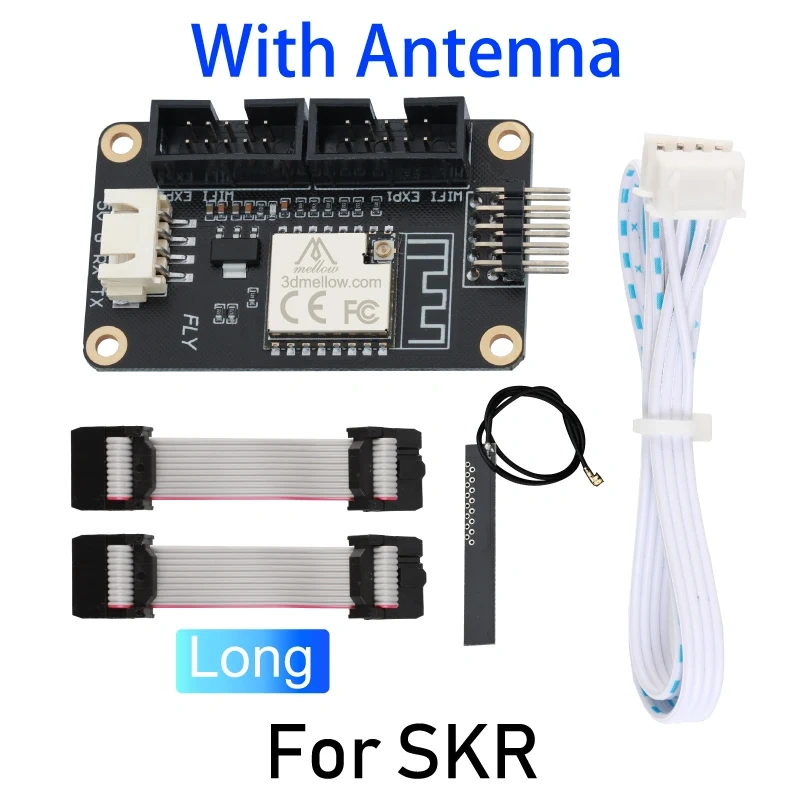

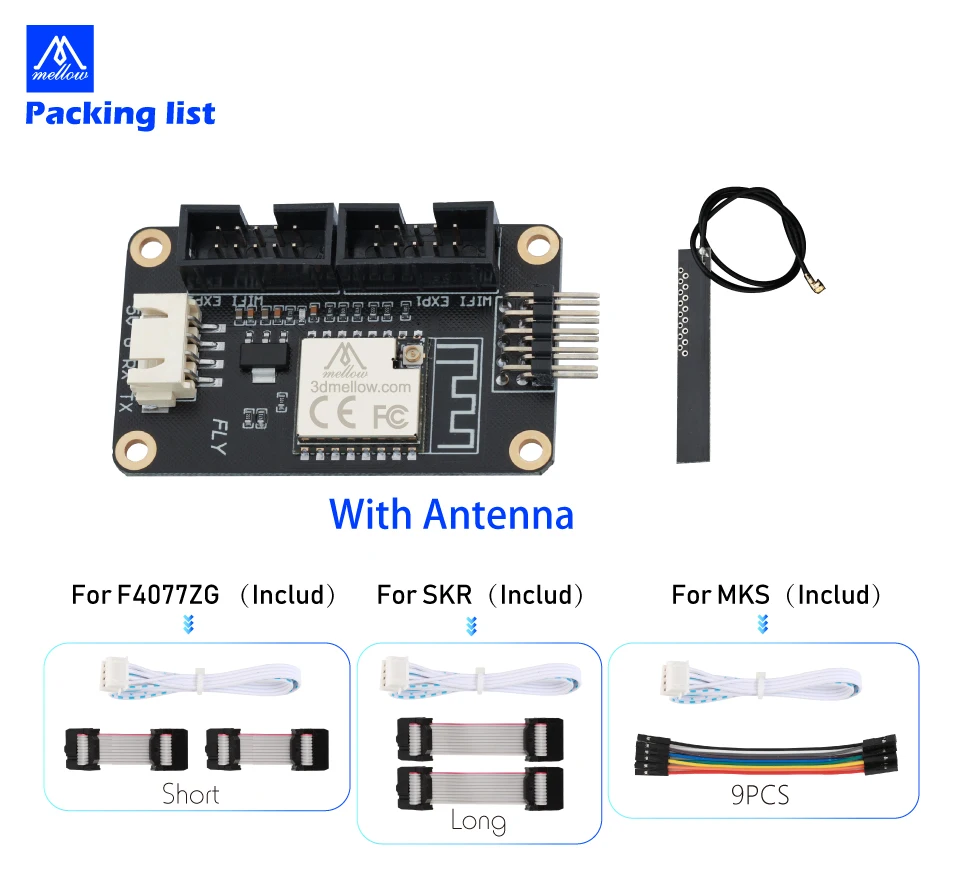

Packege included

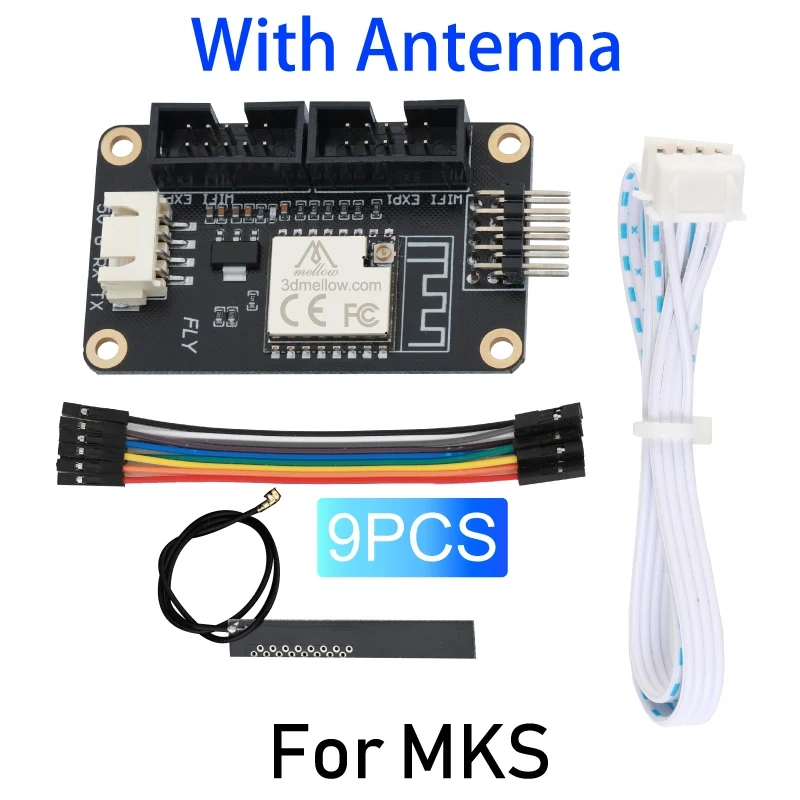

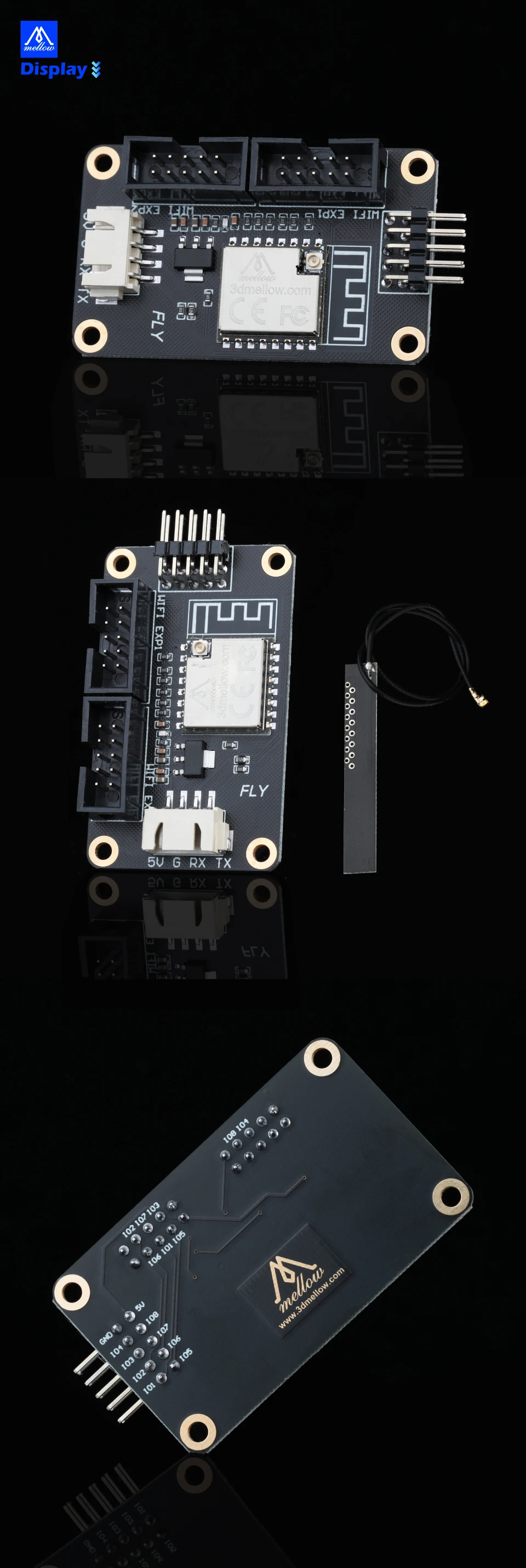

1*Set FLY WIFI V1.0 Antenna Board
?

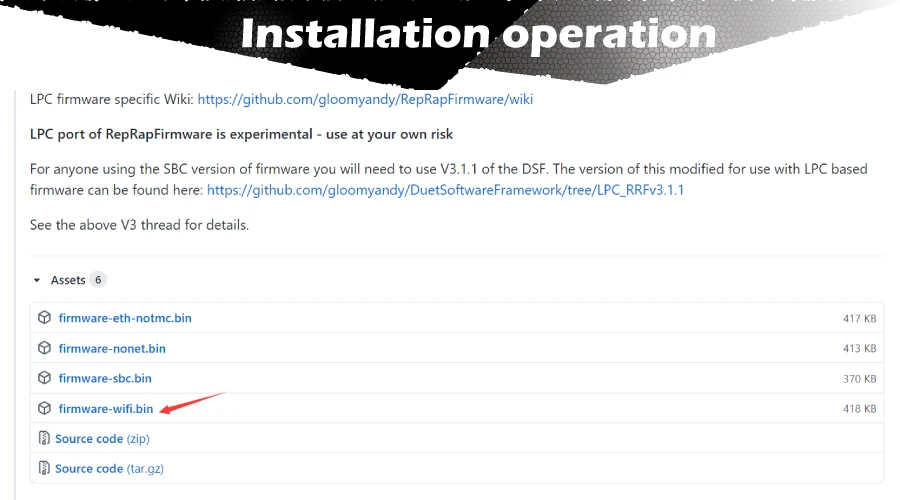

Download motherboard firmware and update motherboard firmware (There are all the files that need to be downloaded under this connection: https://github.com/FLYmaker/ESP8266-WIFI-Module)
Please rename the downloaded firmware-wifi.bin to firmware.bin

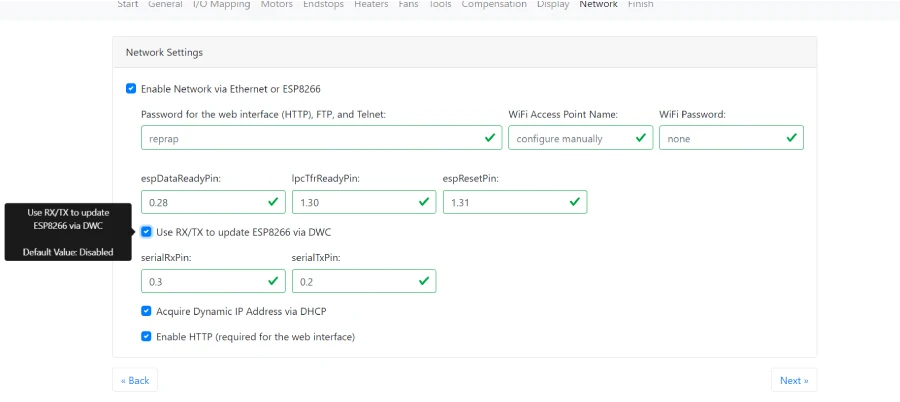

If you want to update the wifi module firmware, please tick: Use RX/TX to update ESP8266 via DWC

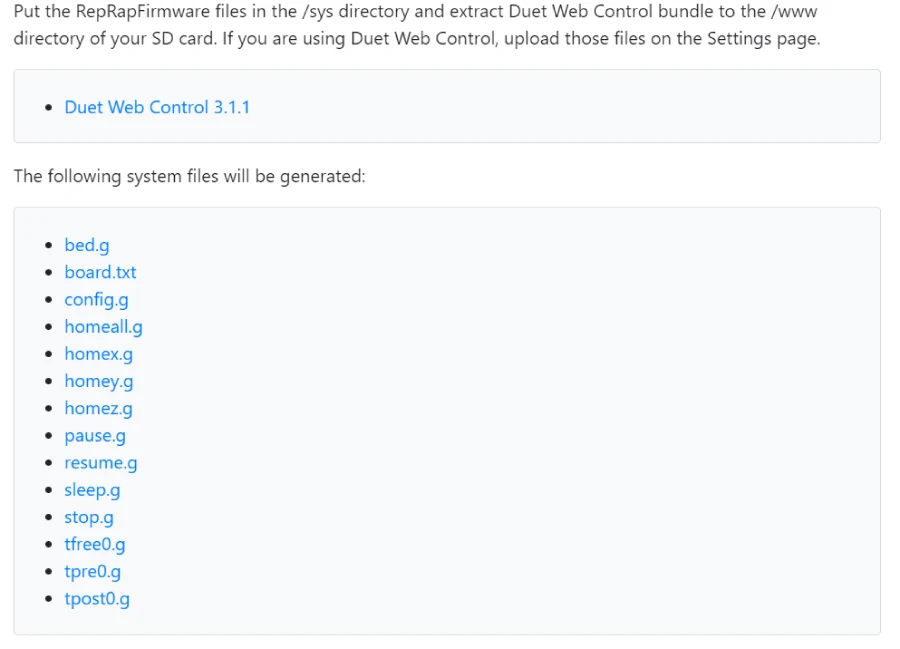

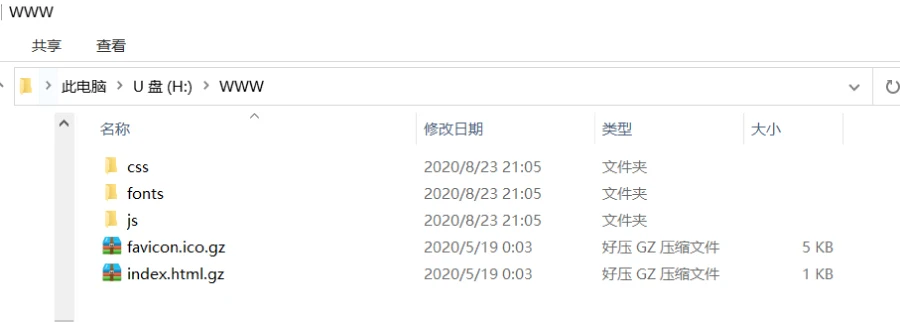

If you configure for the first time, please download Duet Web Control 3.1.1 and unzip it into the WWW folder of the memory card

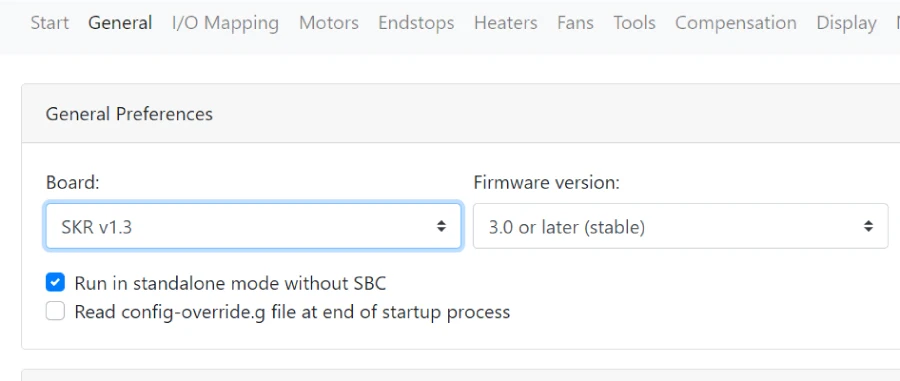

Unzip the config file and put the SYS folder into the sd card directory:
Create a new gcode folder to the U disk directory
?

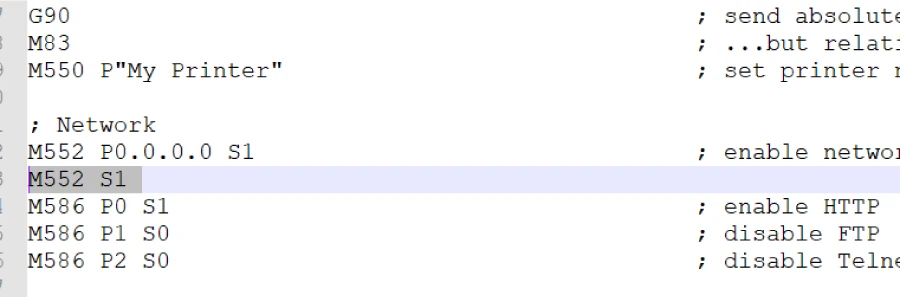

Open the sys folder and edit config.g: add M552 S1 (automatically turn on wifi after the motherboard is started)
After saving, insert the sd card into the motherboard and connect the motherboard usb port to the computer
Open pronterface.exe to connect to the motherboard

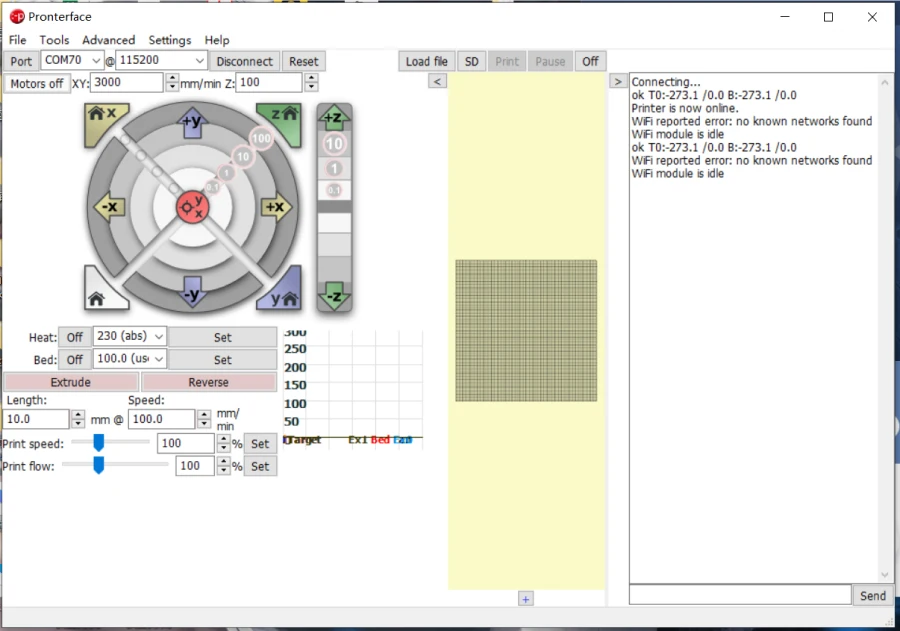

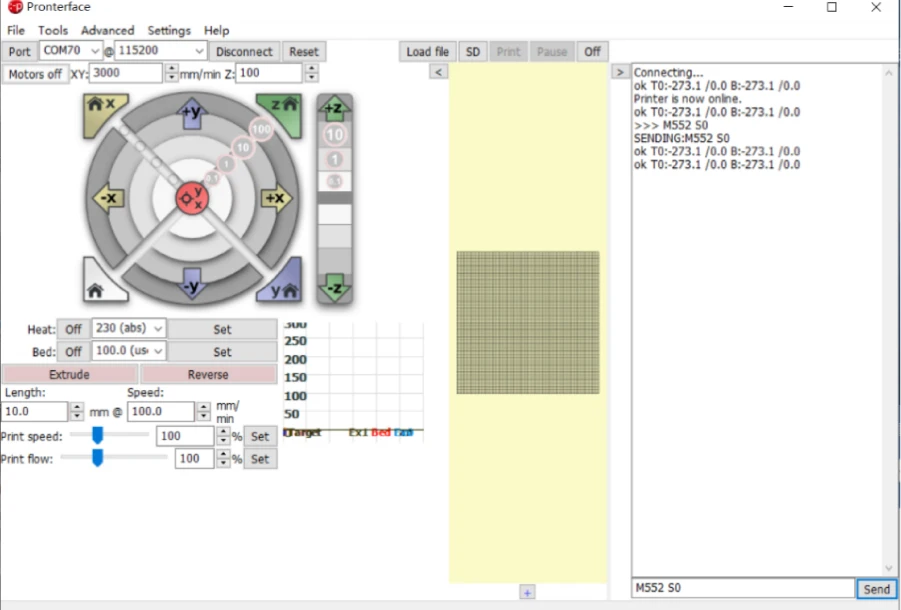

Send M552 S0 command to put wifi in idle mode

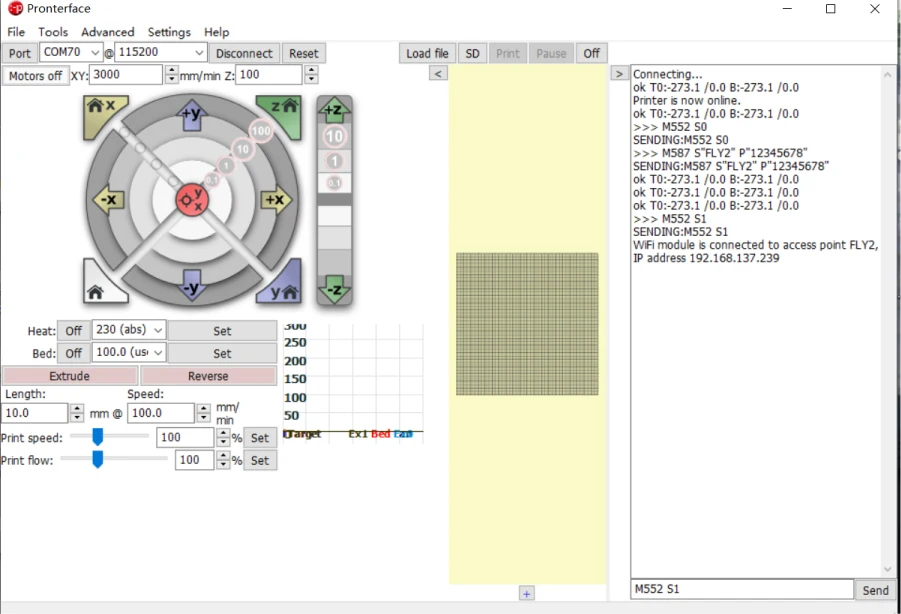

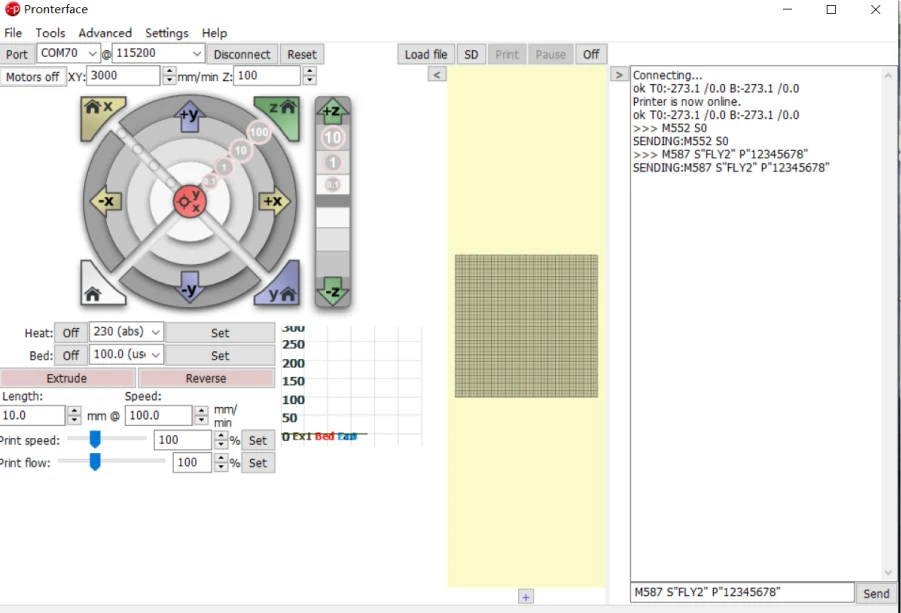

Send M587 S"your-network-ssid" P"your-network-password" command (After entering, the system will automatically remember the WiFi name and password) If your wifi password contains English lowercase, please add (') before the letter to configure according to the following example your-network-ssid: FLY2 your-network-password :fly12345 M587 S" FLY2" P"'f'l'y12345"

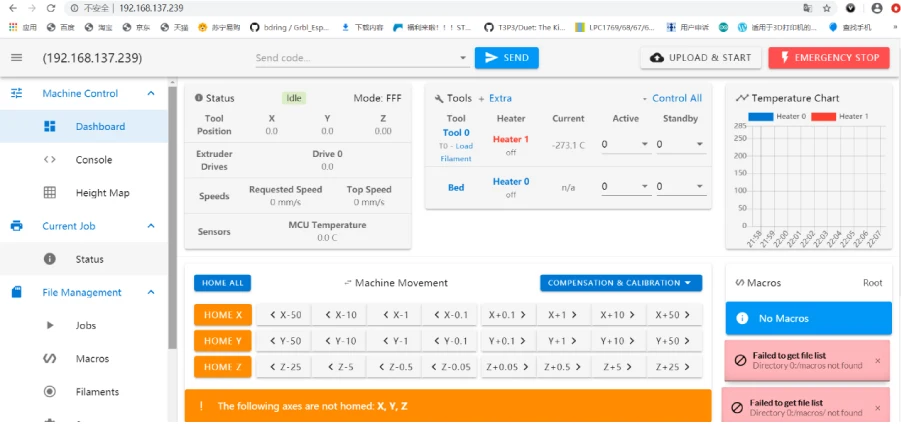

Then send M552 S1, turn on the network connection My network IP is 192.168.137.239, enter it into the browser
Then send M552 S1, turn on the network connection My network IP is 192.168.137.239, enter it into the browser
Wifi firmware download link: https://github.com/gloomyandy/DuetWiFiSocketServer/releases

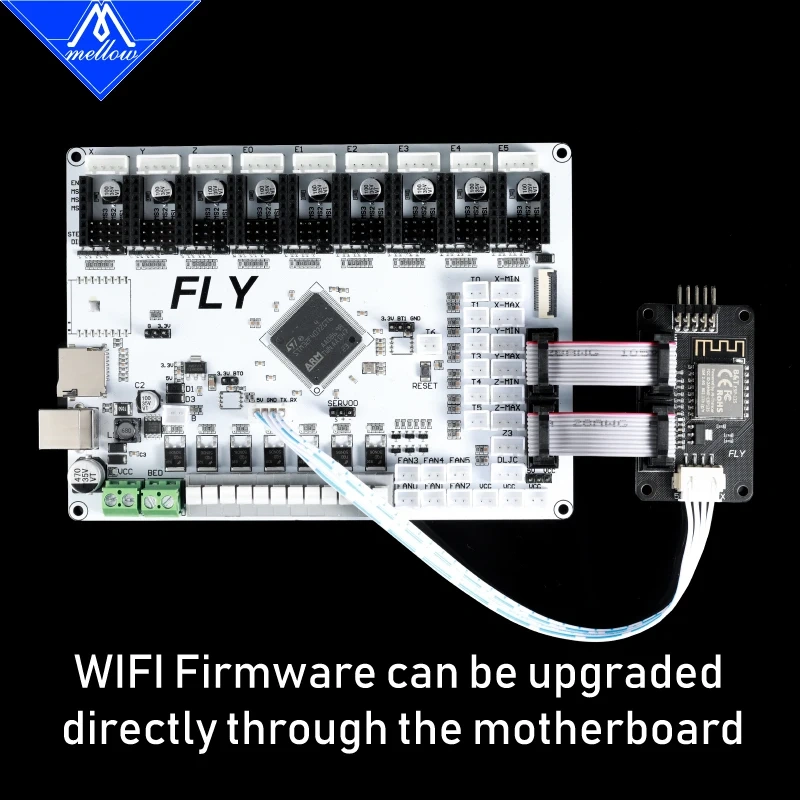

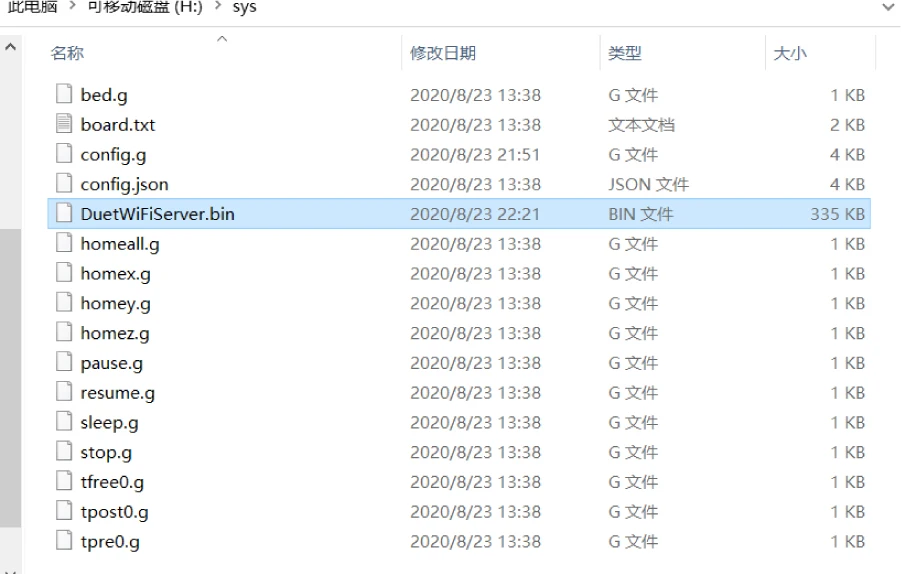

Please put the DuetWiFiServer.bin file into the SYS directory of the SD card

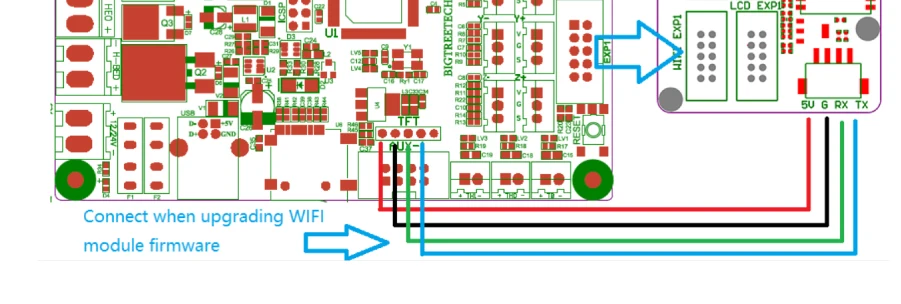

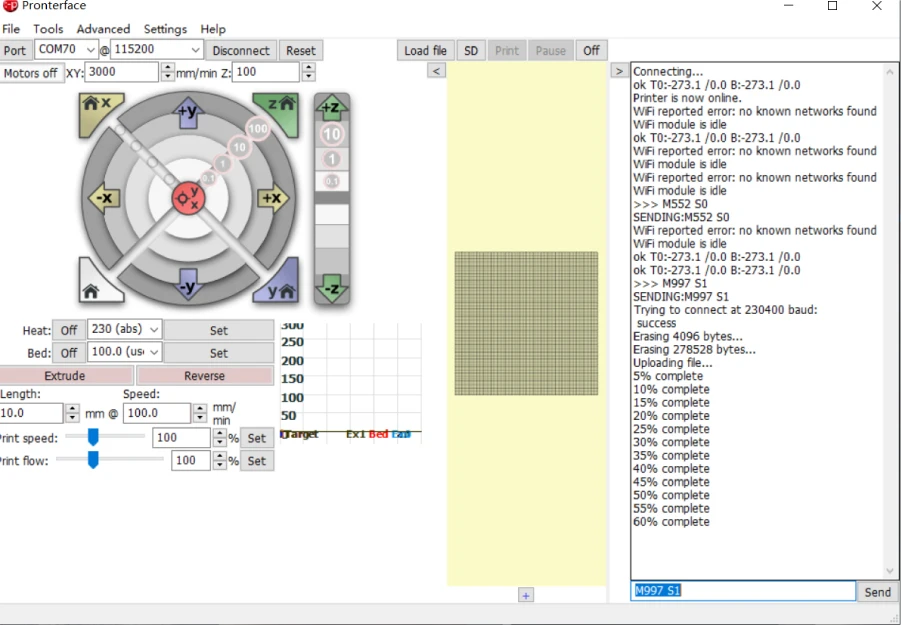

Insert the sd card back to the motherboard and open pronterface.exe Send command M552 S0 to put wifi in idle Send M997 S1 to update WIFI firmware After the update is complete, enter M552 S1 to start connecting to wifi
