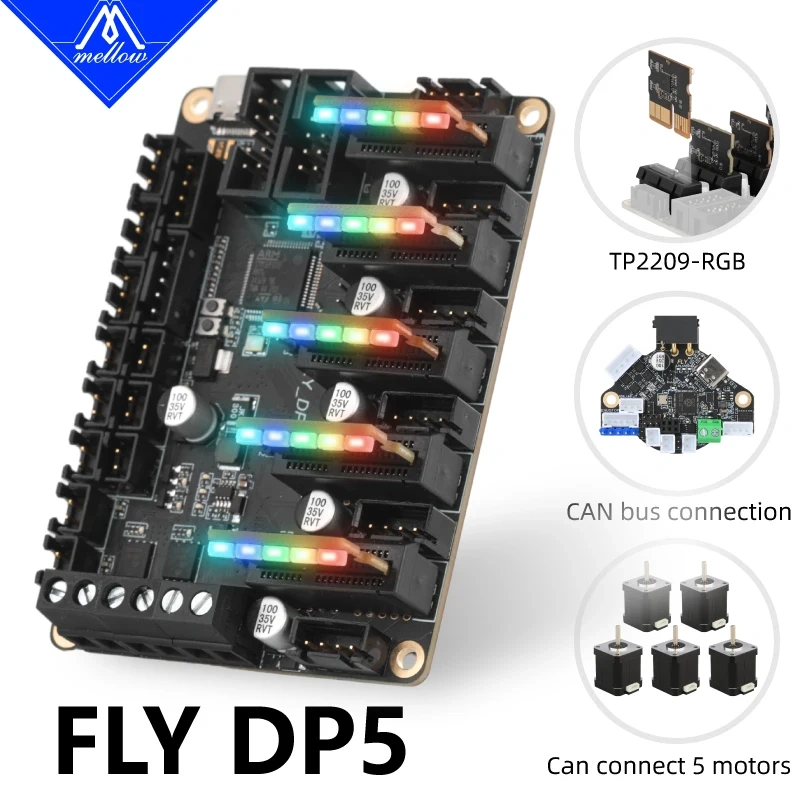

Mellow Fly-DP5 Control Board 32-bit ARM Chip, PCIe,RGB Driver,CAN Bus,DIAG Homing, and Klipper Support For DIY 3D Printer Parts

Mellow work team

The Fly-DP5 control board presents a distinctive choice for DIY enthusiasts seeking personalized modification options. This board stands apart from the D5 version with its unique features, especially the inclusion of a PCIe slot designed to prevent reverse insertion and the addition of an RGB driver for a diverse range of controllable lighting colors.

Key Features:

Chip: Equipped with a 32-bit ARM Cortex-M0+ series STM32F072RBT6 main control chip, operating at a speed of 48MHz.

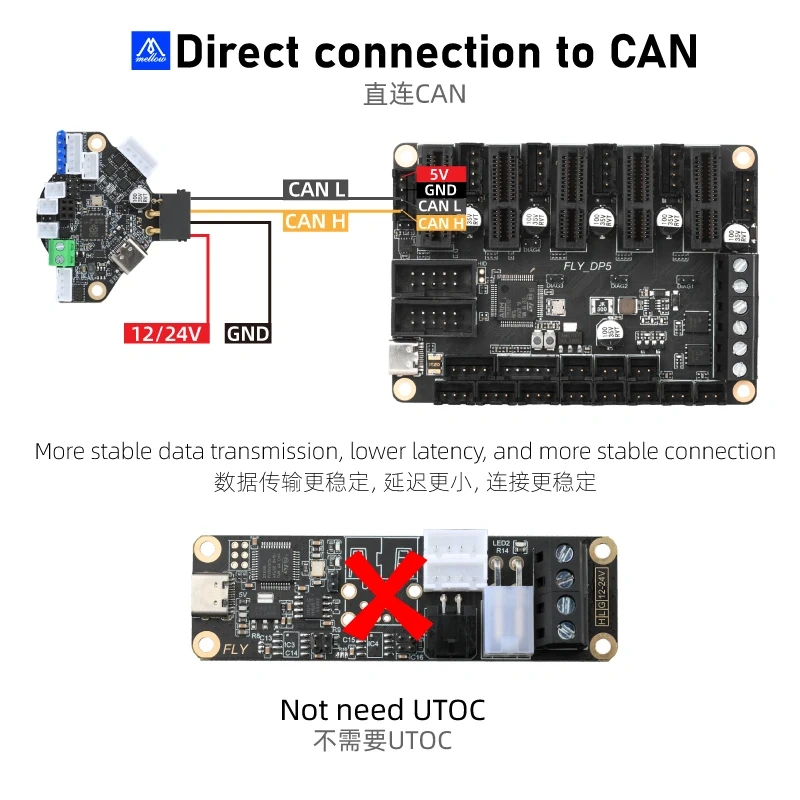

Reliable Data Transmission: Enhanced stability in data transfer is achieved through integrated CAN bus support, reducing latency and ensuring continuous connectivity.

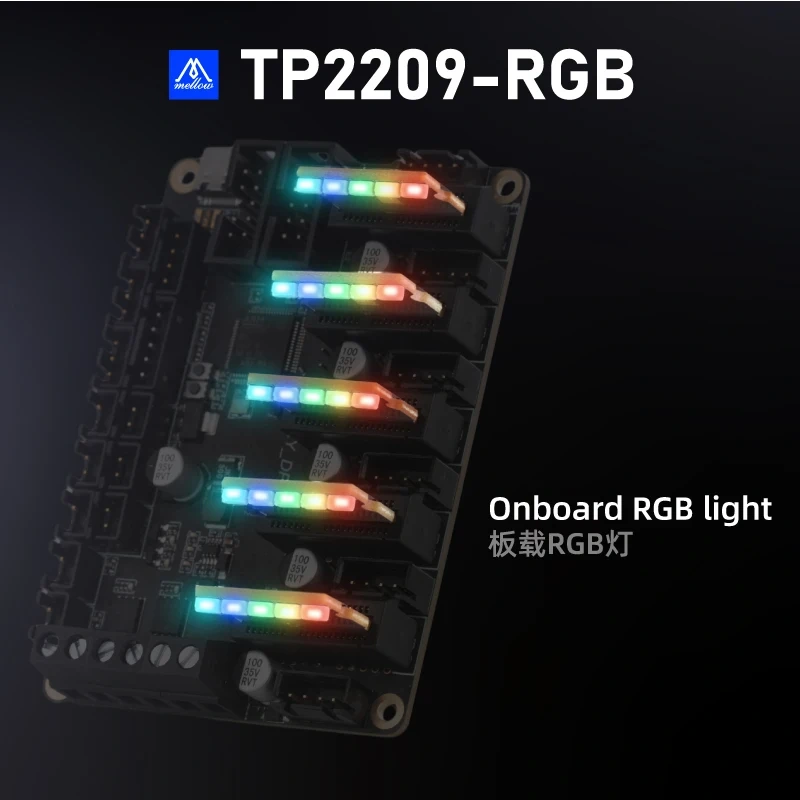

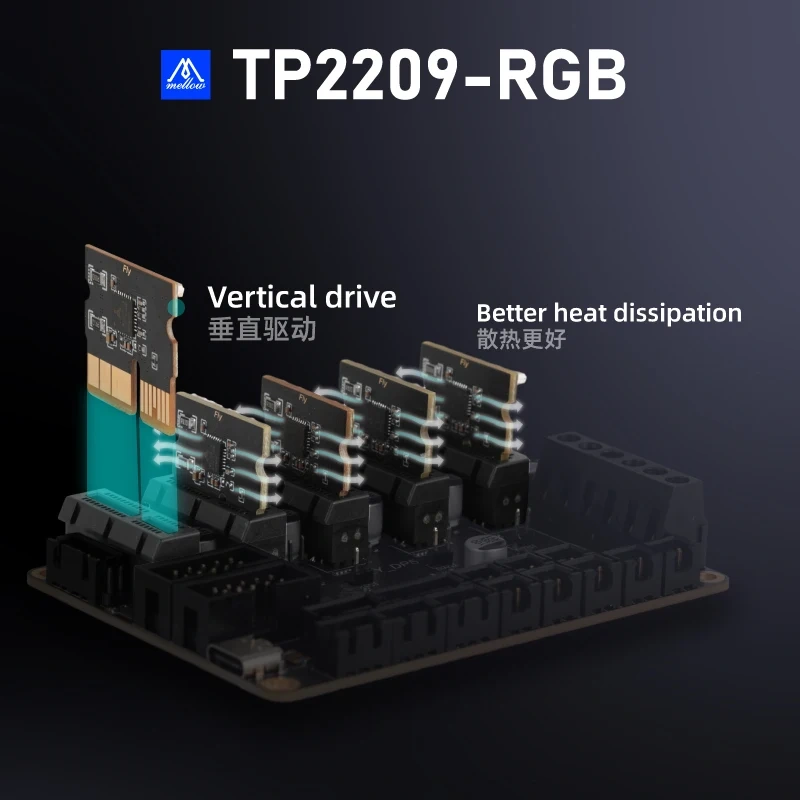

Multifunctional Driver Compatibility: Designed to be compatible with drivers such as TP2209-RGB and TP5160-rgb.

Simple DIAG Homing: The onboard DIAG feature pin allows for easy plug-and-play with jumper caps for seamless infinite homing support.

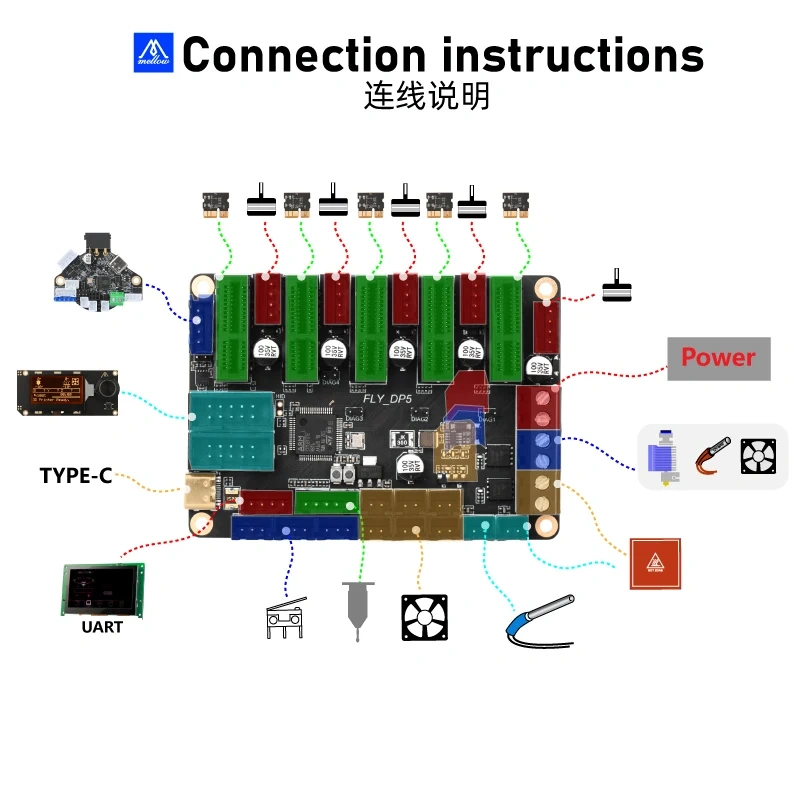

Expandable Interfaces:

Leveling: Fully supports servos, BLtouch, and PL08.

UART X1: Facilitates convenient data communication.

12864 X1 Display Interface: For clear and connected control.

Fans: Manages and maintains machine temperature with 2 controllable two-wire fans, 2 parallel fans, and 2 normally open fans.

Temperature Sensors: Dual-channel NTC 100K for precise temperature monitoring.

Universal Structure Support: Whether using Cartesian, Delta, Kossel, Ultimaker, or CoreXY setups, the Fly-DP5 offers comprehensive support.

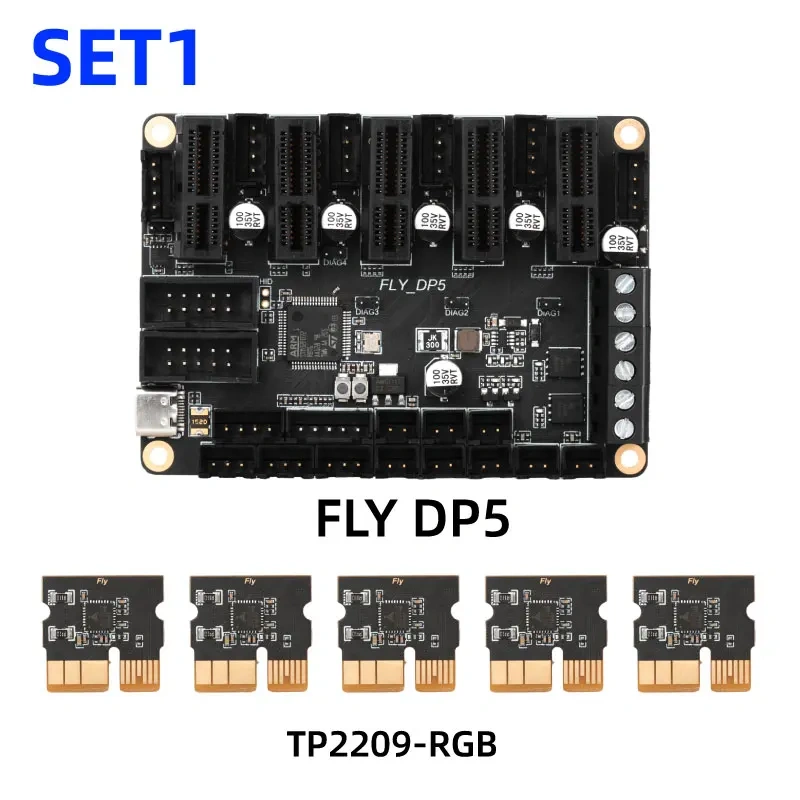

Set1

1*Fly-DP5 V1.0 Board

5*TP2209-RGB

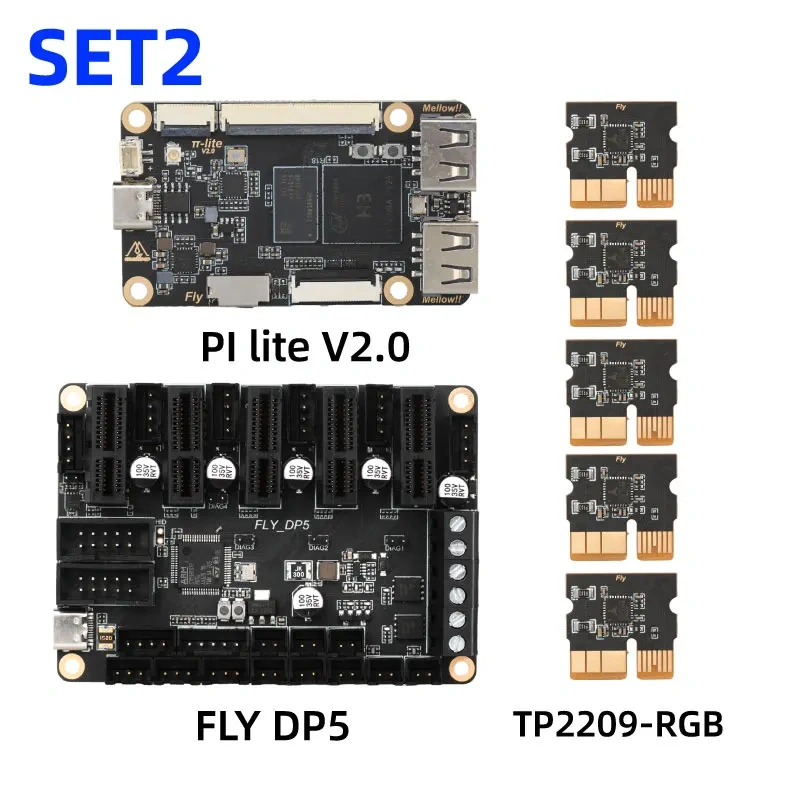

Set2

1*Fly-DP5 V1.0 Board

5*TP2209-RGB

1*Fly-Lite2 Board

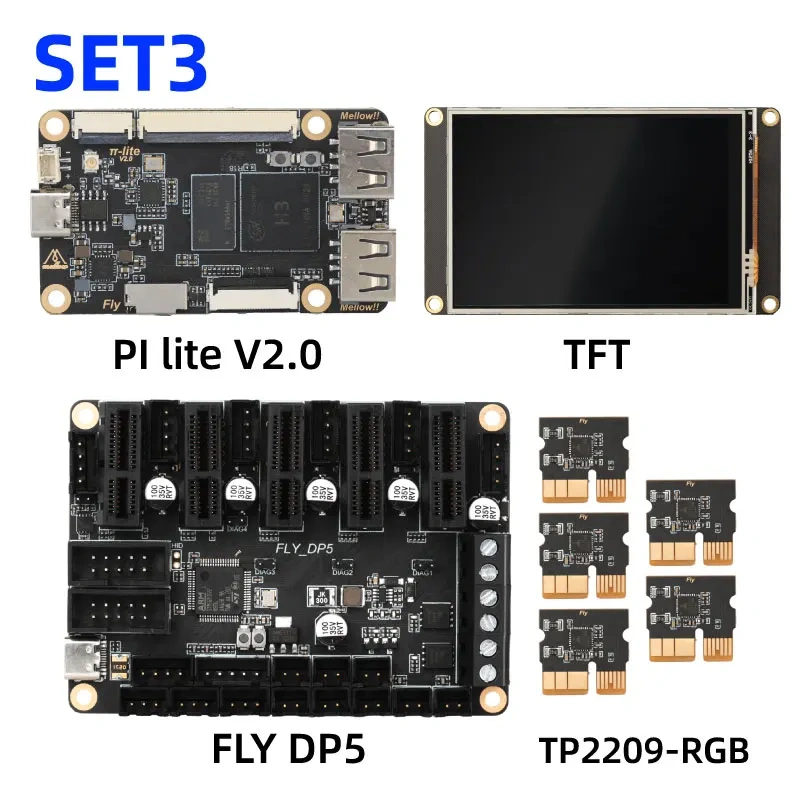

Set3

1*Fly-DP5 V1.0 Board

5*TP2209-RGB

1*Fly-Lite2 Board

1*Fly 3.5TFT V1.0 Screen
