Description:
*Heat tube:12V/24v 40W,length 1 meter
*Thermistor:100K NTC B 3950 ±1% ,length 1 meter
or
Thermistor cartridges K type thermocouple ,length 1 meter
*This 3D Printer V6 Hotend is applied for 1.75mm Filament Long-Distance Filament Bowden extruder
Highlights:
Compact volume and no fan to occupy the space.
Abandon the general PC-used liquid cooling tubes,the extremely thin high temperature resistant silicon rubber tube is selected to ease the arrangement of wire.
It can work in extreme environments,such as working at temperatures up to 100 degrees or even higher in a chamber.
Compared with the air cooling hotend,the highly efficient liquid cooling can be effective for any currently available 3D printing materials.
Multiple and flexible mounting modes.
Compatible with all heat blocks and nozzles,so that you can do the upgrade and replacement by yourself for the desired combinations,such as replacing the latest copper alloy heating blocks and nickel plated copper alloy nozzles and so on.
The default configuration is sensor cartridges heating blocks that can be easily upgraded to PT100 sensor.It can work very easily over 400 degrees Celsius.The PT100 Upgrade kit is here
Plug and play,the default liquid pump and radiator has been installed with high efficiency,it can be used directly as long as the filling of cooling liquid.
The high quality tubes and fitting are choosed to minimize the leakage risk.

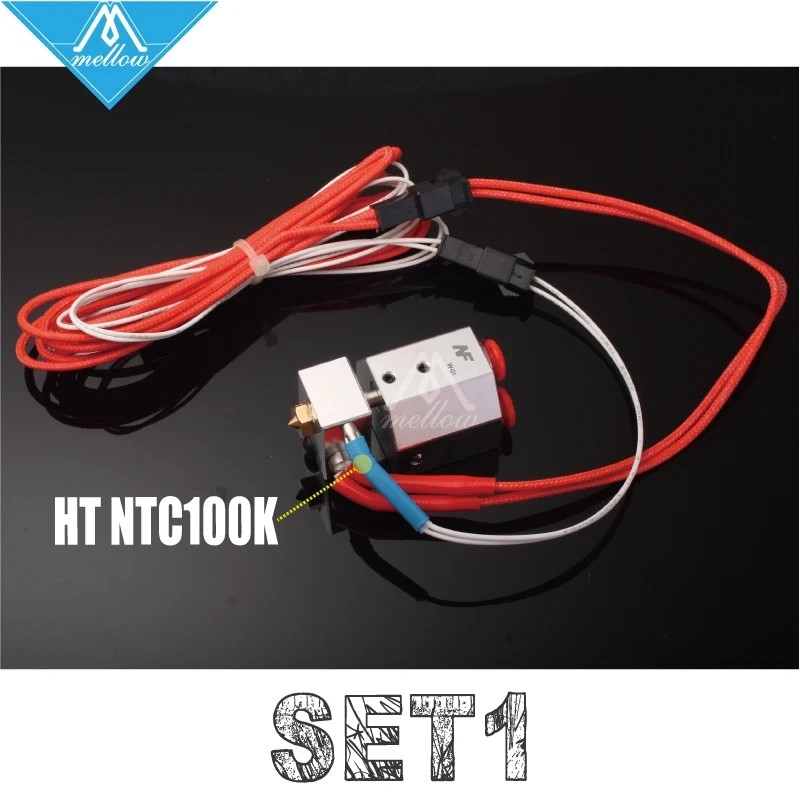

Set 1 Package Include:
1 x Aluminium cooling block
1 x Stainless Steel throat
1 x V6 Brass Nozzle(0.40mm)
1 x Aluminium Heater Block with screws
1 x 12V/24V 40W Simple replace heater cartridges
1 xSimple replace Thermistor cartridges NTC100K 300Cmax(choose 13 in marlin firmware)
Heatsink compound

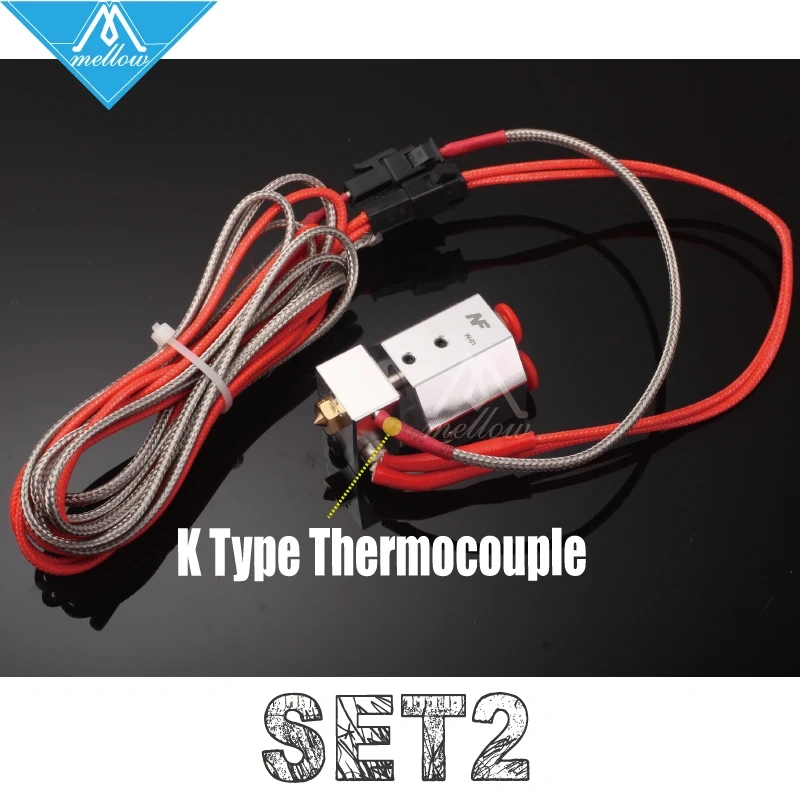

Set 2 Package Include:
1 x Aluminium cooling block
1 x Stainless Steel throat
1 x V6 Brass Nozzle(0.40mm)
1 x Aluminium Heater Block with screws
1 x 12V/24V 40W Simple replace heater cartridges
1 xSimple replace Thermistor cartridges K type thermocouple(Nozzle temperature:180℃-400℃)
Heatsink compound
