Newest Mellow LDO Orbitool O2S USB Tool Heat Board - For Orbiter Extruder V2.5 O2 USB Klipper Voron DIY 3D Printer Parts

1Description

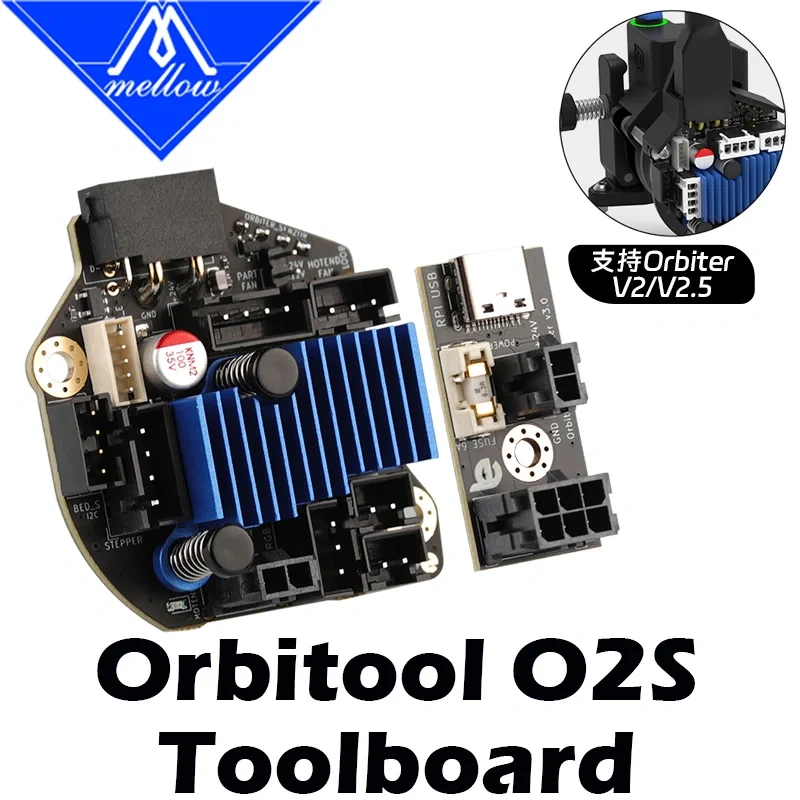

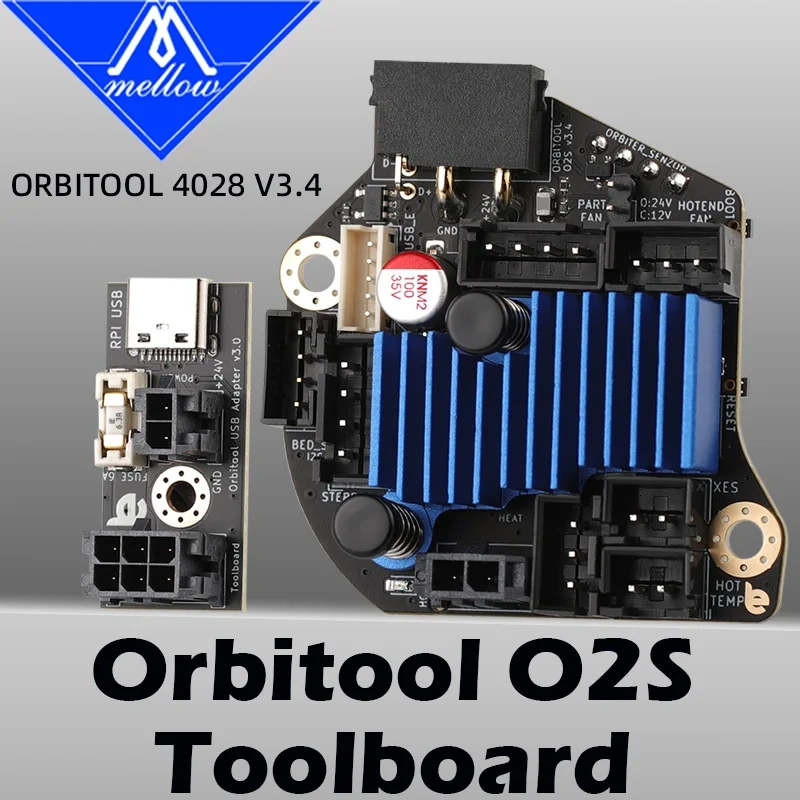

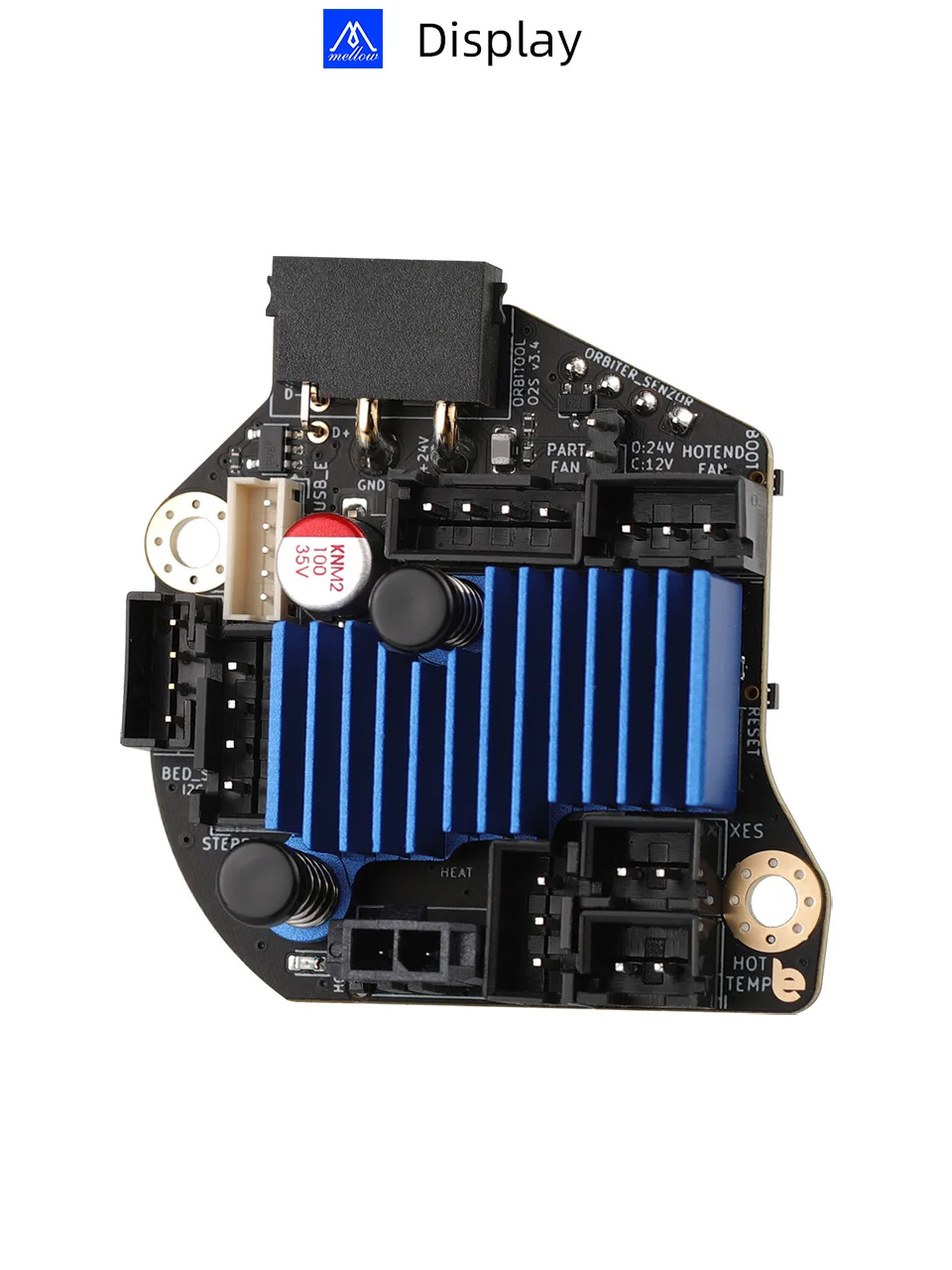

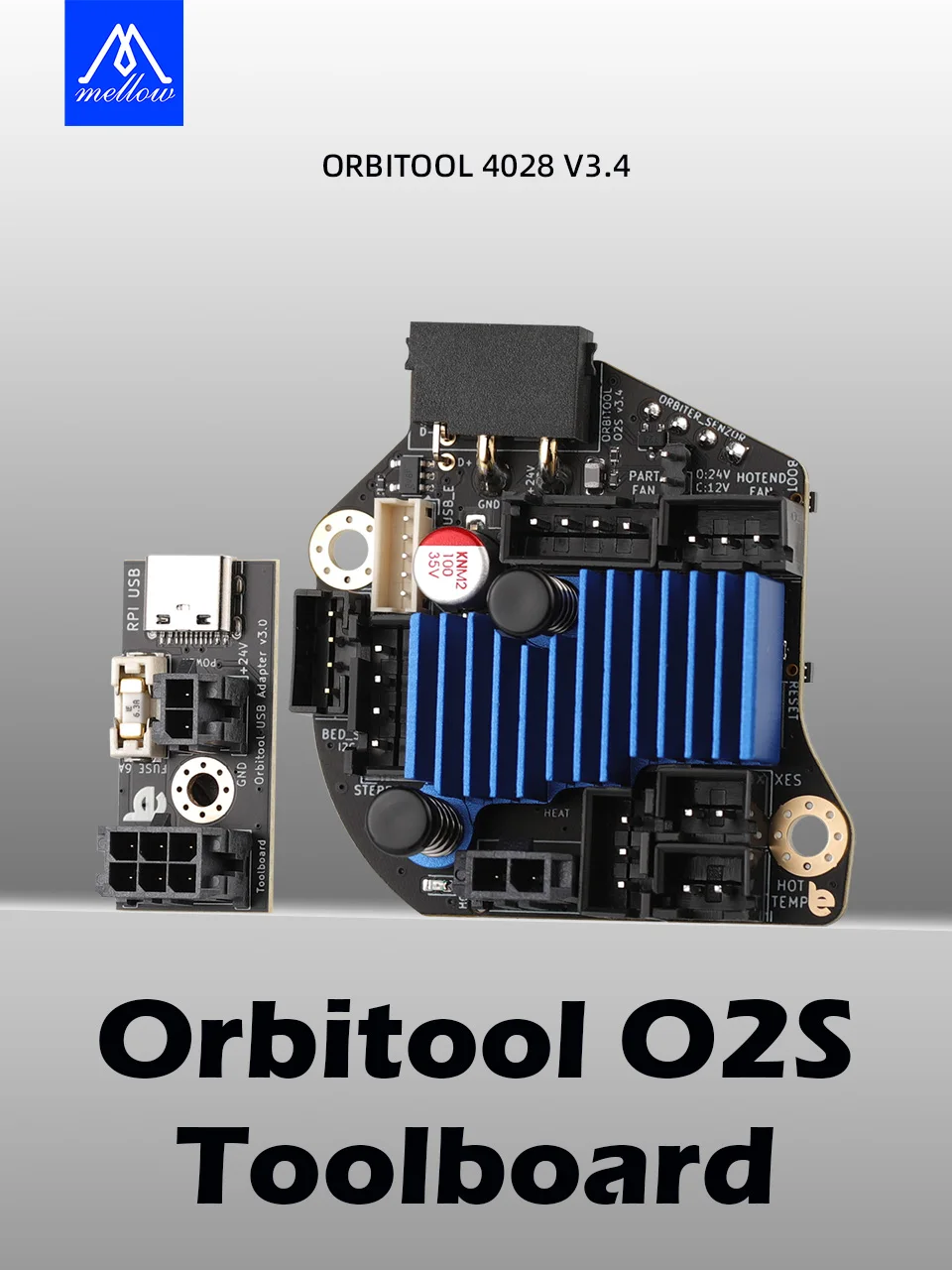

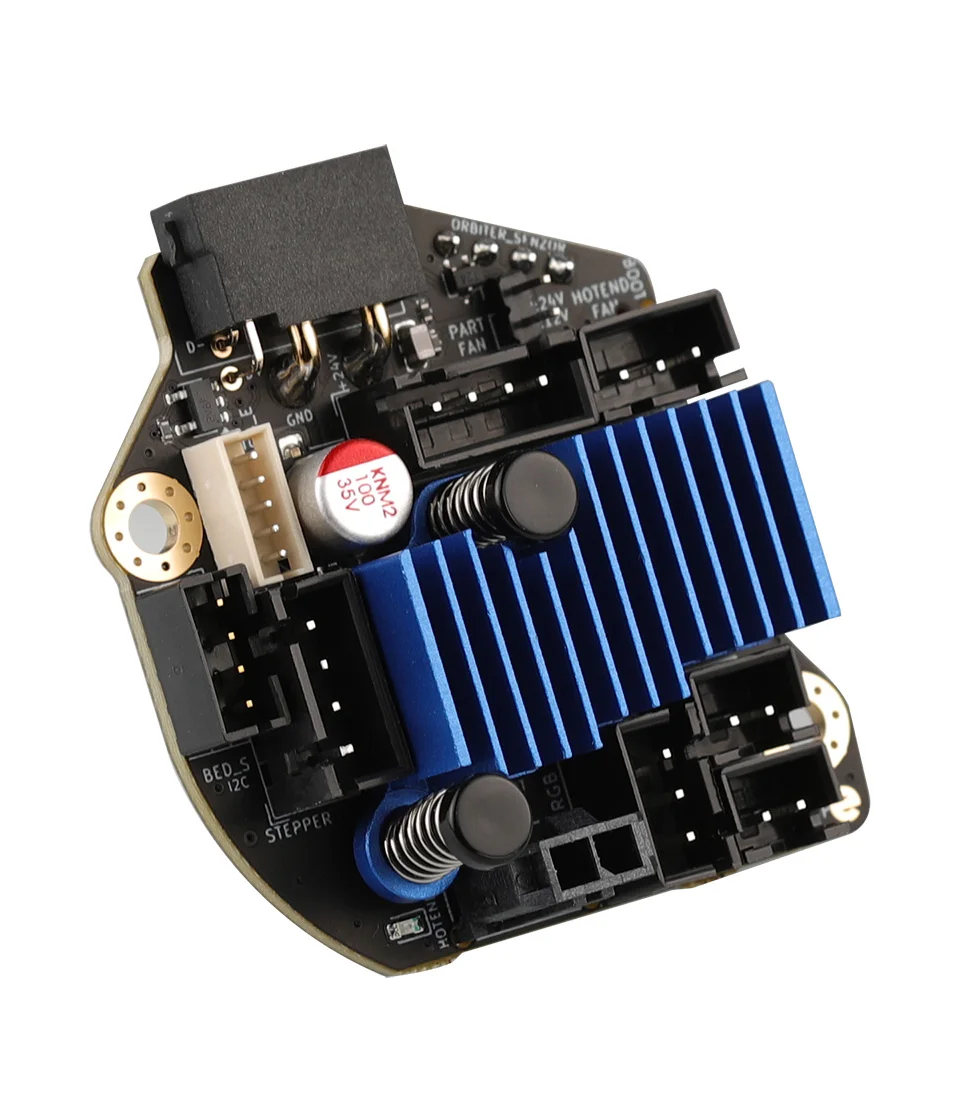

This is the second revised version of the Orbiter O2 toolboard.

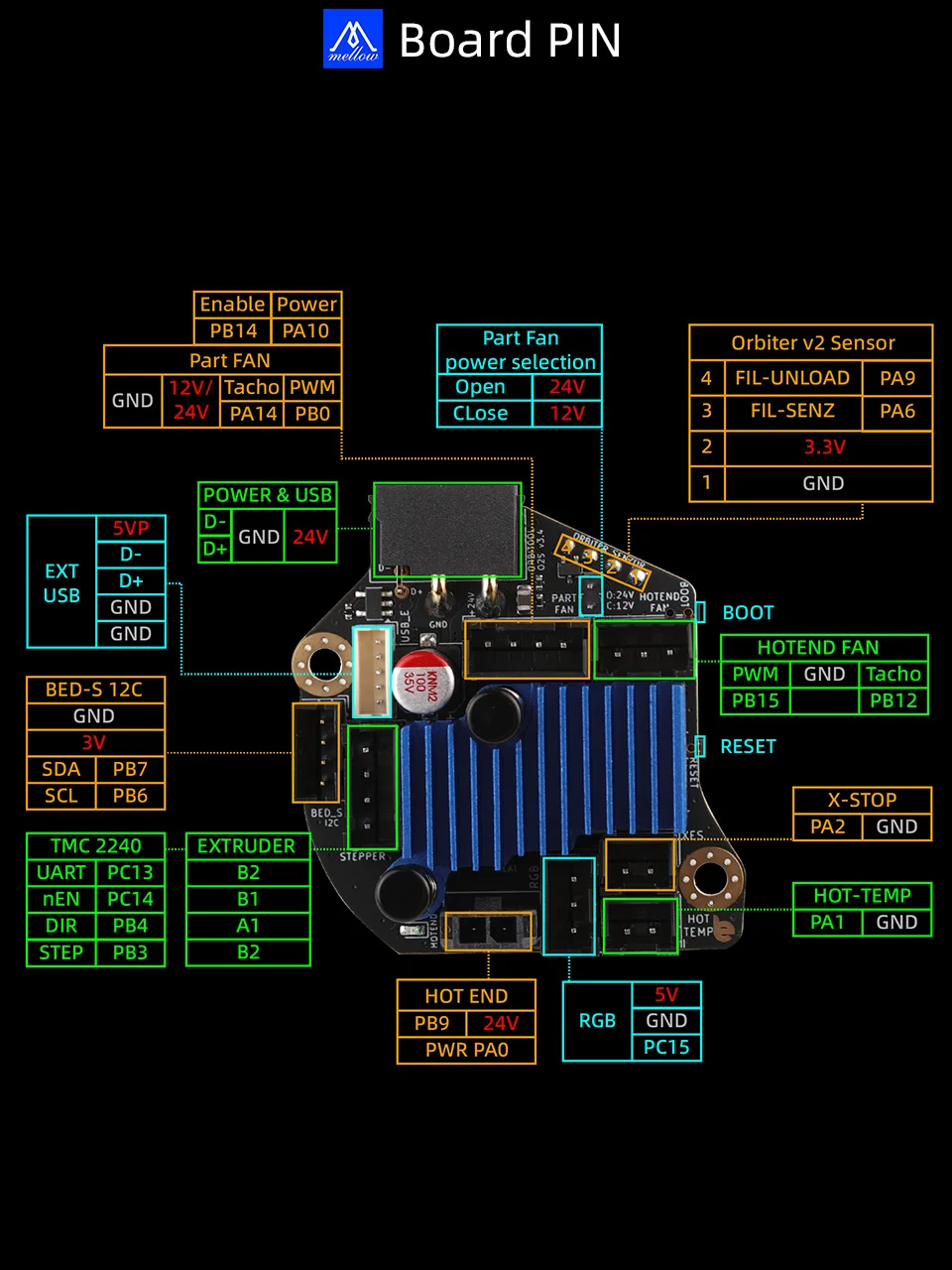

Some of the main features:

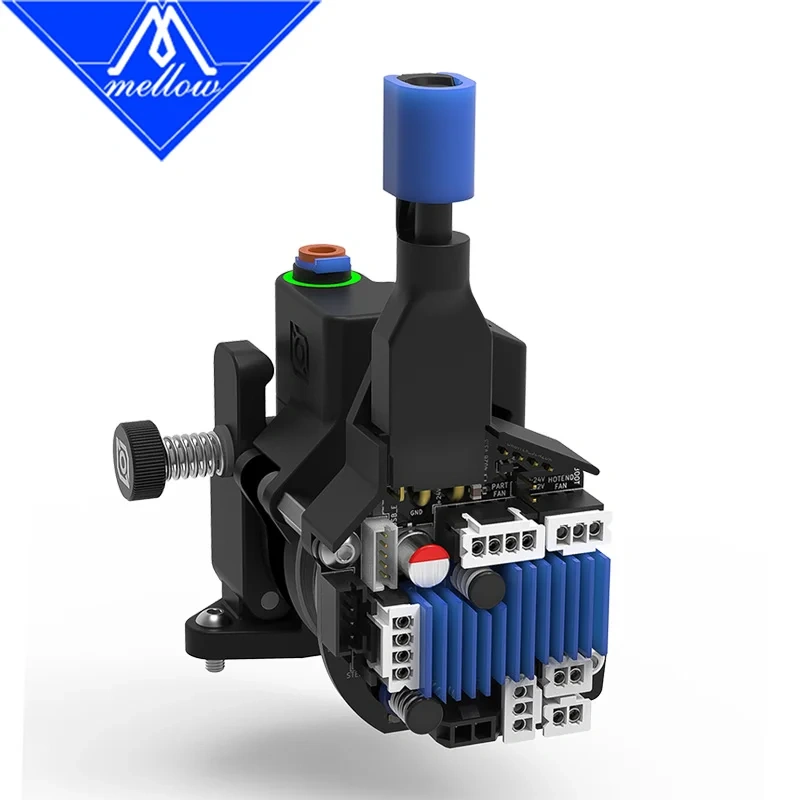

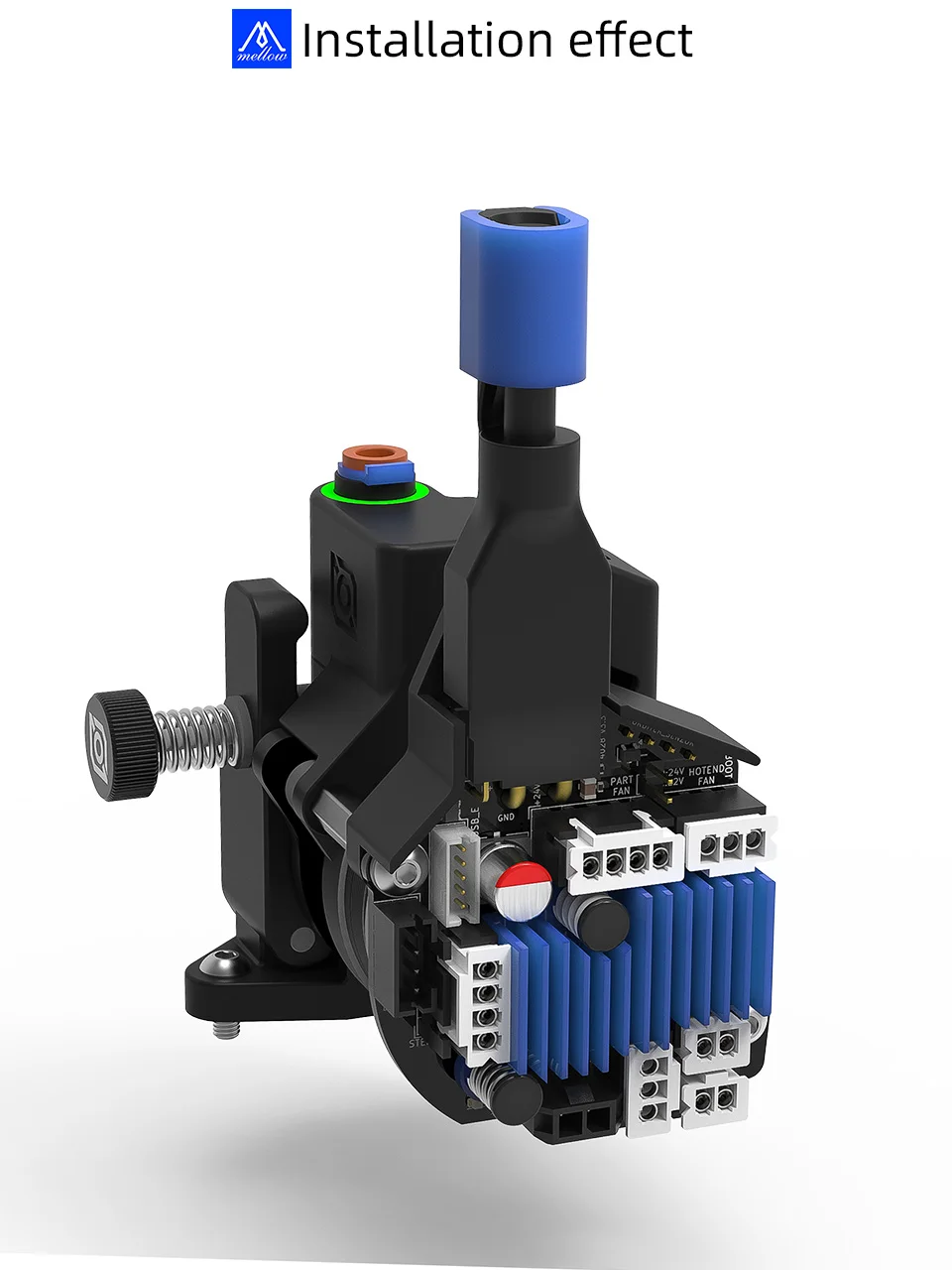

• Optimized for Orbiter v2, v2.5 shape and features, including orbiter sensor

• STM32F072 microcontroller running on 48MHz - full klipper support with automatic update possibility

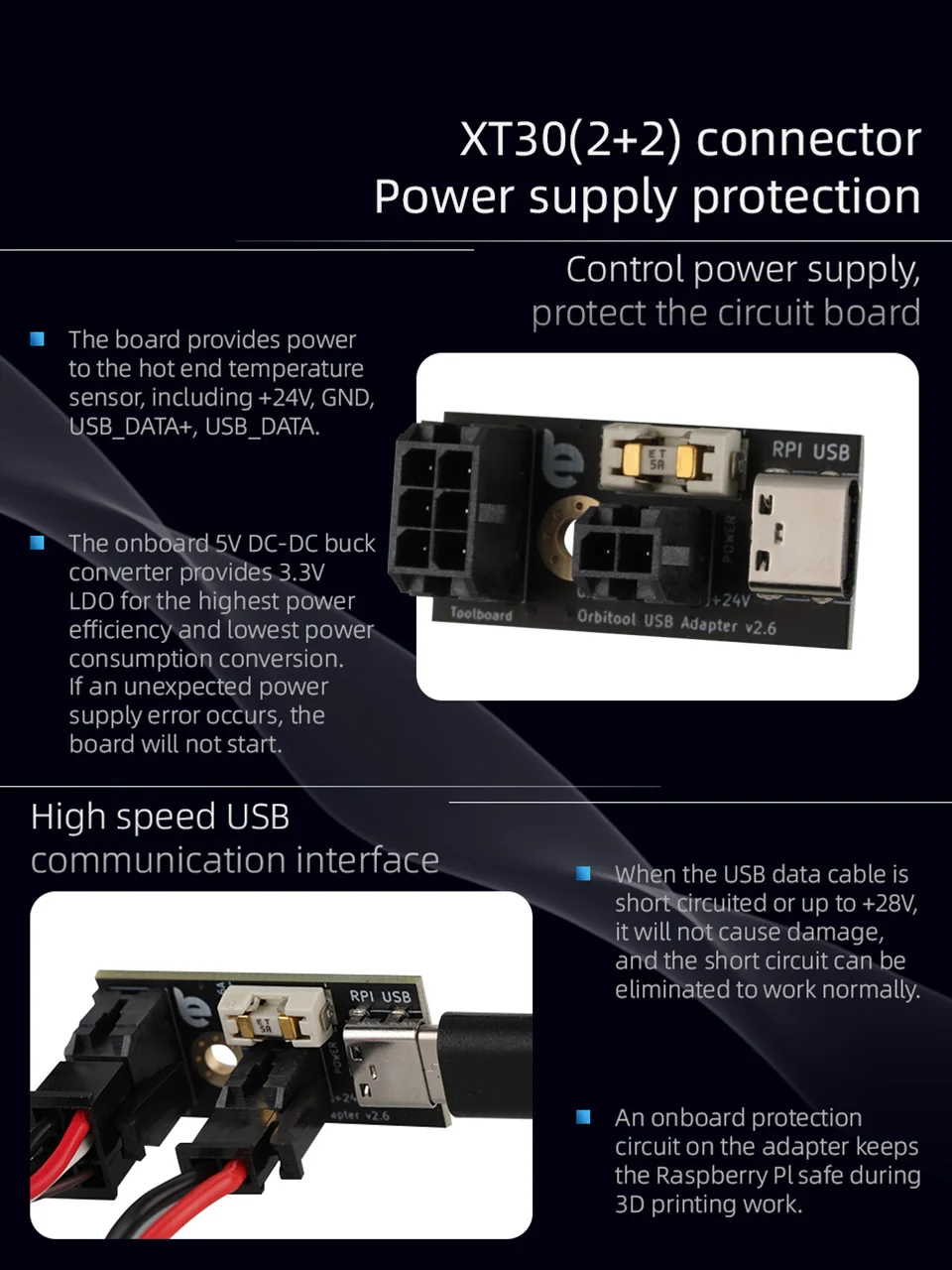

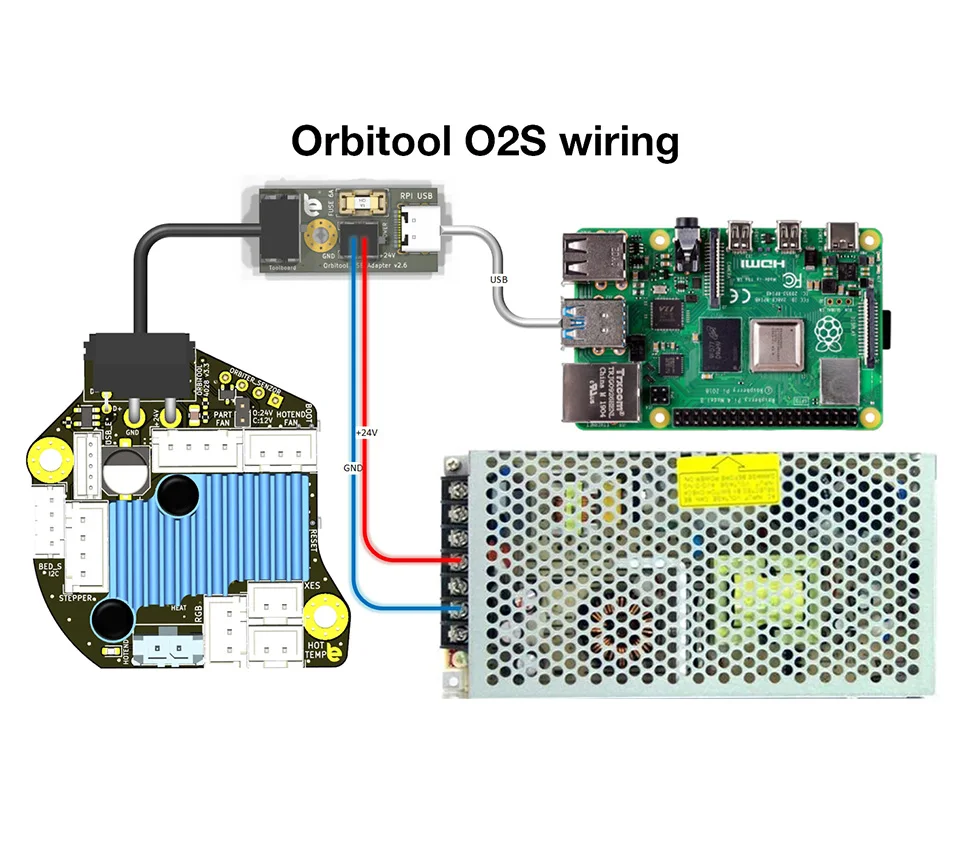

• Automotive USB communication with Raspberry PI

• One auxiliary USB connector for bed scanner, nozzle camera, or other inteligent USB connected accessory

• Onboard ADXL345 accelerometer

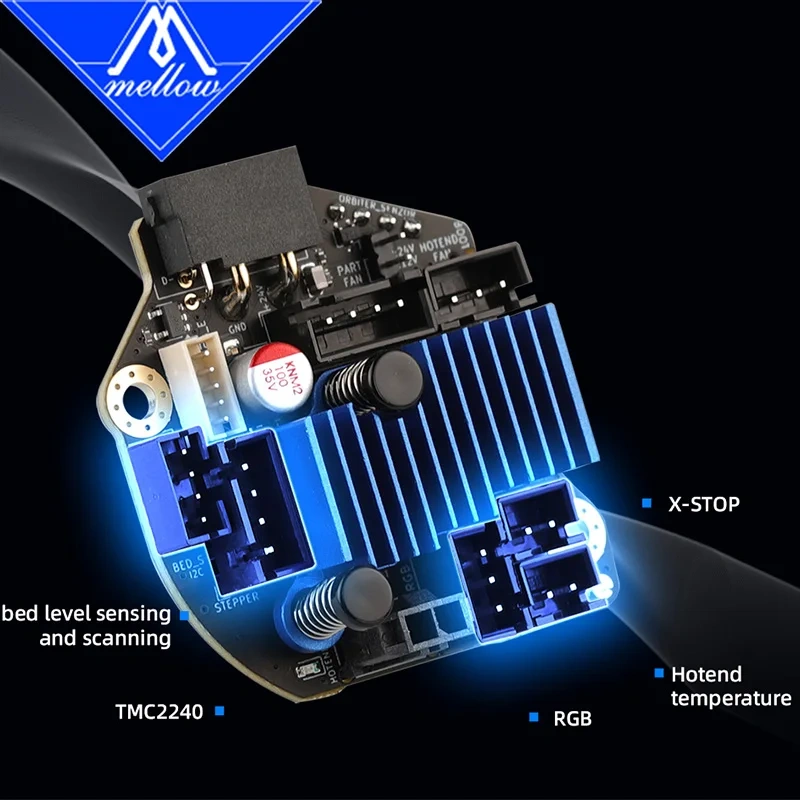

• TMC2240 extruder stepper driver - for better thermal behavior

• Direct connection to Orbiter v2 sensor

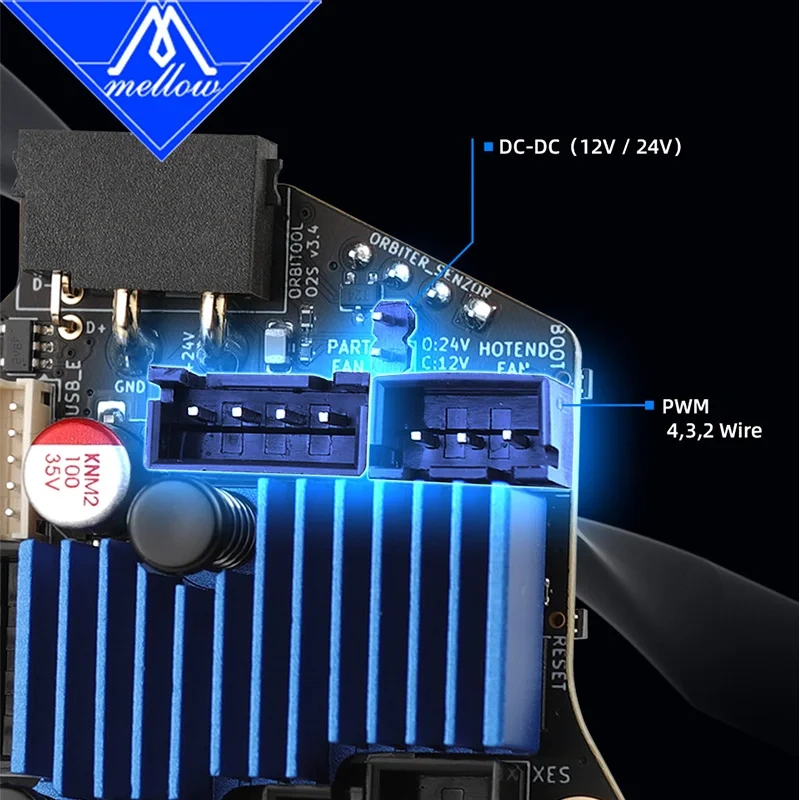

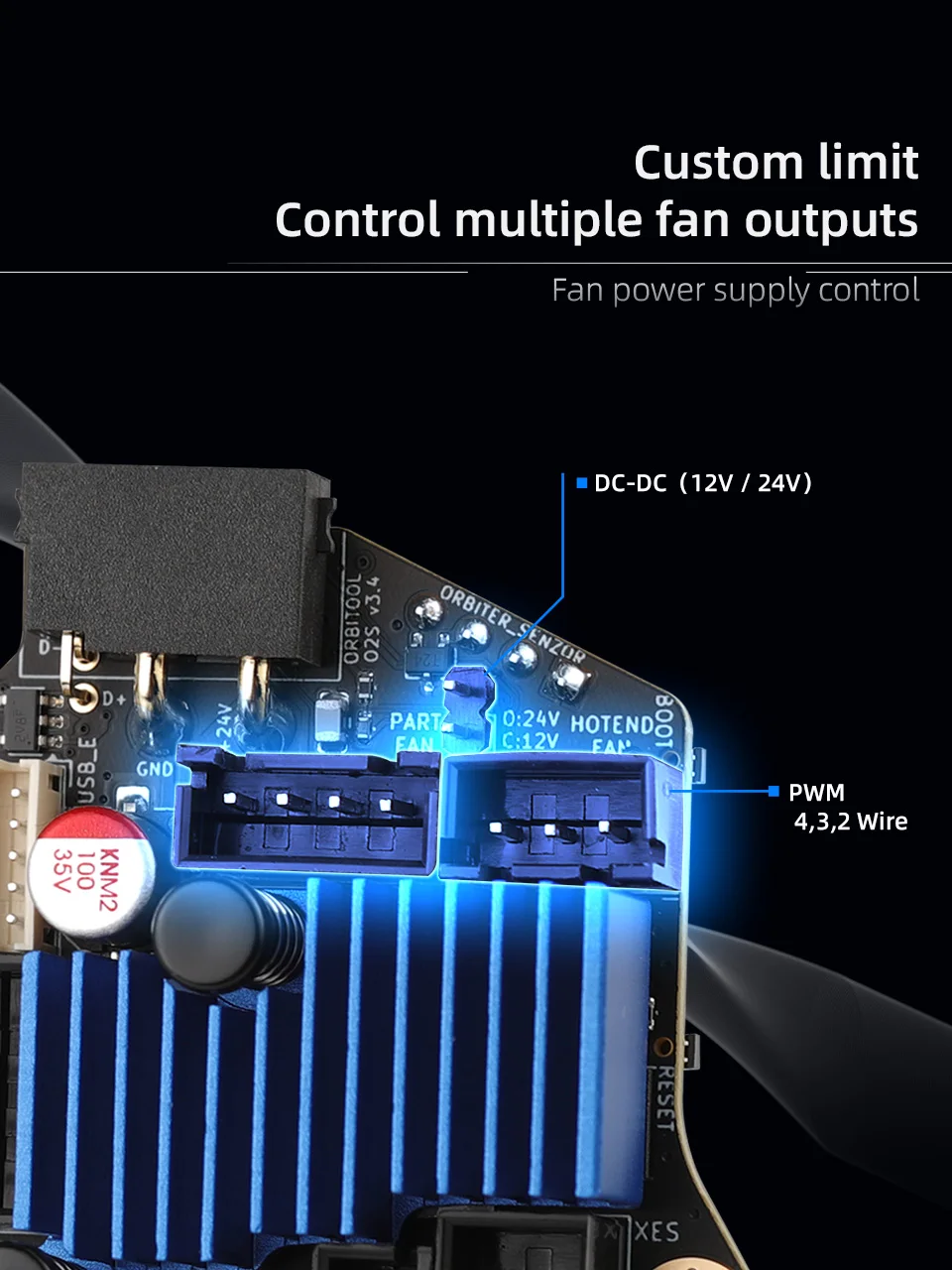

• PWM 4,3,2 wire part fan output, compatible with 12/24V fan types with RPM speed input signal

• DC-DC converter based Hot-end fan driver, compatible with 12/24V fan types with RPM speed input signal

• Hot-end temperature sensor input compatible with standard NTC or PT1000 temperature sensor types

• I2C for bed level sensing and scanning

• X-Stop sensor input

• RGB LED driver output

• Onboard temperature sensor

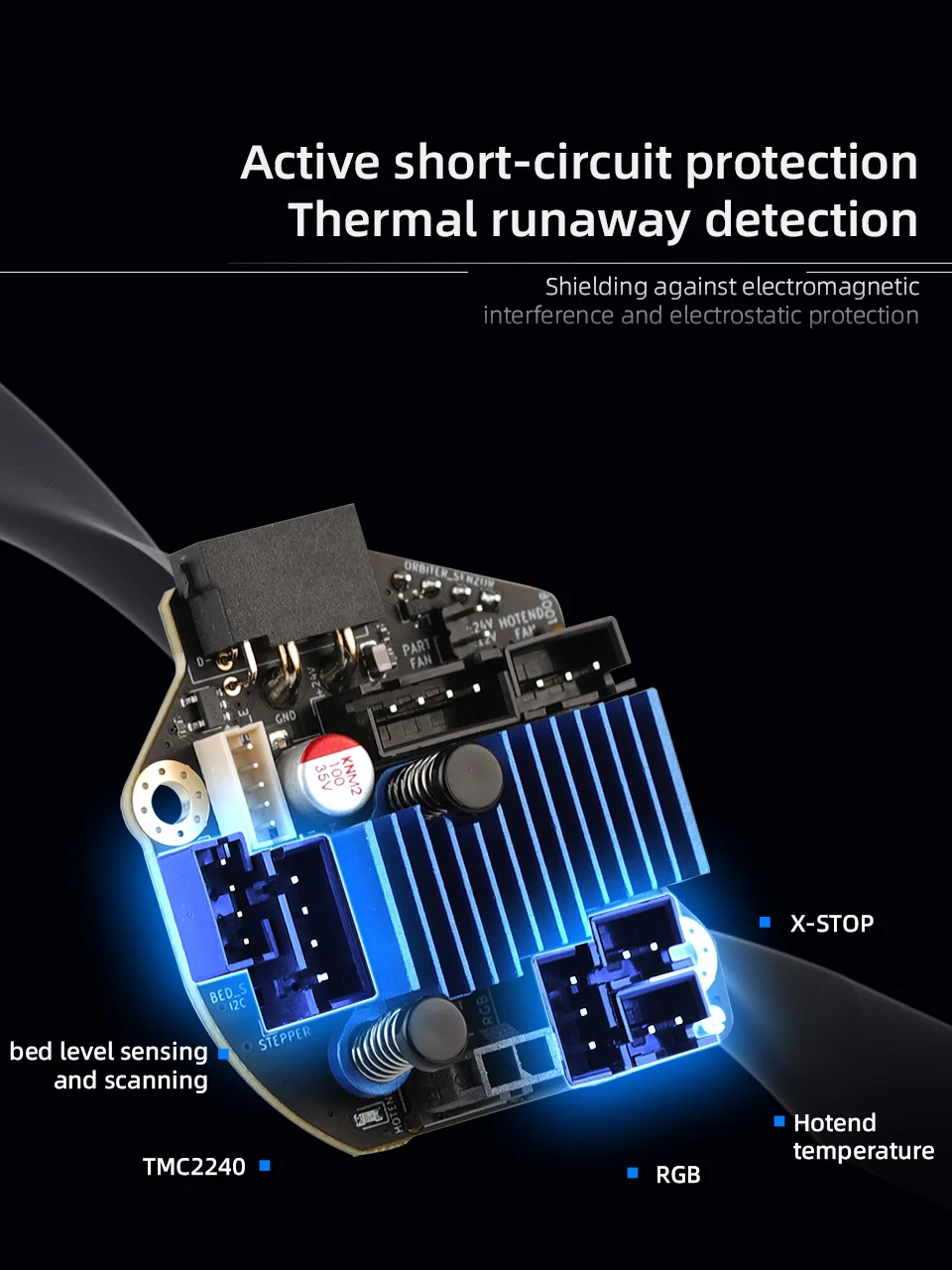

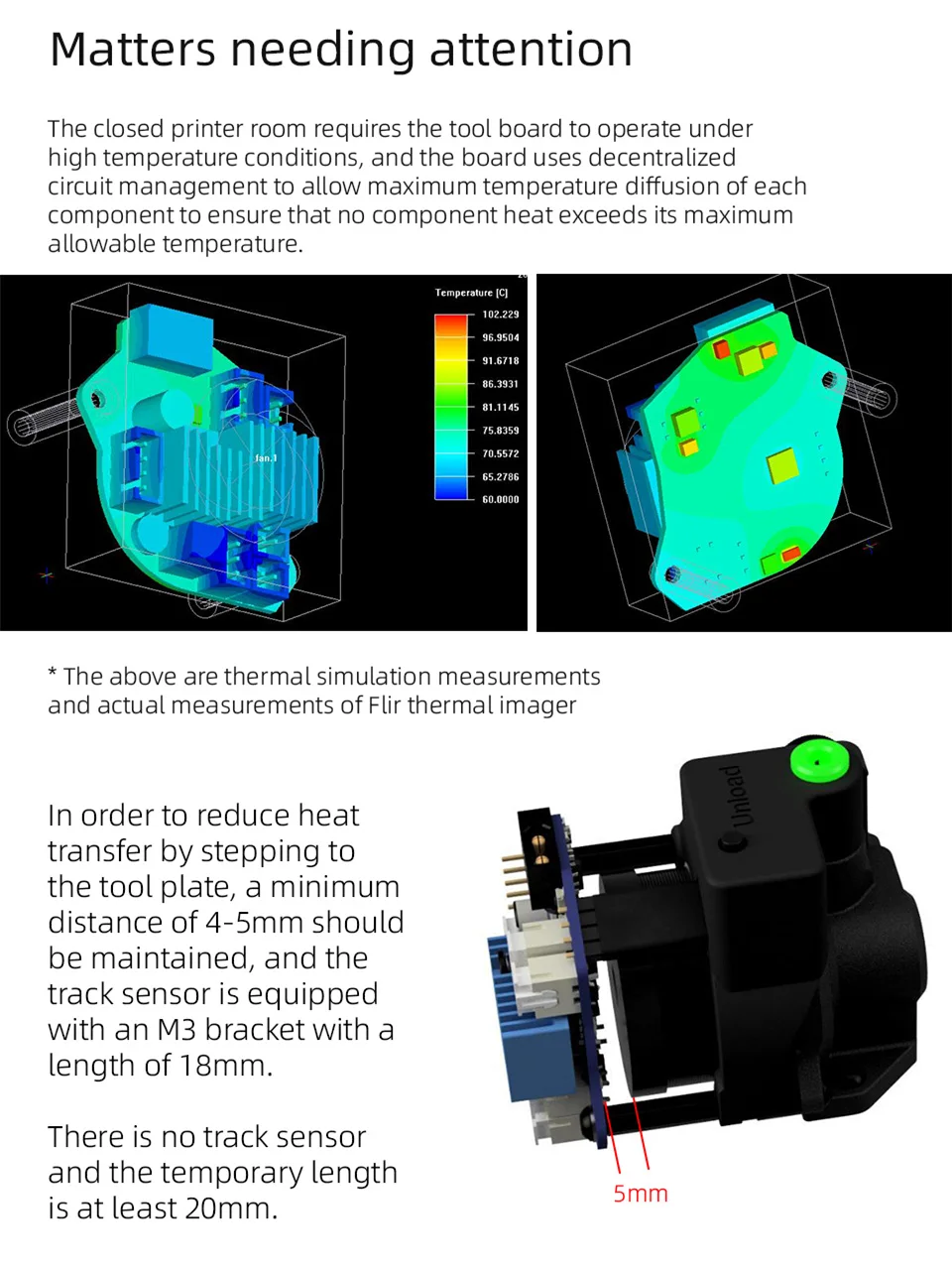

• Advanced thermal management system



1Compatible

Orbiter Extruder V2.5

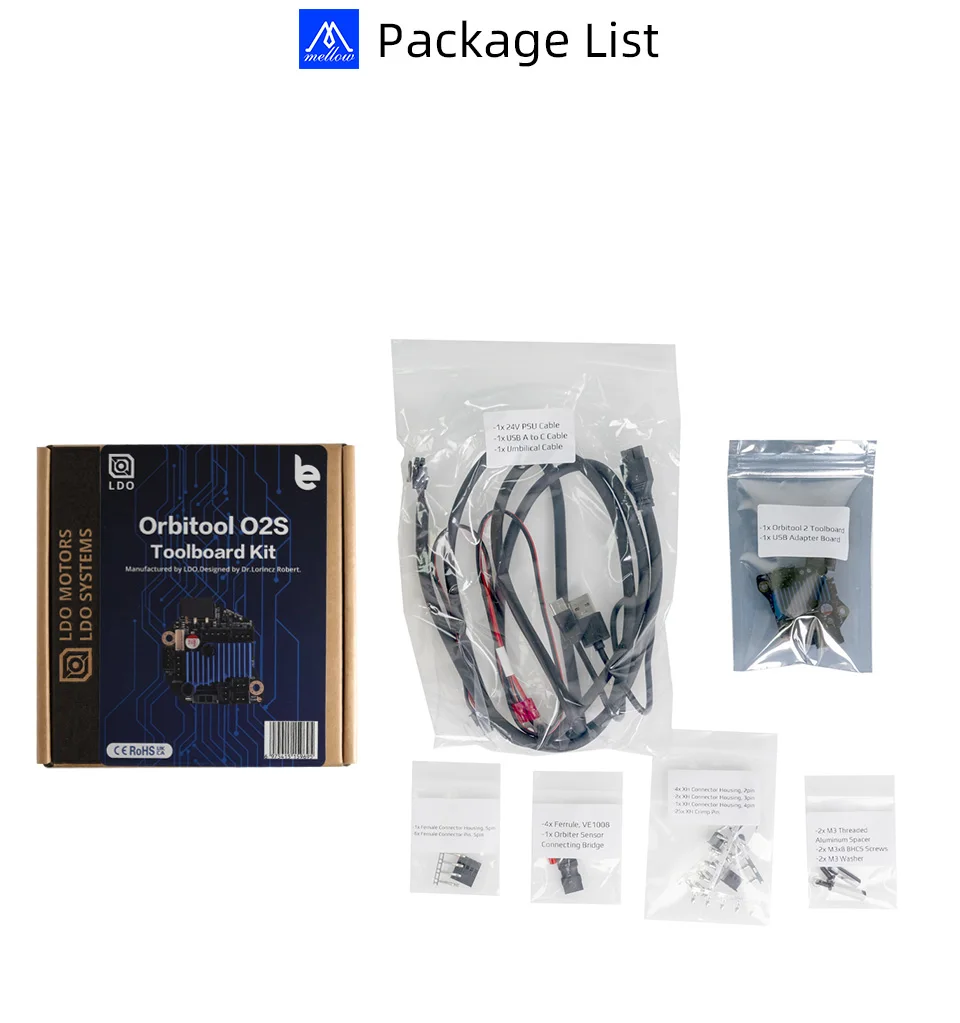

1Packege included

1* Orbitool O2S Toolboard
