Optimized for Orbiter v2 shape and features
1Mellow work team
1Description
This product is an official authentic product. Our store is only responsible for sales. If you have any questions, please check this website: https://github.com/RobertLorincz/Orbiter-Toolboards

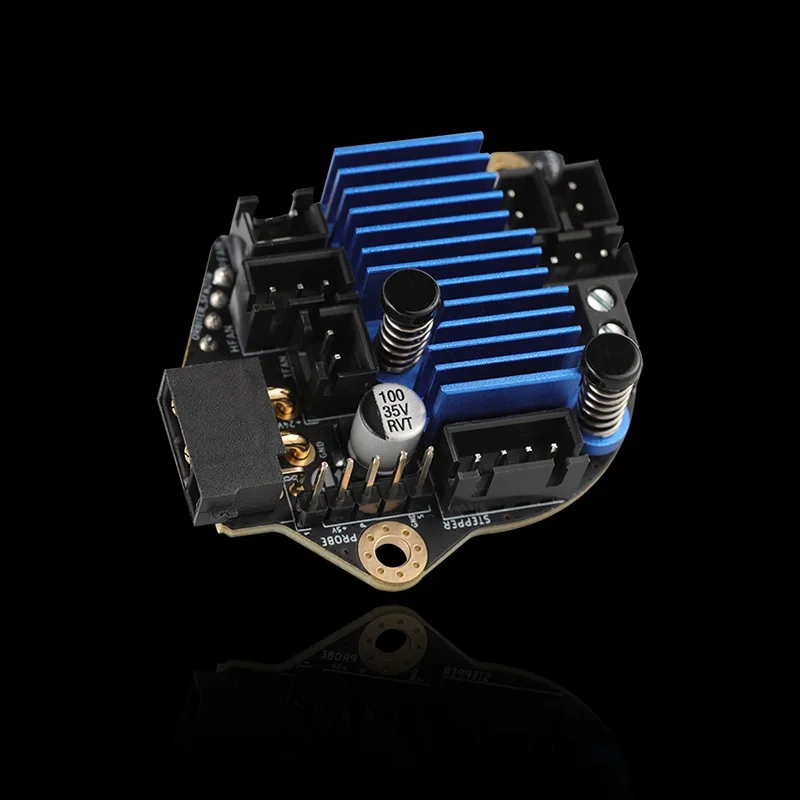

Optimized for Orbiter v2 shape and features including orbiter sensor
STM32F042 microcontroller runningon 48MHz

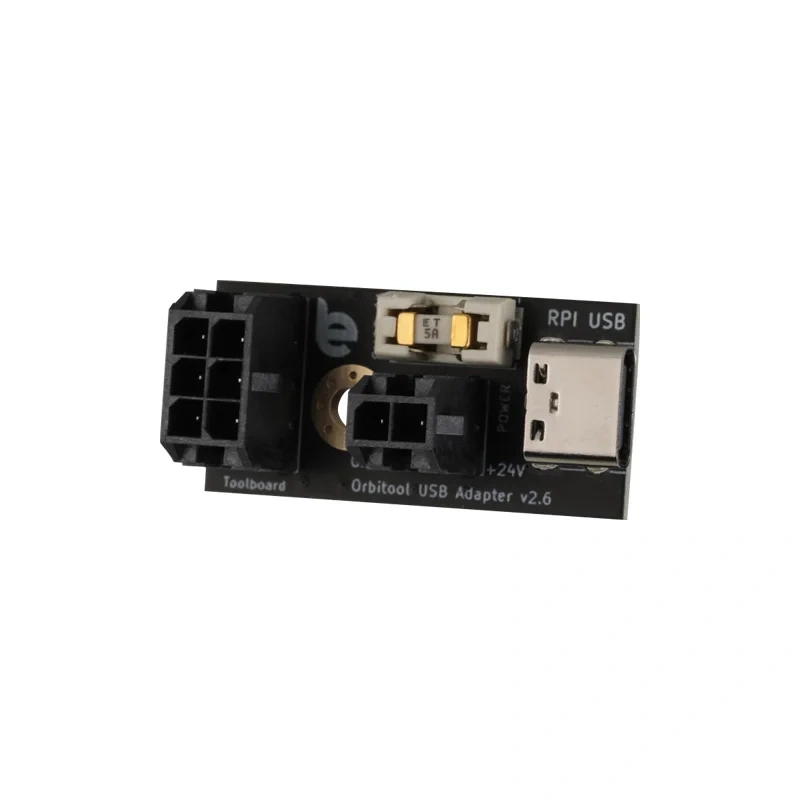

Automotive USB communication with Raspberry Pl
Onboard LlS2DW12 accelerometerTMC2209 extruder stepper driver
Direct connection to Orbiter v2 sensor2xPWM controlled fan outputs

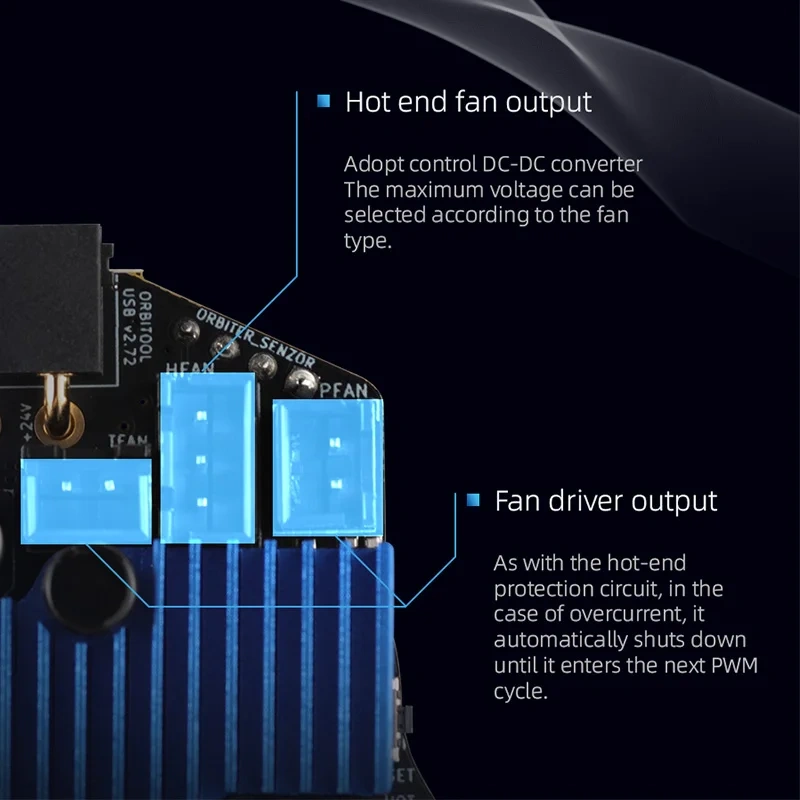

DC-DC converter based Hot-end fandriver,compatible with 12/24V fantypes with RPM speed input signal
Hot-end temperature sensor inputcompatible with standard NTC or PT1000 temperature sensor types
l/O for bed level sensing
X-Stop sensor input
RGB LED driver output
Onboard temperature sensor
Advanced thermal management system
1Product ?Features
Active short circuit protected Hot-endoutput
Active short circuit protected fandriver outputs
Active Protection circuit againstreverse power supply connectionProtection against loss of GND supply
Analog and digital inputs protectedagainst short to +24V supply voltage
USB data lines protected againstshort circuits to GND and +24V
RGB LED power supply pin protectedagainst short to GND
EMl interference and ESD protectionan all inputs and outputs

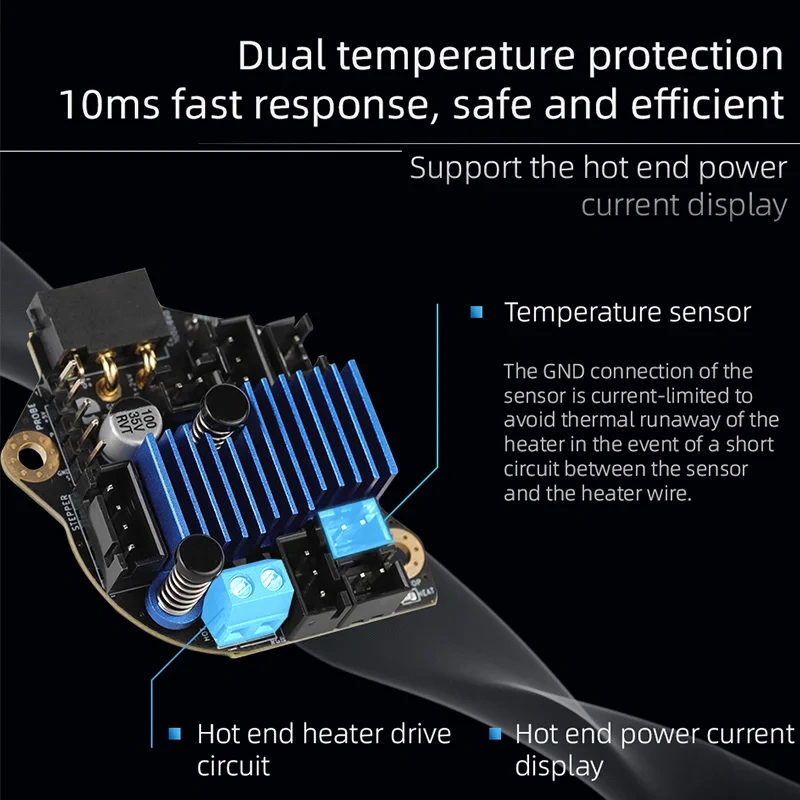

Heater thermal runaway protection incase of short between heater andsense thermistor wires
1Compatible
1Packege included

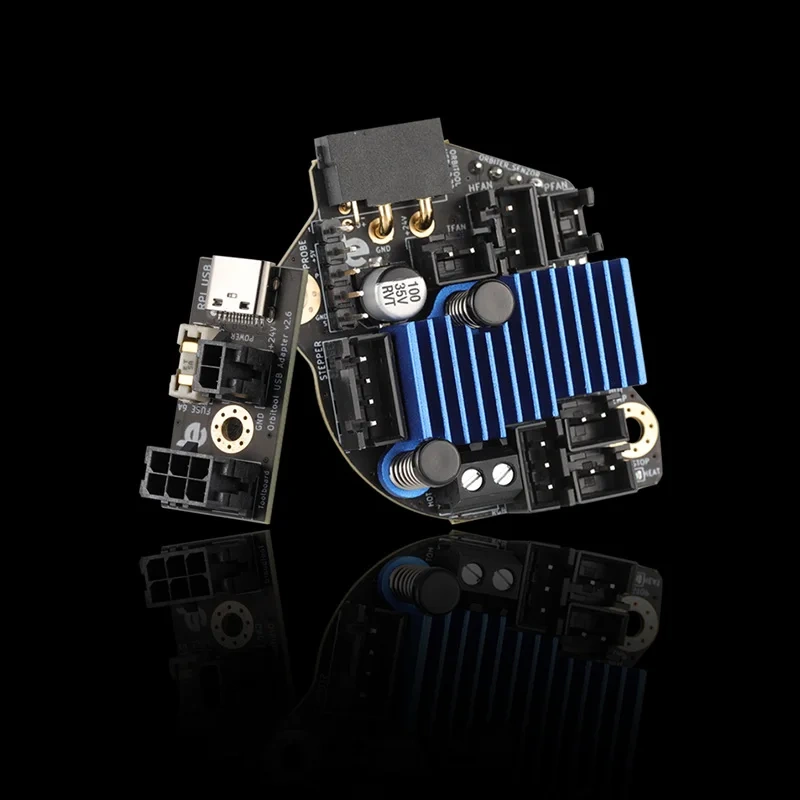

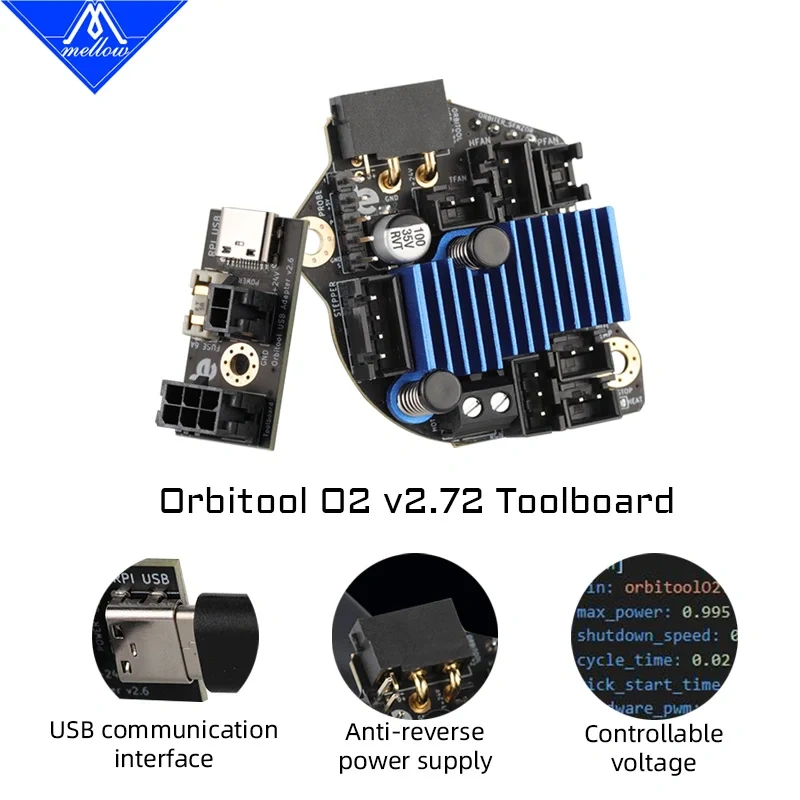

1* Orbitool O2 v2.72 Toolboard
