Mellow Fly Tool Lite Toolhead Board Compatible Diy 3D Printer Klipper Canbus RS232 Hotend Board For Nema14/17 Motor

Name: Mellow Fly Tool Lite Toolhead Board Compatible Diy 3D Printer Klipper Canbus RS232 Hotend Board For Nema14/17 Motor
Brand: 3D Mellow
SKU: 5061021015
Price: 13.88 USD
Availability: InStock
Rating: 5.0 (3 reviews)

No.Tool Lite

SKU: 5061021015

Mellow Fly Tool Lite 3D printer toolhead board with CANbus & RS232. Onboard TMC2209, RP2040 & LIS2DW, simplifies wiring to 4 wires, fits Nema14/17 motors, Klipper compatible.

CAN-KF:

232-KF:

Please note before placing your order:

All our prices are exclusive of taxes; you are responsible for declaring and paying any applicable tax.
If you require UPS, FedEx, TNT, or DHL shipping, please contact us in advance so we can discuss the freight arrangements.

For technical inquiries, please email: service@3dmellow.com
For sales inquiries, please email: sale@3dmellow.com

5.0 （3 Reviews）

35 Sold

Flash Sale

$13.88 ~~$27.76~~

-50%

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Model:

CAN Lite-No plug

232 Lite-No plug

LITE Add UTOC1-No plug

LITE Add UTOC3-No plug

232LITE Add UTOR-No plug

UTOC-1-No plug

UTOC-3-No plug

UTOR-No plug

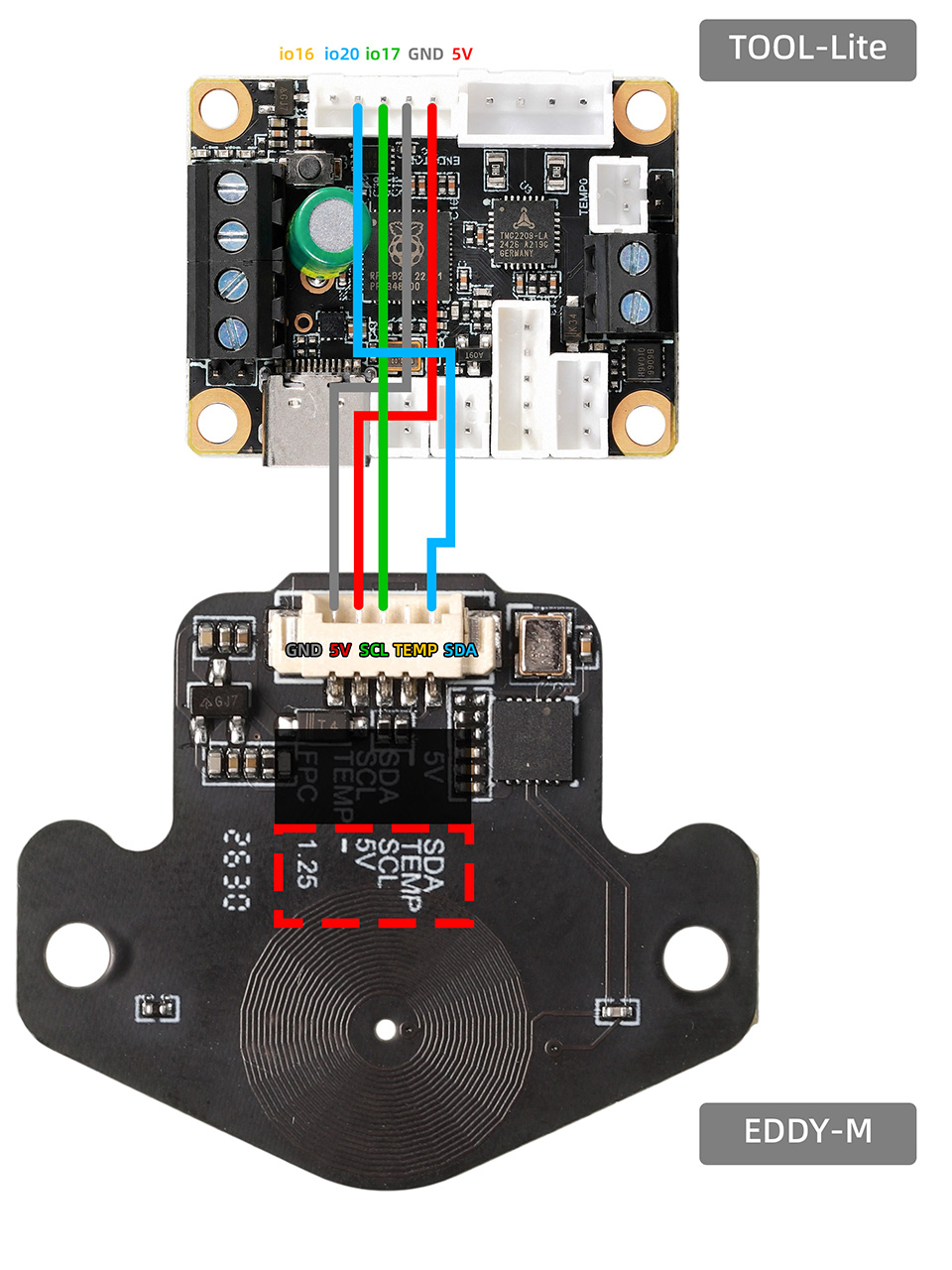

EDDY-M

Qty:

Add to Favorites (3)

1/1

Description

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you better overall experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

1Description

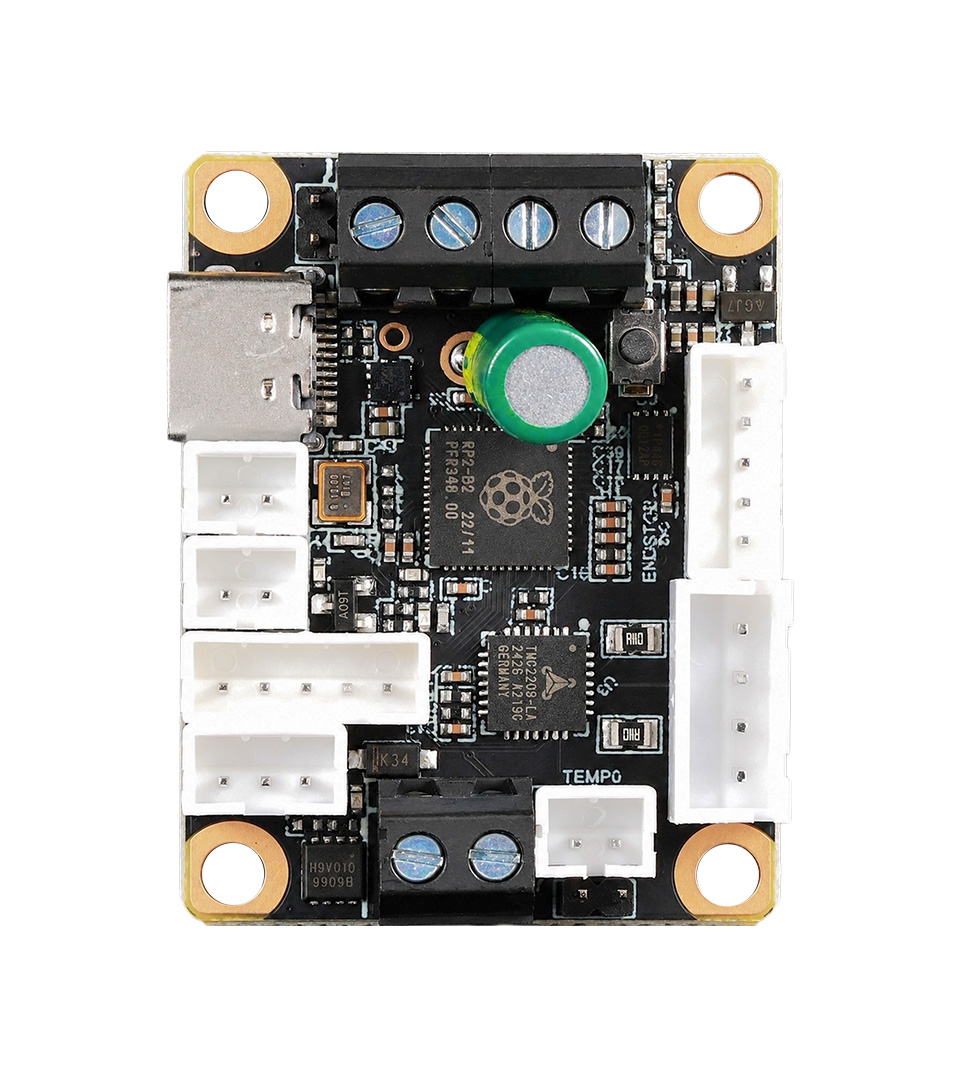

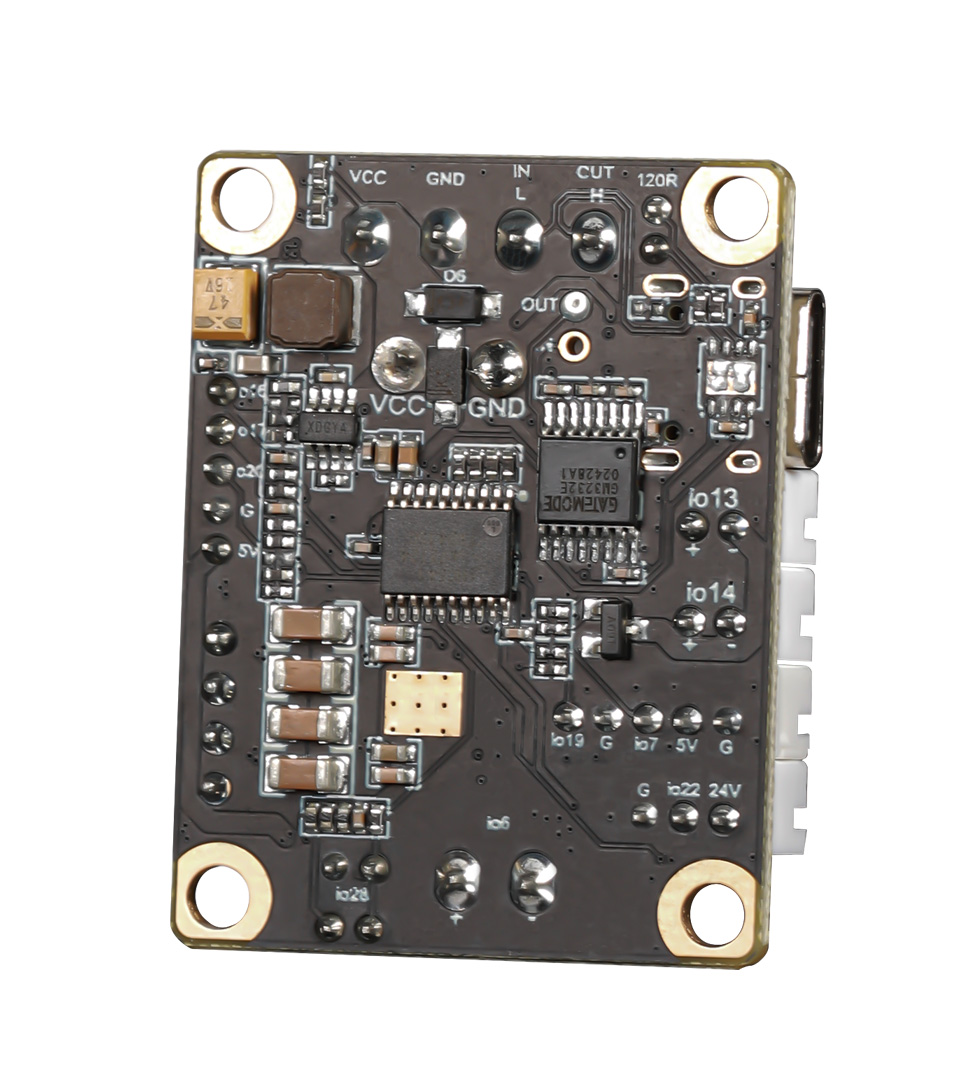

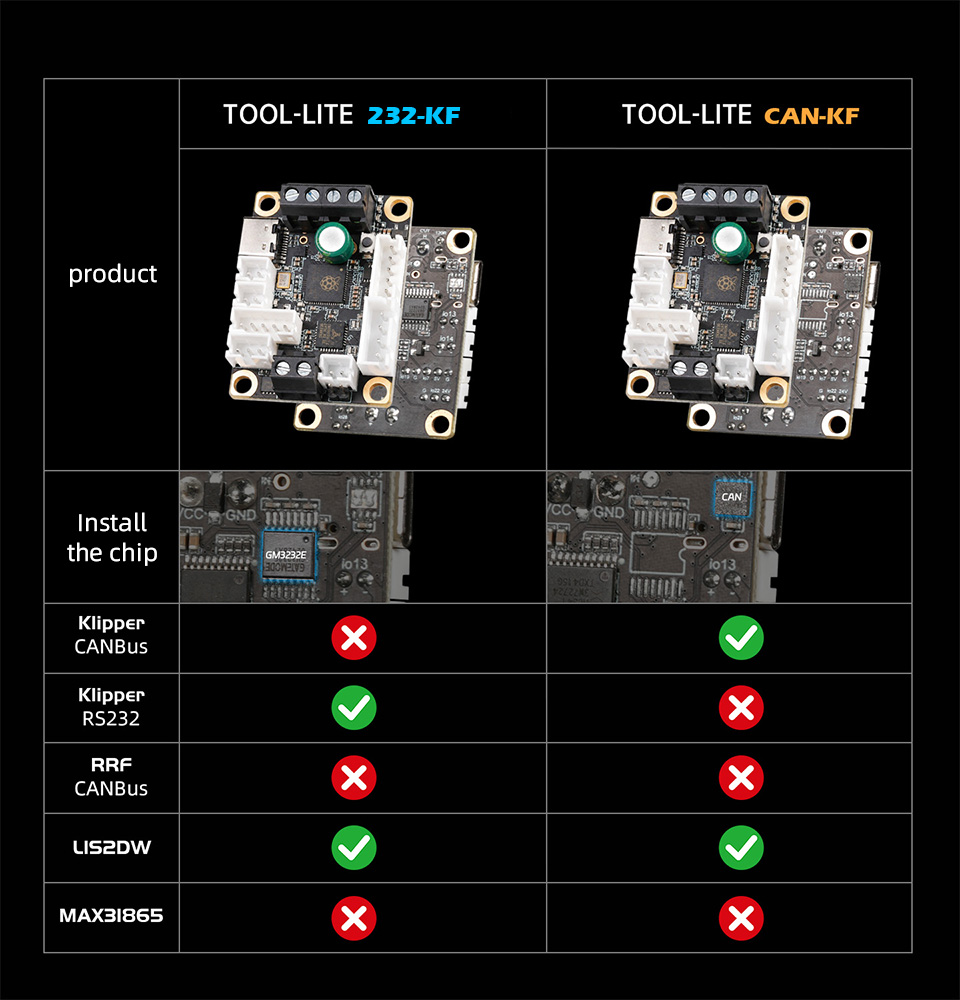

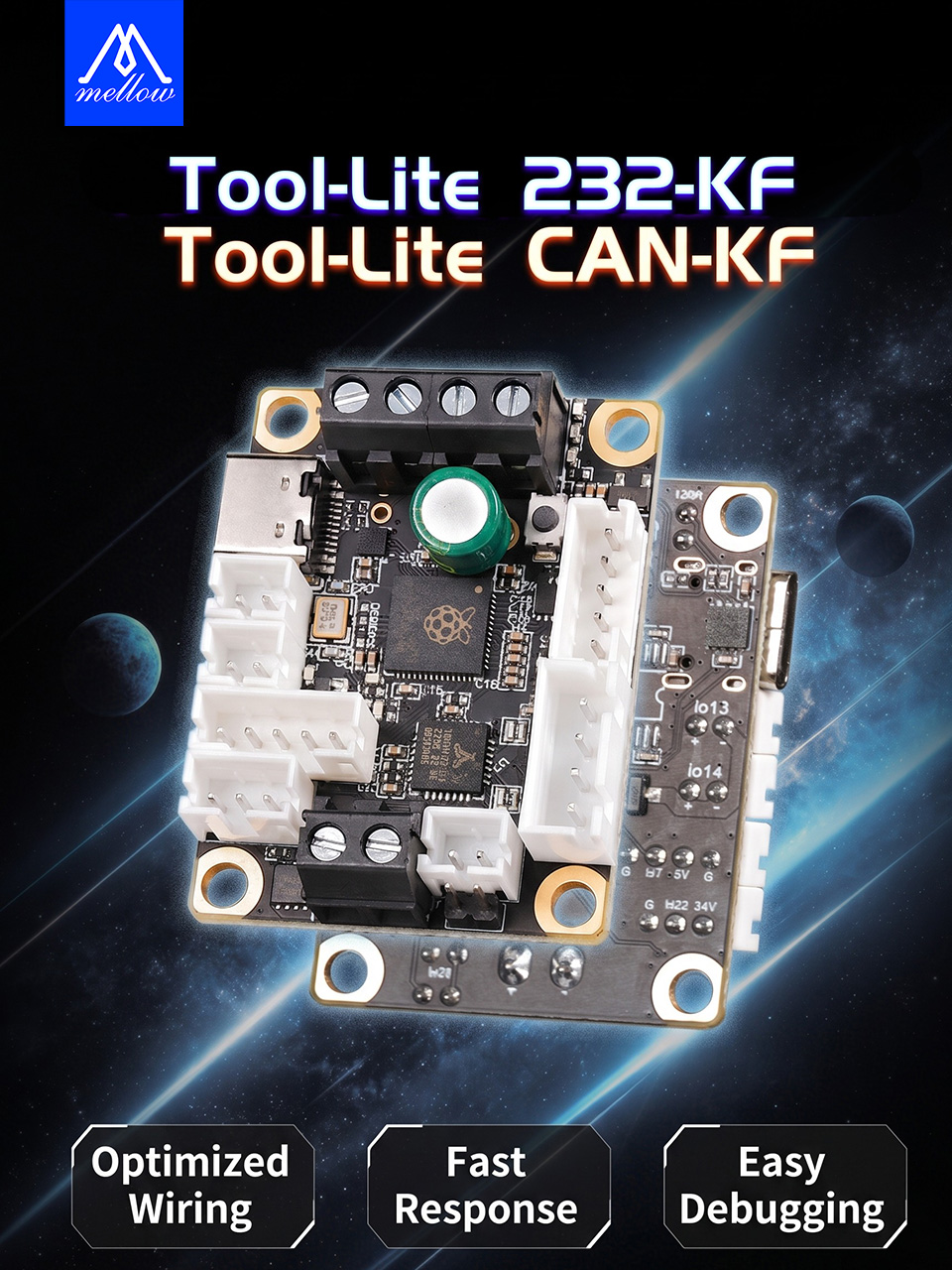

Tool Lite is a tool plate specially designed by the FLY team for 3D printer extrusion heads. Using this tool board, you only need four wires to replace the complex wiring between the motherboard and the print head, optimizing the layout. FLY-Tool Lite has CAN and RSR232 versions, USB port, TMC2209 driver, LIS2DW accelerometer, two controllable fans and other functions. This tool board is compatible with Klipper firmware.

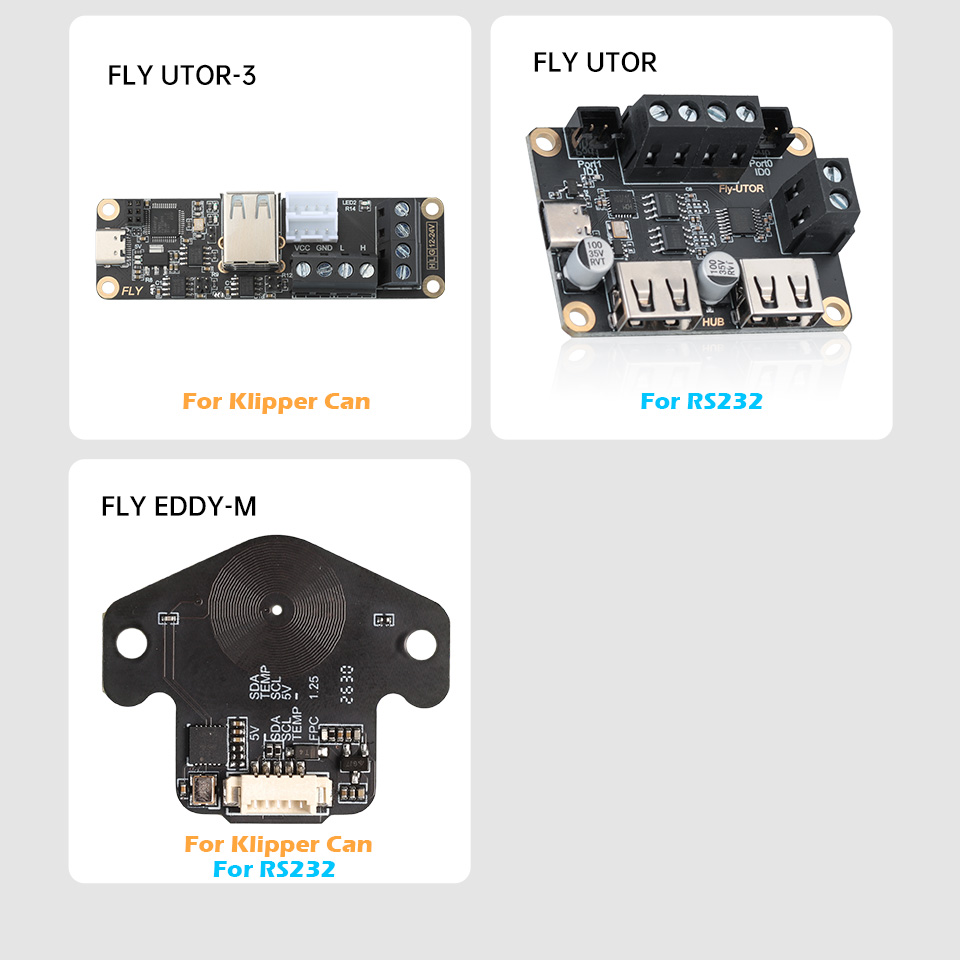

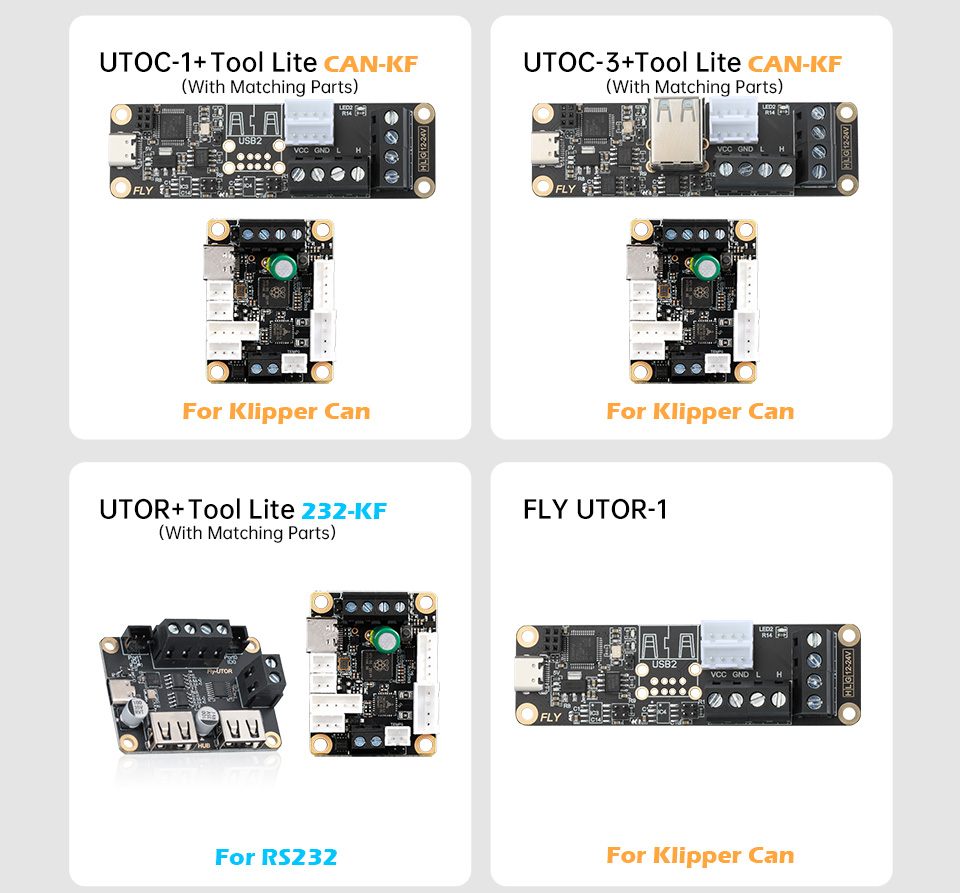

The Tool Lite board utilizes CAN/RS232 communication to connect the upper computer to the UTOC/UTOR board, enabling communication with the Tool Lite through the UTOC/UTOR

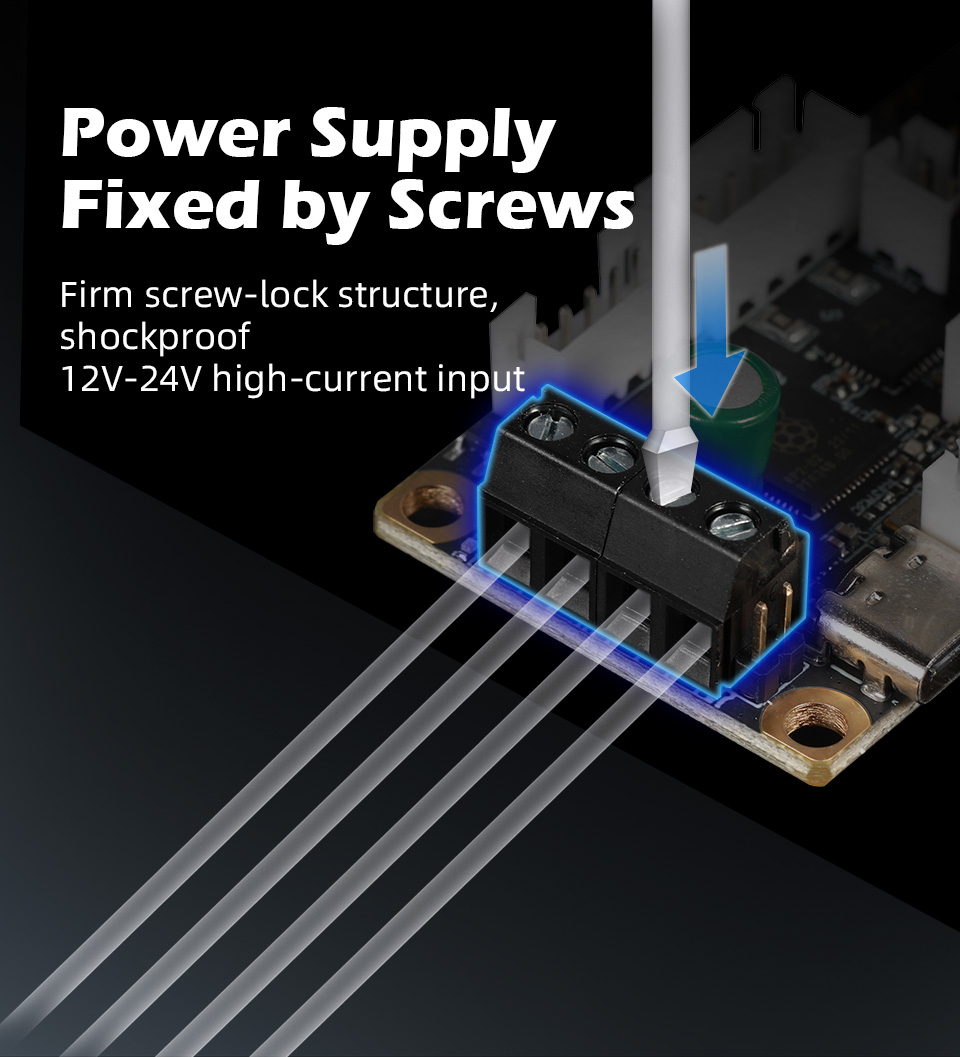

The KF terminal is firmly fixed and not easily damaged during printing.

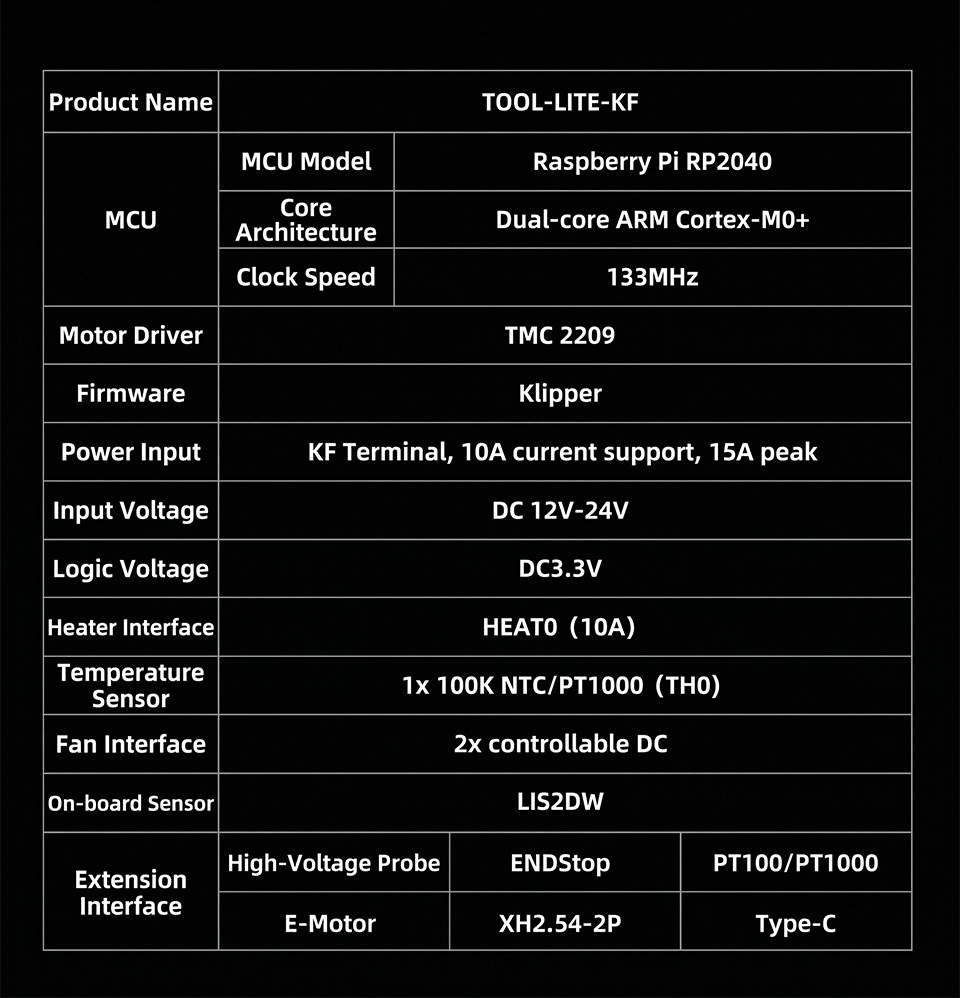

1Technical Specifications

MCU: Raspberry Pi RP2040, dual-core ARM Cortex-M0+ @ 133MHz

Connection Interface: Uses KF connector, supporting 10A current

Firmware:Klipper

Input Voltage: DC 12V-24V

Logic Voltage: DC 3.3V

Onboard Sensors: LIS2DW

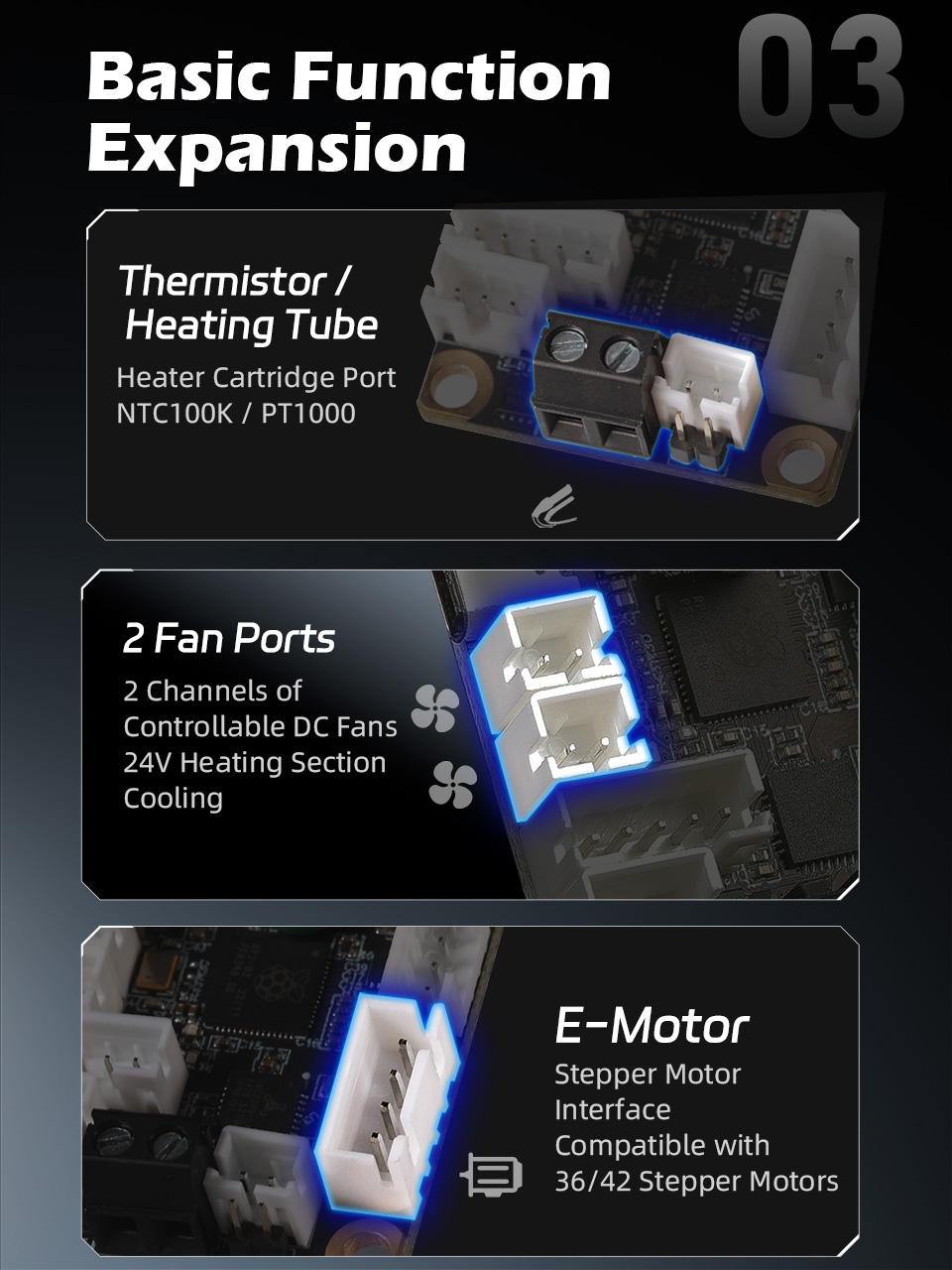

Heater Interface: HEAT0, supporting 10A

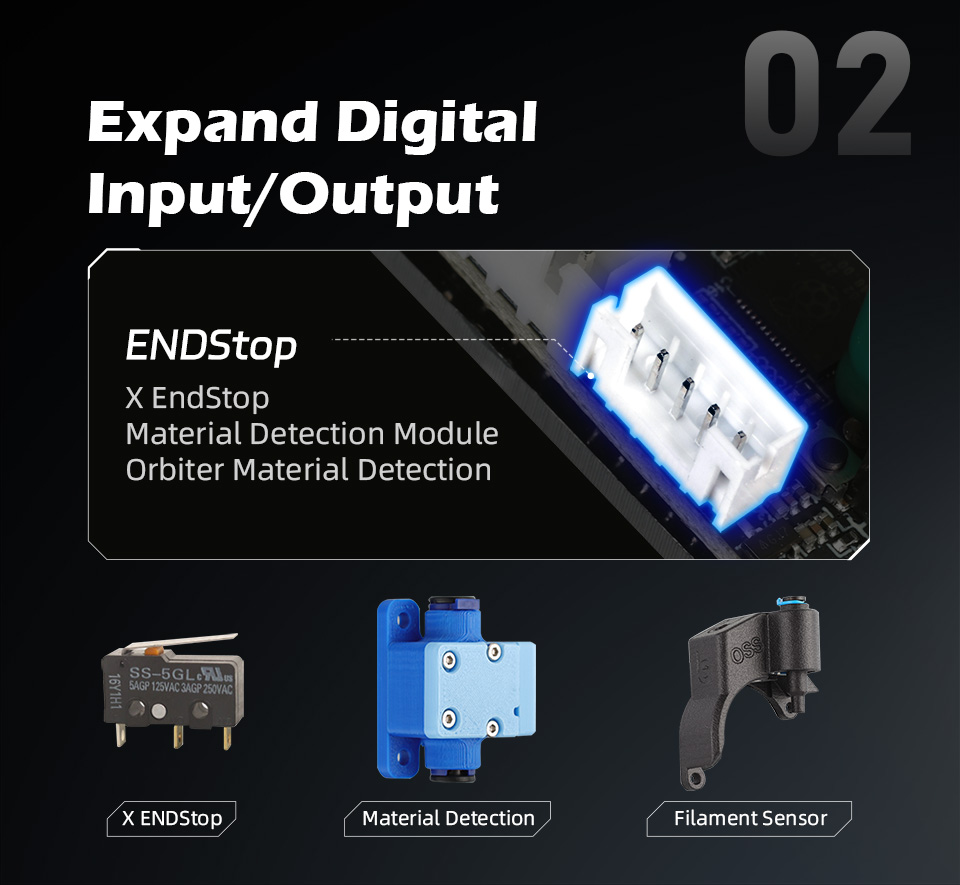

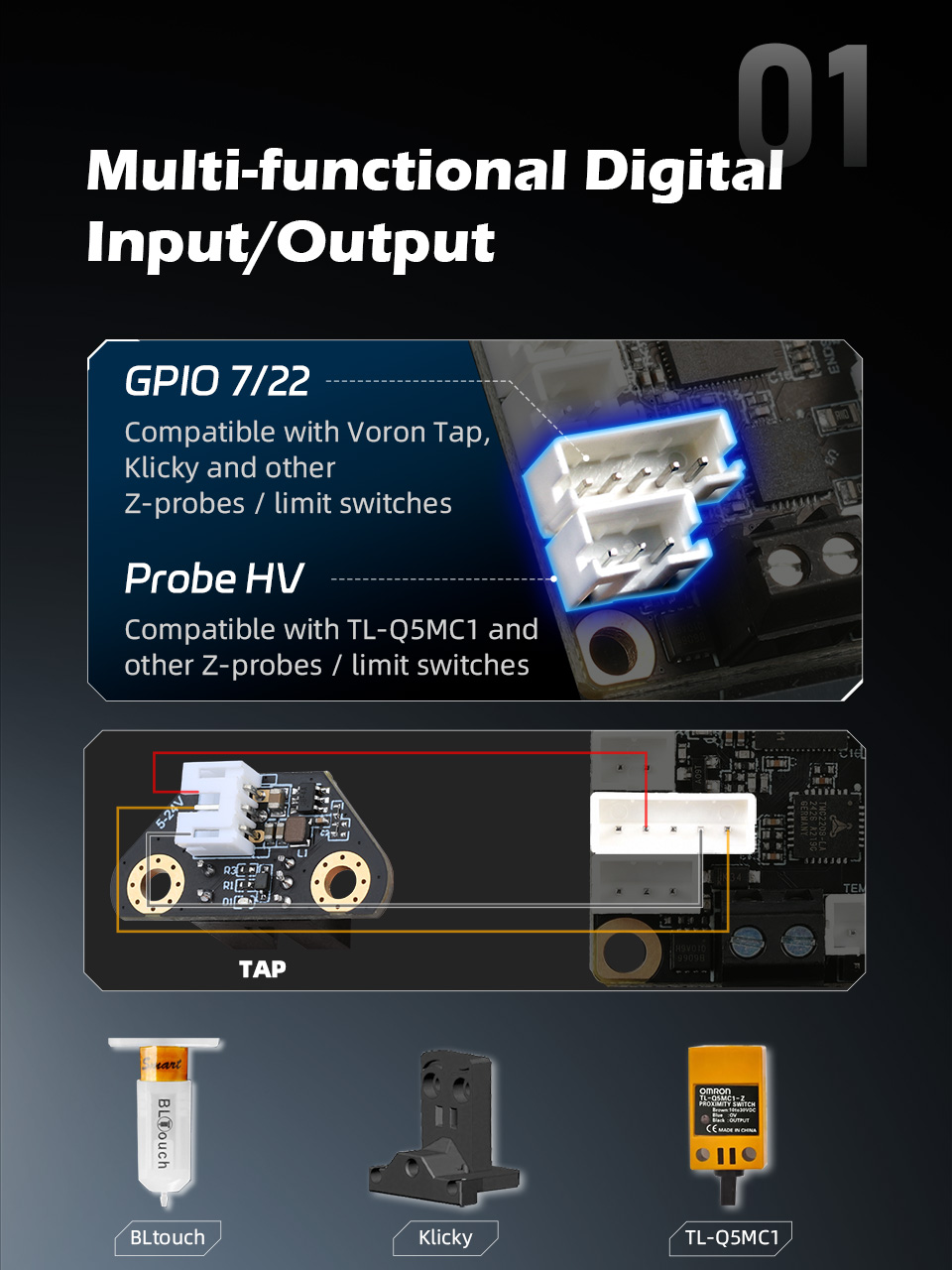

Expansion Interfaces: EndStop，BLtouch

Fan Interfaces: Two controllable DC fans

Motor Driver: Onboard TMC2209
