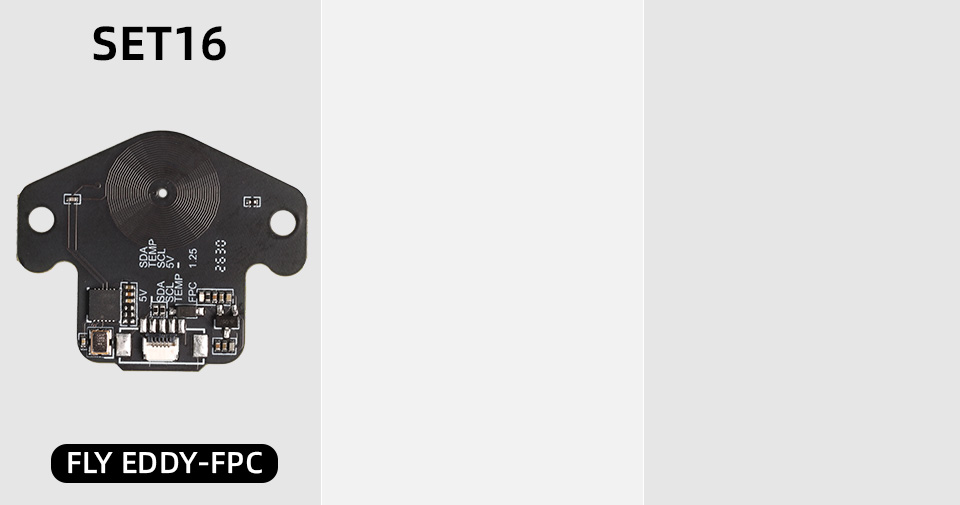

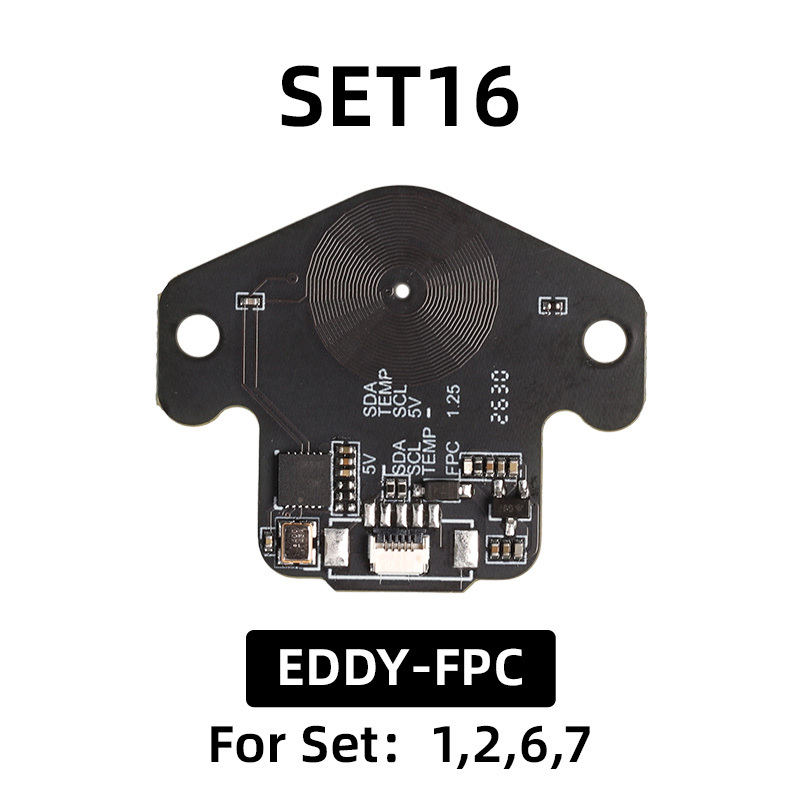

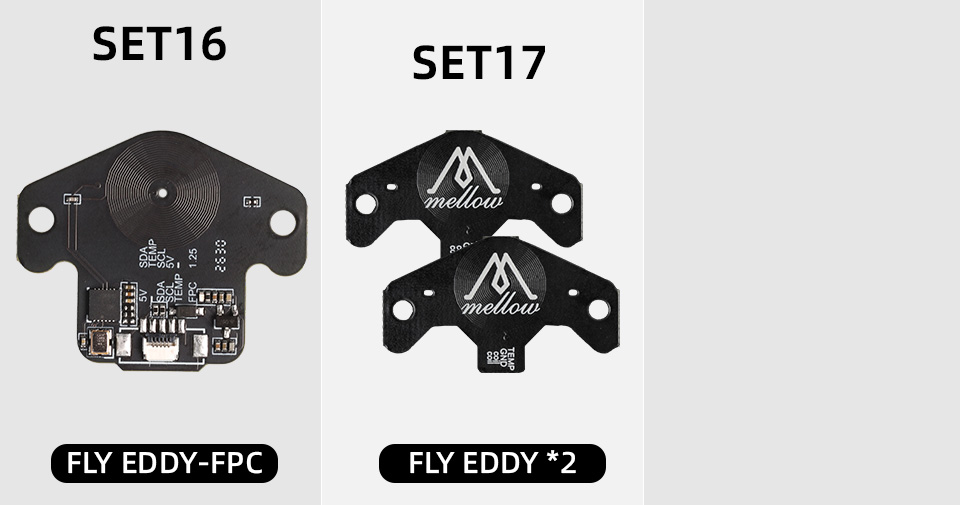

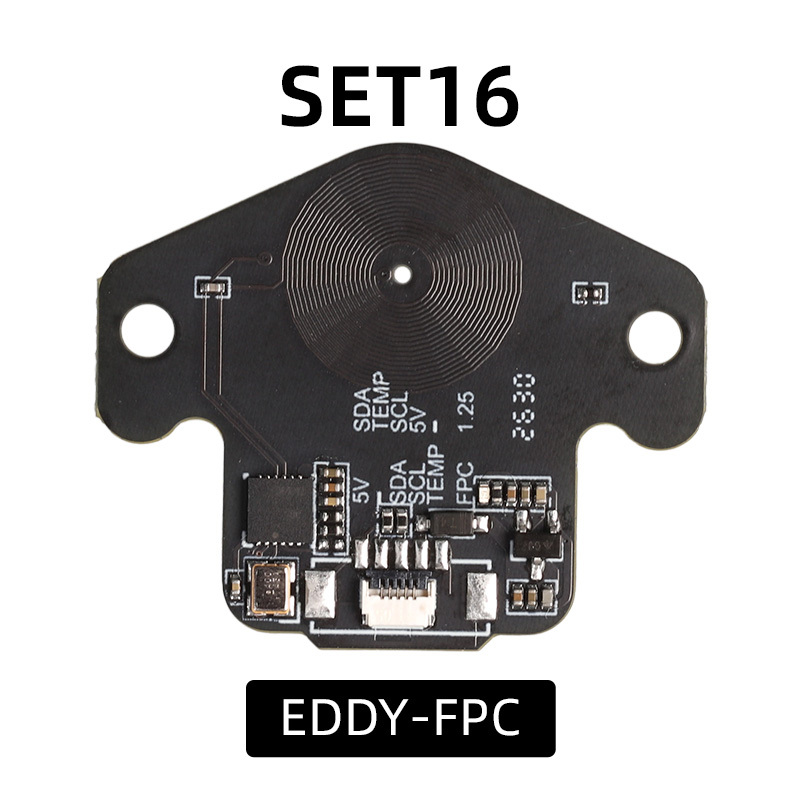

EDDY-FPC

Qty:

Add to Favorites (0)

1/1

Notice

If you are unable to purchase, please contact us: sale@3dmellow.com

Product Guides & Shipping Info

📖 User Manual > 🚚 Delivery Information >

Description

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printer accessories that can be used on all 3D printers. We have 3 main product lines: NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope our products will bring you better overall experience. If you have any ideas (products, use, sales), please contact us. We look forward to hearing from you.

1Description

Suggestion:Do not turn on HDMI, it may report an error

The SB2040 board design was inspired by hartk1213, thanks for his contribution to the Voron community, which can be found at:
https://github.com/hartk1213/MISC/tree/main/PCBs/Stealthburner_Toolhead_PCB# stealthburner-toolhead-board

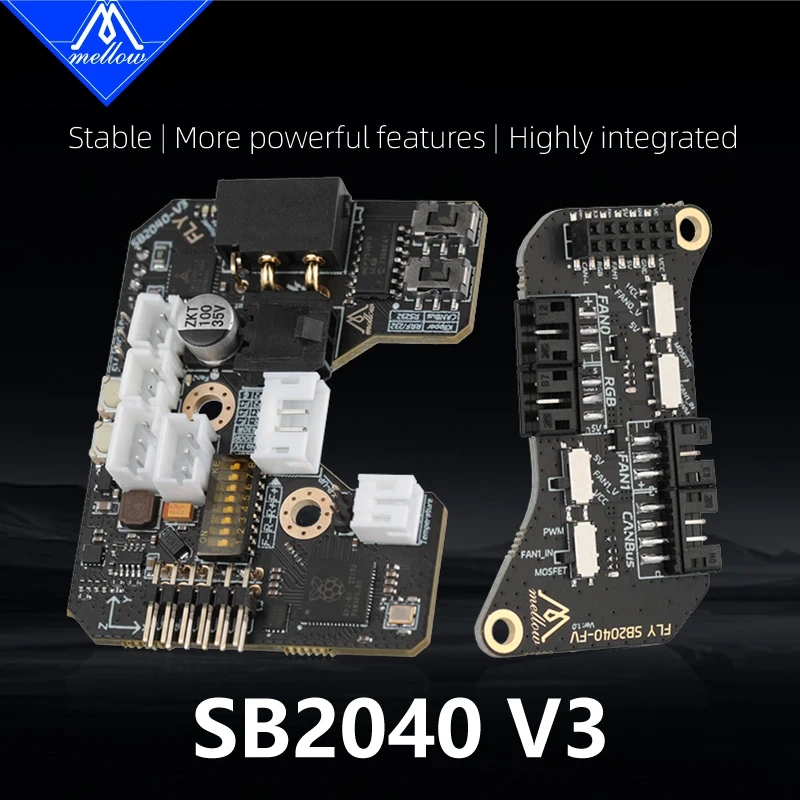

The SB2040 V3 board utilizes CAN/RS232 communication to connect the upper computer to the UTOC/UTOR board, enabling communication with the SB2040 through the UTOC/UTOR.

For SB2040 board, it is recommended to choose FLY-UTOC-1 Board, because most of the upper computer and the main board through usb communication is enough, so there is no need to use Can communication.

Reference URL:

Kliiper refers to this URL:

https://mellow.klipper.cn/#/board/fly_sb2040_v3_pro/README

RRF refers to this URL: http://teamgloomy.github.io/fly_sb2040_max_v3_general.html https://teamgloomy.github.io/fly_sb2040_pro_max_v3_general.html

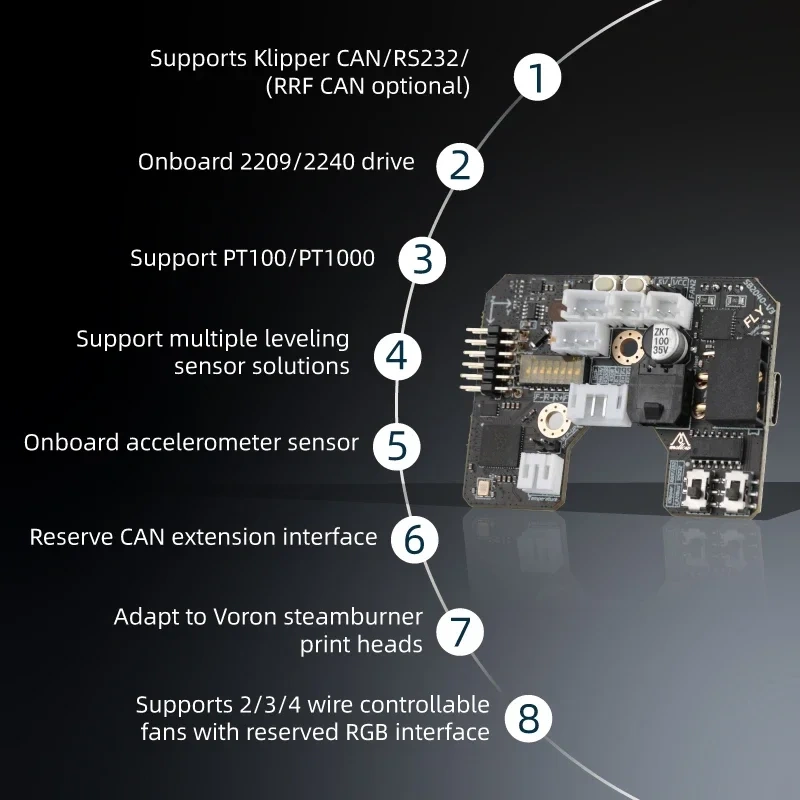

1Product Features

Supports CAN bus connection for stable data transmission with minimal latency and longer distances.
CAN bus is compatible with all devices capable of running Linux, such as Raspberry Pi.
Added support for RS232 connection, offering even more stable data transmission with minimal latency and longer distances, reducing disconnections.

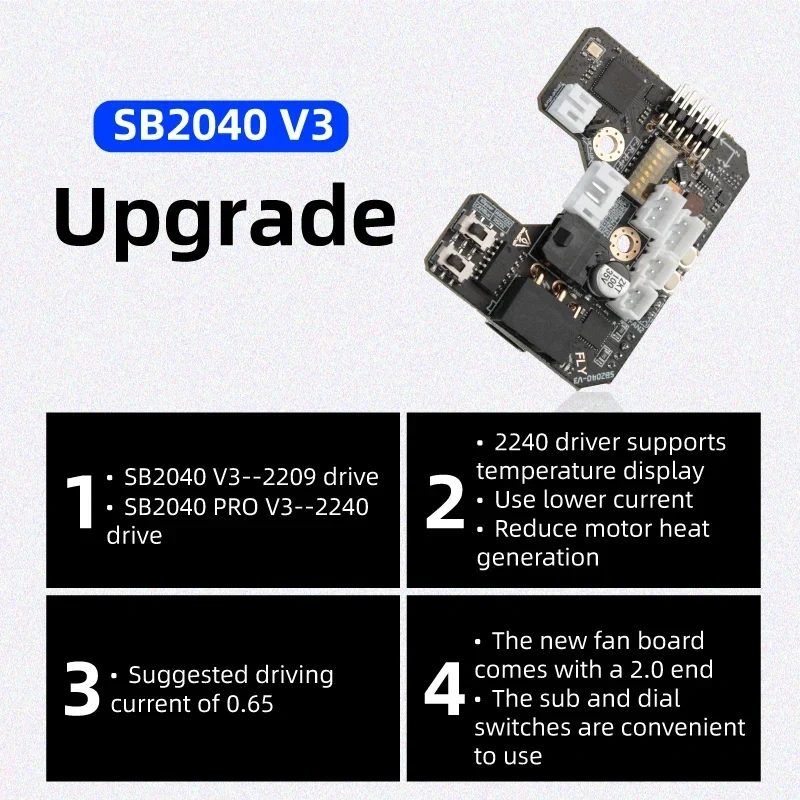

Onboard TMC2209/TMC2240 drivers for extruders.

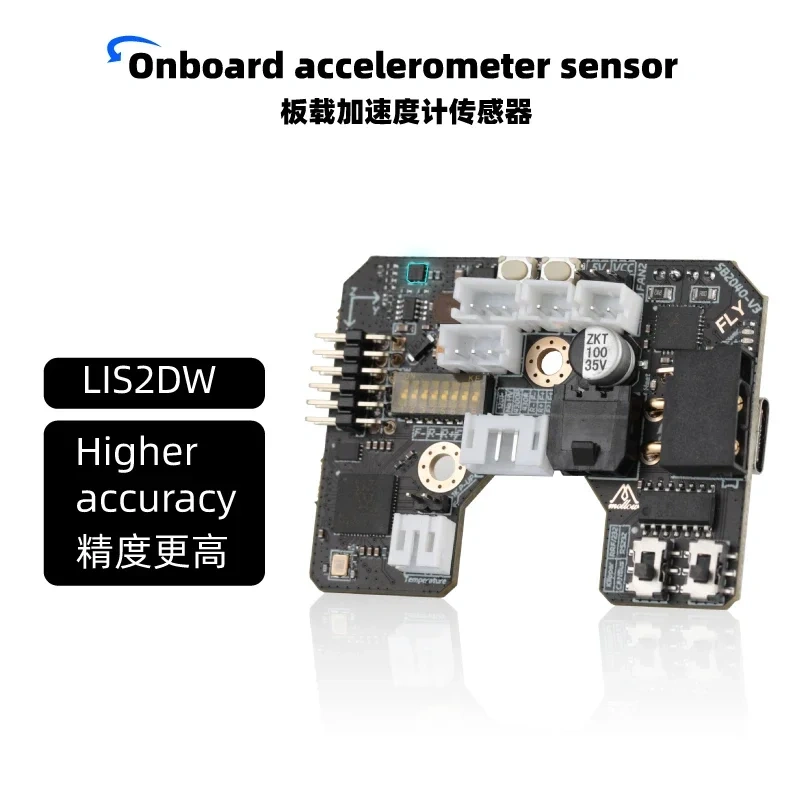

Integrated LIS2DW accelerometer.
Added support for switching between 4.7K resistors (for NTC thermistors) or 1K resistors (for PT1000 sensors).
Replaced MX3.0 terminals with new connectors supporting 15A current, peaking at 30A.
LIS2DW's INT1 and INT2 pins are connected to the microcontroller for user-level calibration.
Rated 5A heating rod port.
High voltage input limitations.
Upgraded to a 3m CAN connection cable to prevent signal loss due to improper terminal crimping.
Added support for MAX31865 version, originally only supporting PT100 sensors, now also supporting PT1000 sensors for higher requirements.
Added 8-bit DIP switch for easier configuration without needing jumpers or soldering.
Added two switches for toggling between RRF and Klipper CAN, Klipper CAN and RS232.

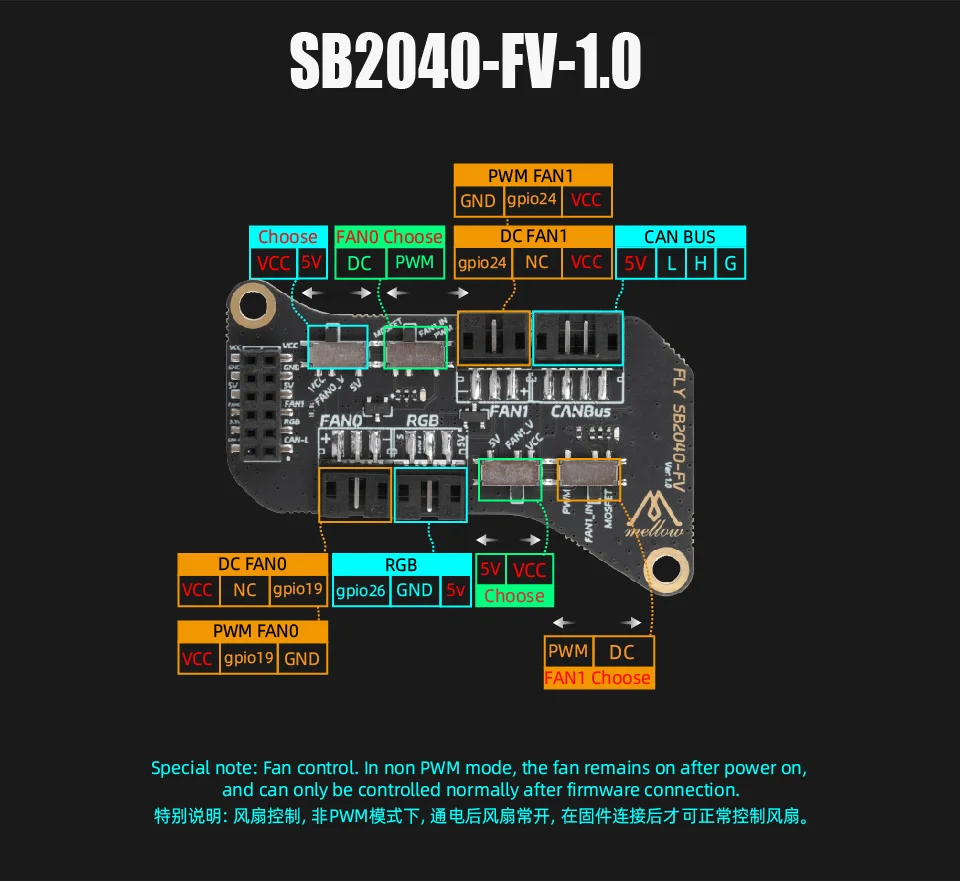

Added fan board switch for toggling between DC and PWM fans, enhancing customer convenience.

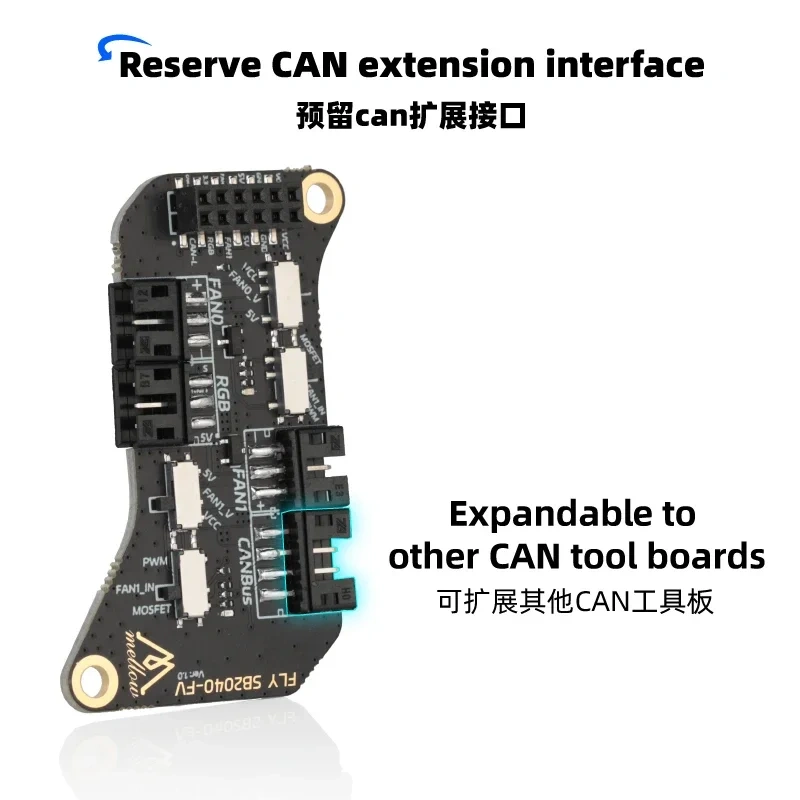

Added CAN interface for customer expansion with CAN modules.
Max version adds 1612 chip for RRF fast scanning

1Product parameters

Product Name: SB2040 V3 Board / SB2040Pro V3 Board

Product Use: Connects Klipper expansion devices via CAN bus/RS232

Product Type: Voron 2.4 R2 Trident Invisible Burner Print Head

Communication Method: CANBUS/USB/RS232

Other Product Attributes: Due to the substantial memory consumption of CAN bus communication and KlipperScreen, it is not recommended to open KlipperScreen when using the CAN bus on Gemini v1/v1.1 mainboards. However, Gemini v2 can simultaneously use both.

Peripheral Interfaces: USB*1, CAN/RS2321, Fans3, RGB*1, Probe*1, EndStop*2, Temperature Sensor*1, Heater*1

Product Name: FLY-UTOR Board

Available Interfaces: USB *2, UART to RS232 *2, Power Interface *2

Power Interface: 12V/24V Expansion

Compatibility: Upper machine with USB interface

Product Name: FLY-UTOC Board

USB-IN: USB to CAN Input Interface, connected to the host

12-24V & GND: Power Connector

CANBUS: CAN Interface, connected to the expansion mainboard and toolboard, etc. (connected to devices with onboard CAN transceiver chips)

CANBUS*: Used for connecting mainboards without CAN ports (only for connecting to the USB (PA11/PA12) port of STM32, please pay attention to purchasing the corresponding UTOC version)

1Compatible

Gemini V1/1.1/2

Fly-C8

Raspberry Pi

CW2 Extruder Stealthburner

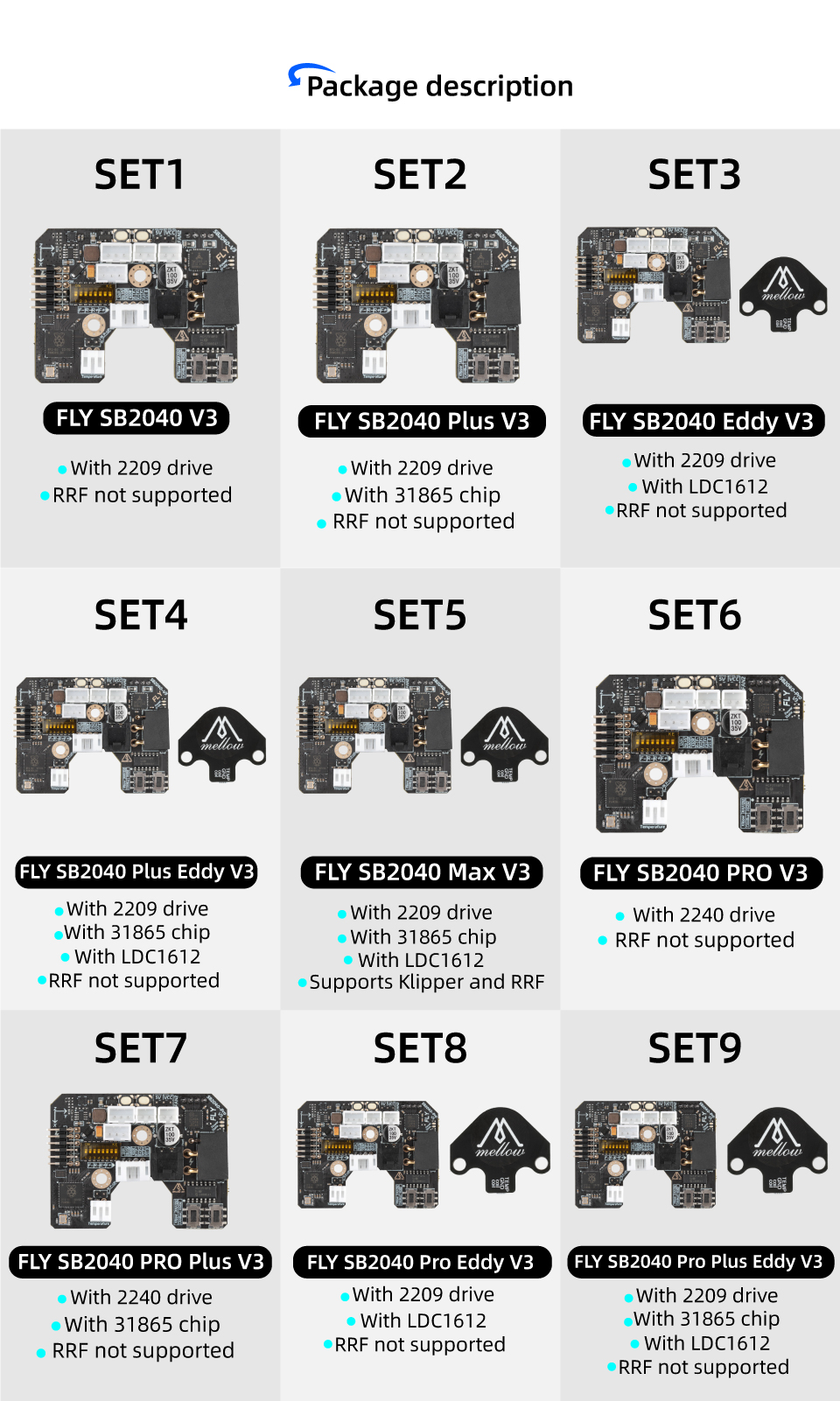

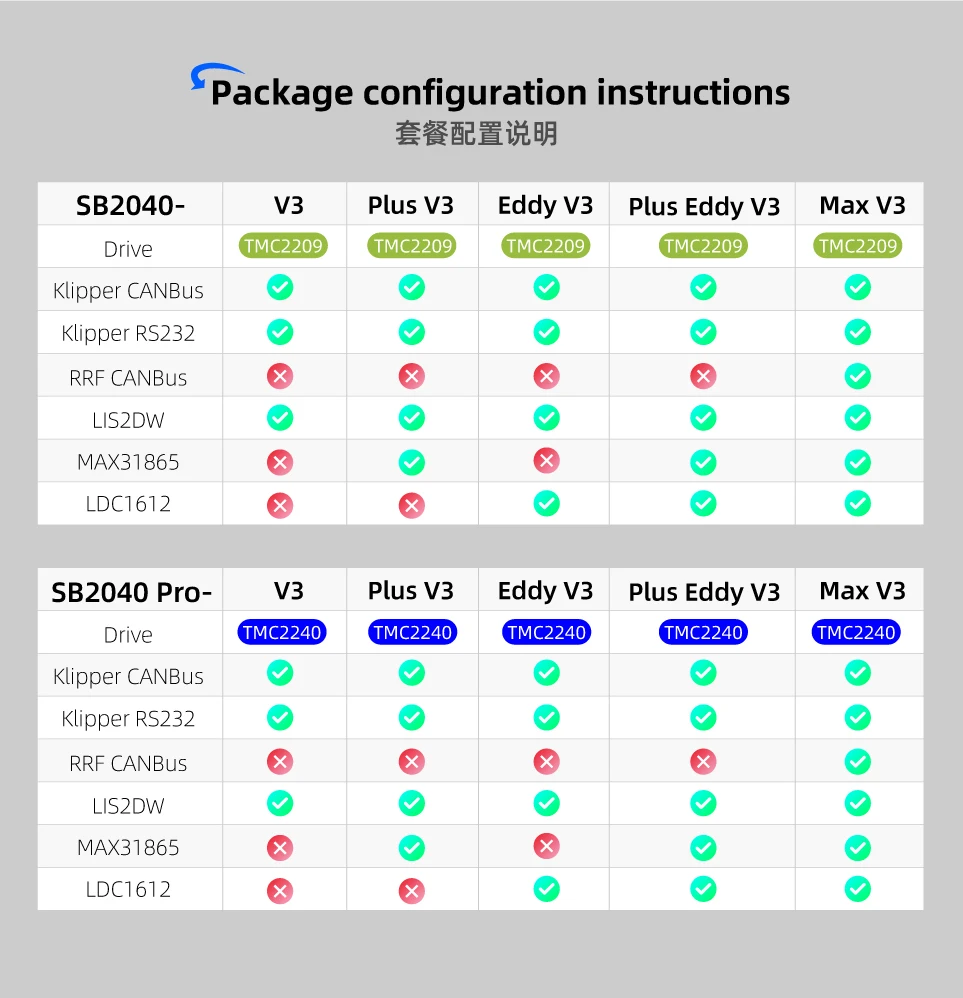

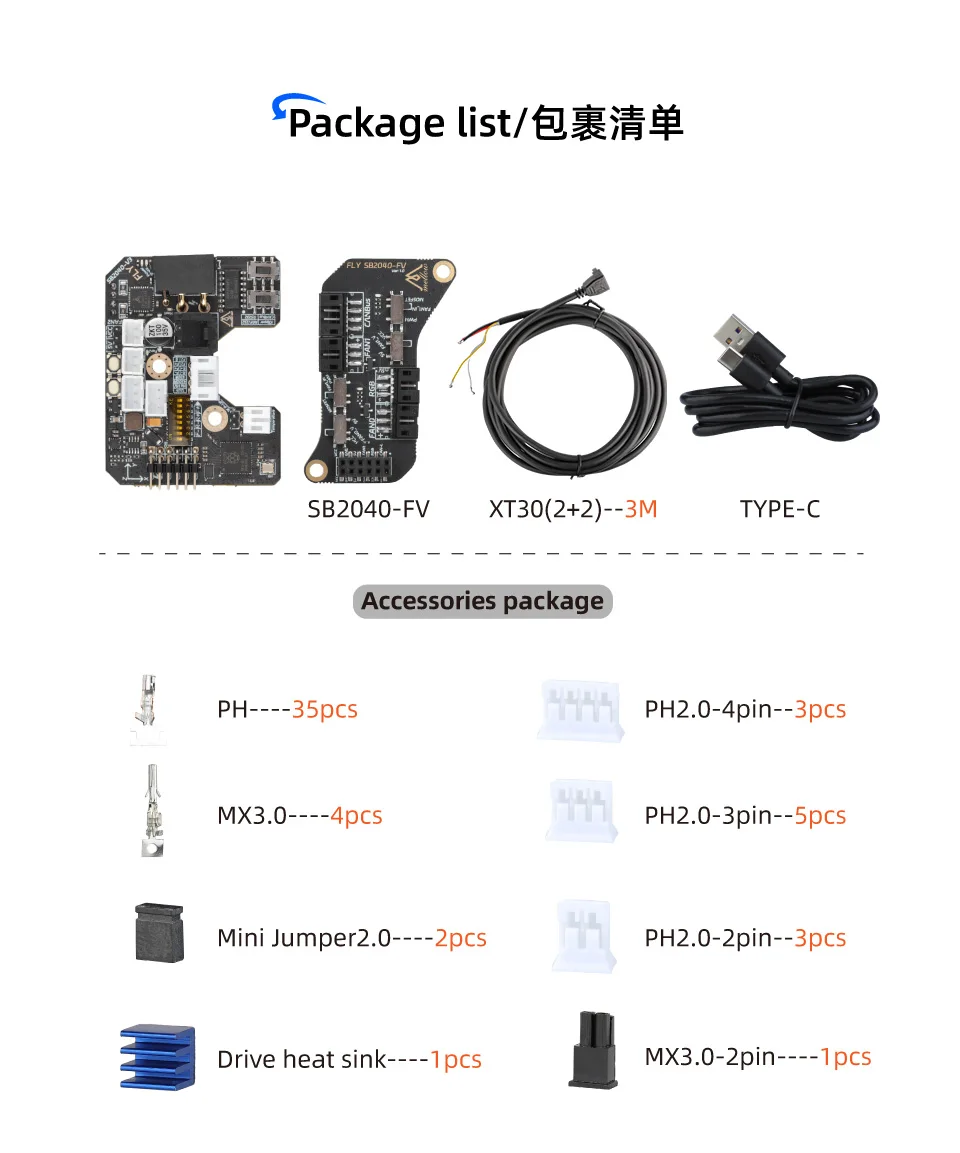

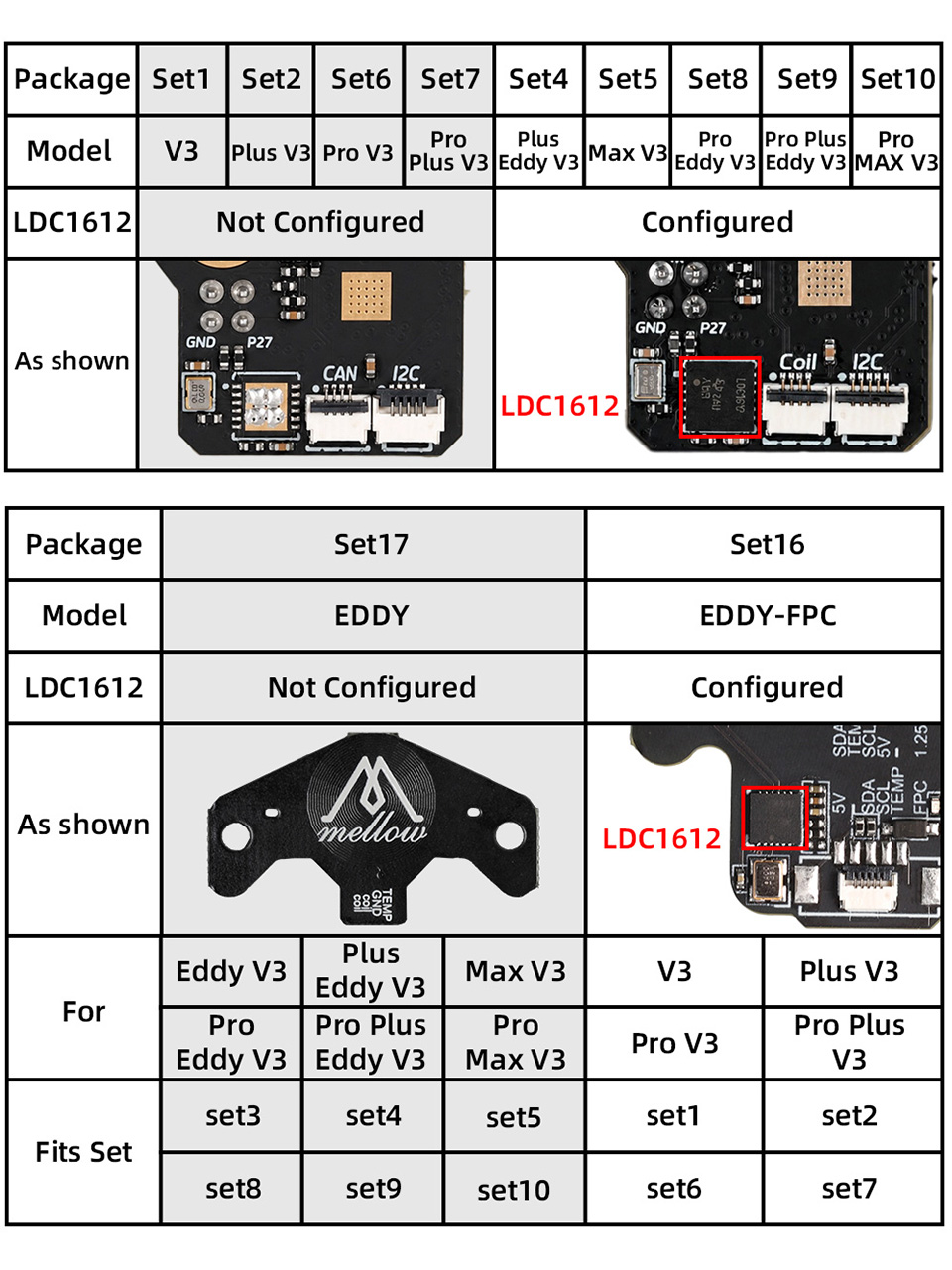

1Packege included

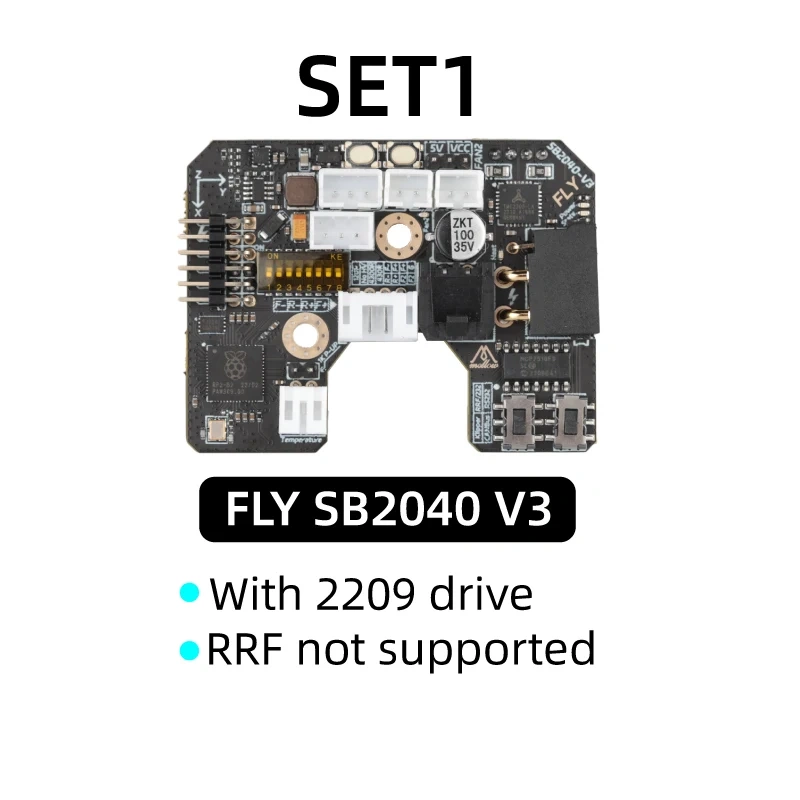

SET1

SB2040 V3 Board

3m Can Connection Cable

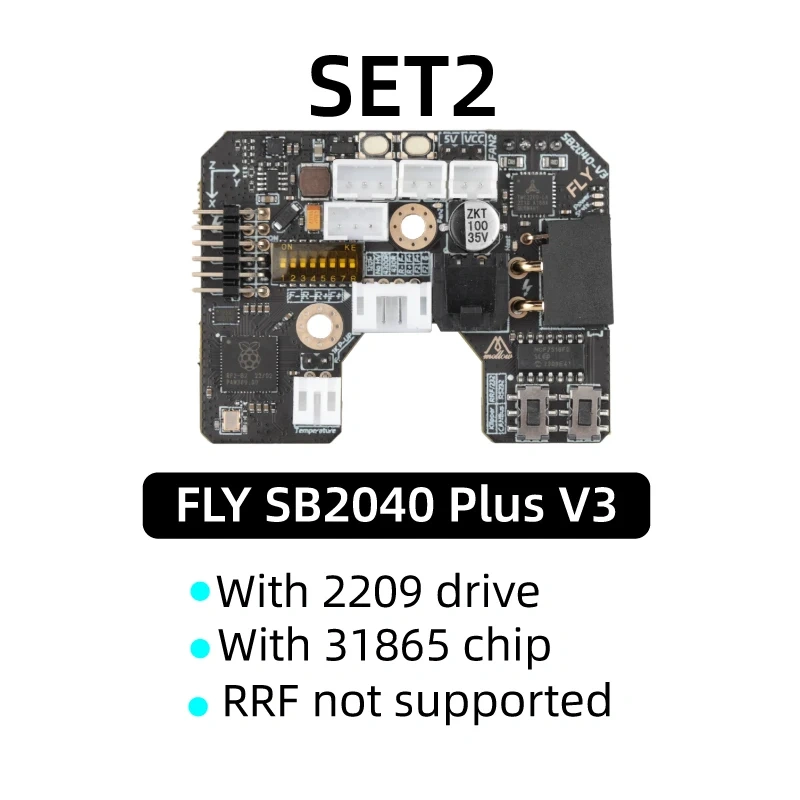

SET2

SB2040 Plus V3 Board (Add 31865 for PT100/PT1000)

3m Can Connection Cable

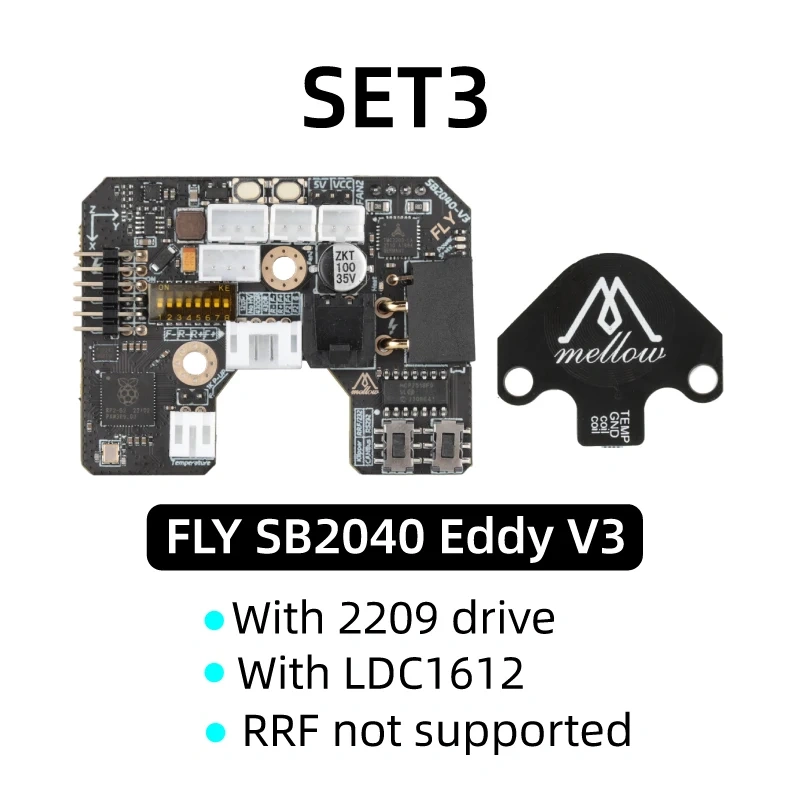

SET3

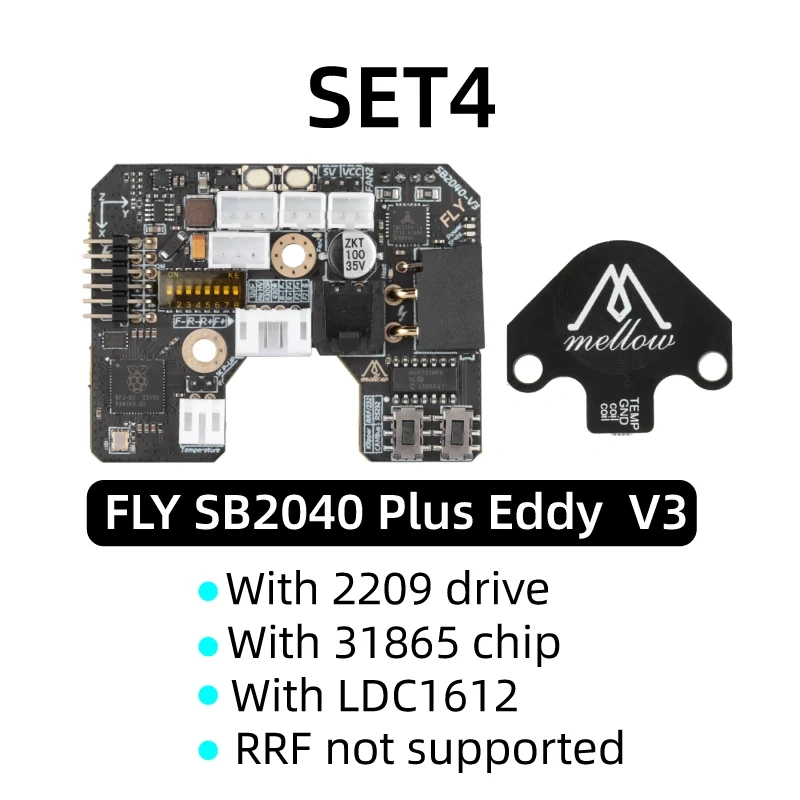

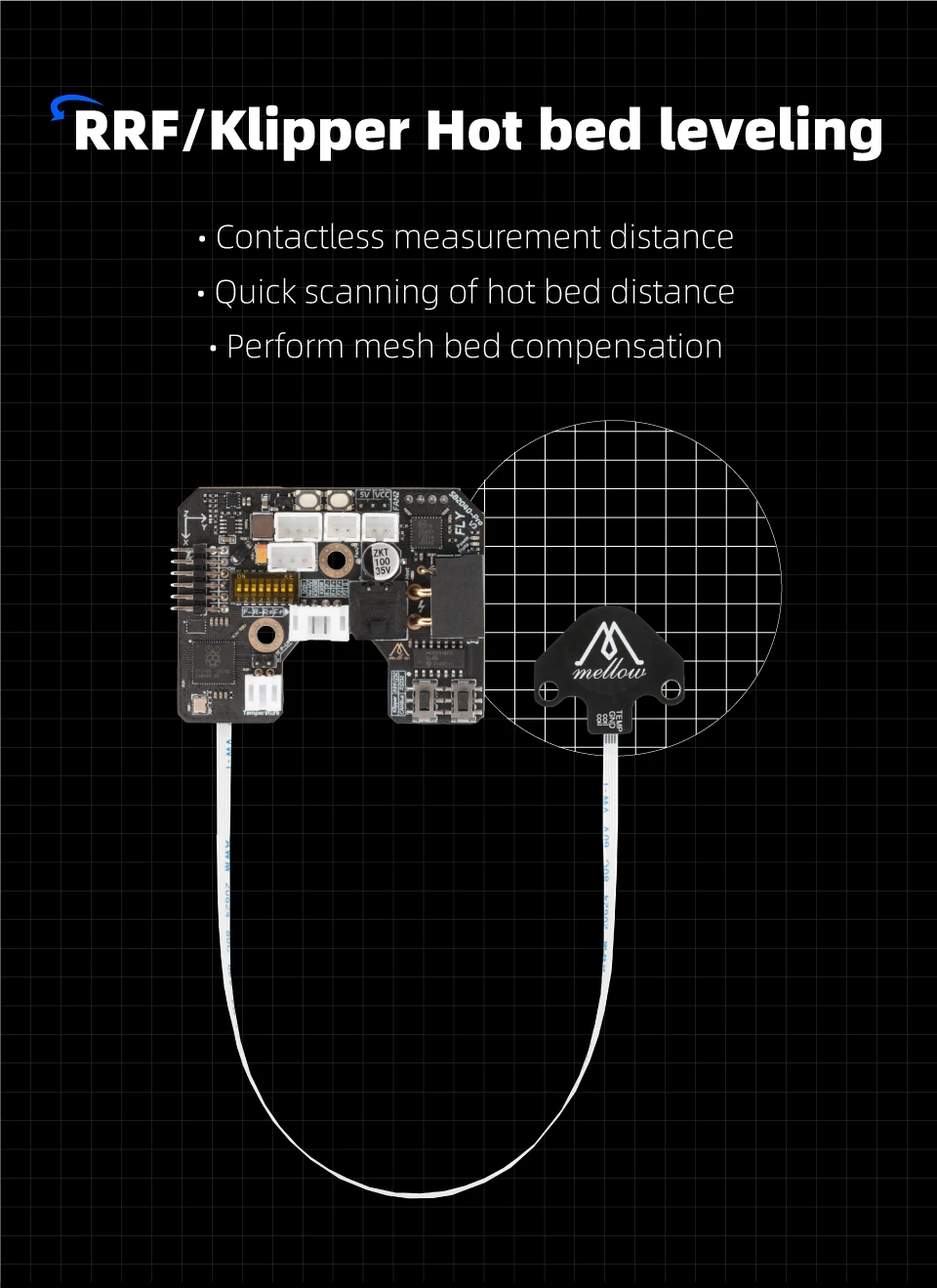

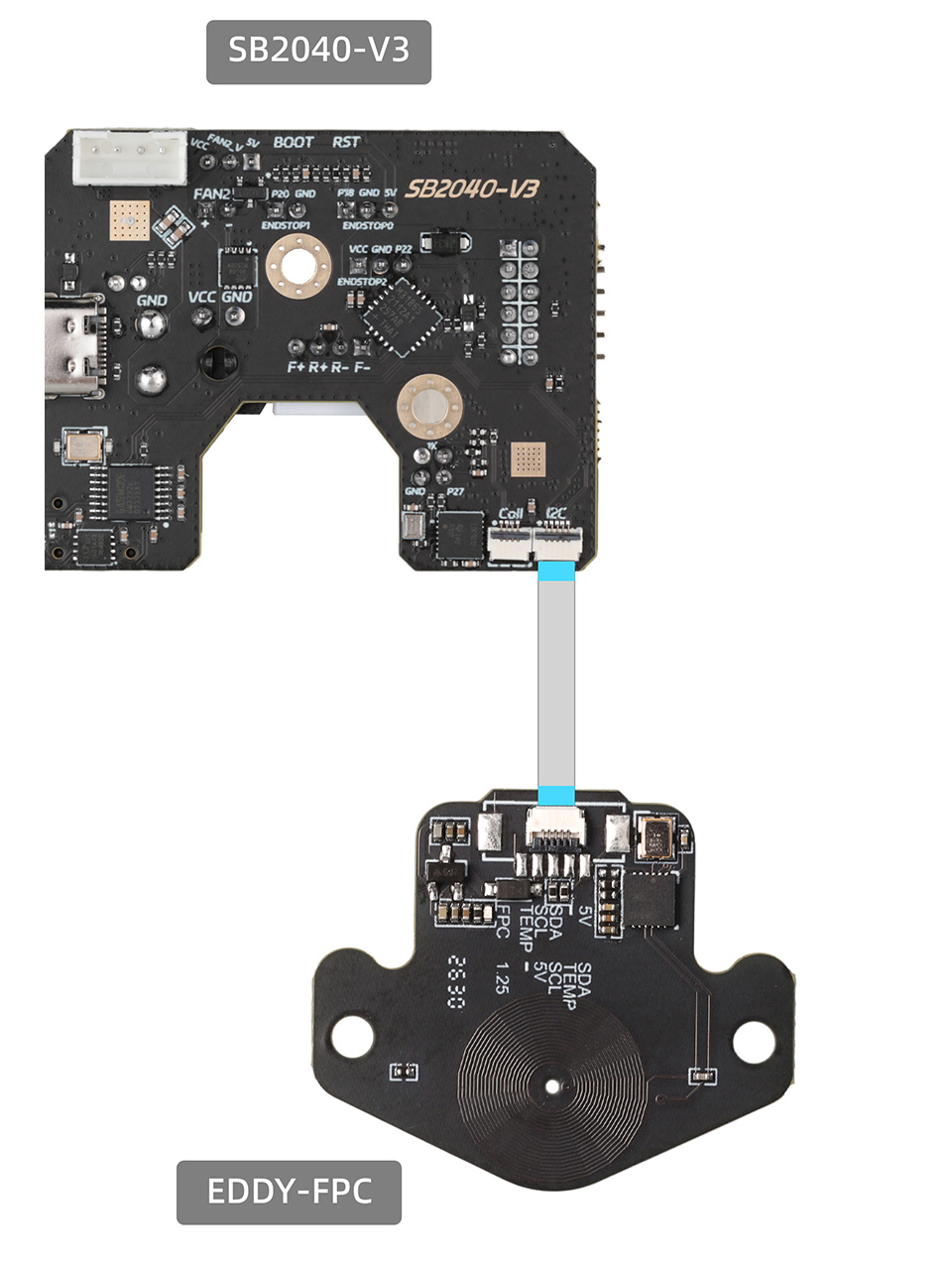

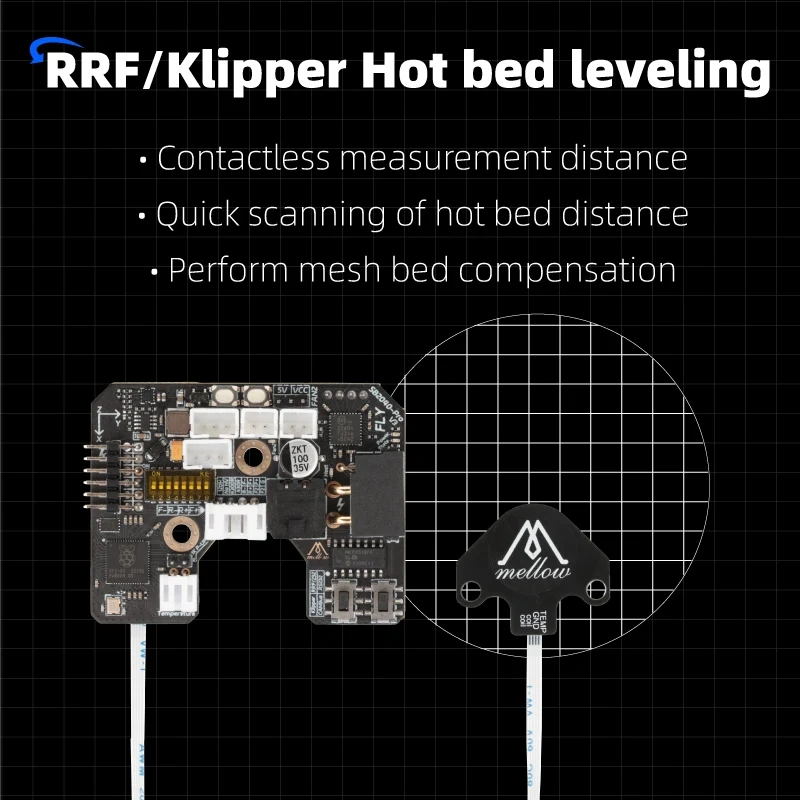

SB2040 EDDY V3 Board (onboard 1612 chip for Klipper mesh bed compensation leveling)

3m Can Connection Cable

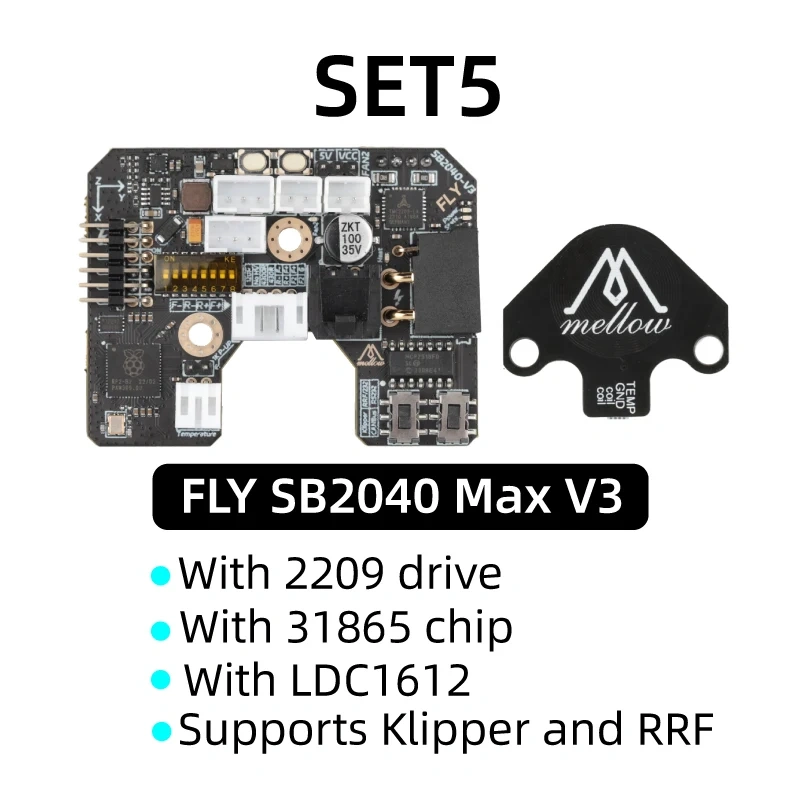

SET5

SB2040 Max V3 Board (Add 31865 for PT100/PT1000&Can be used for RRF and Klipper, onboard 1612 chip for RRF mesh bed compensation leveling)

3m Can Connection Cable

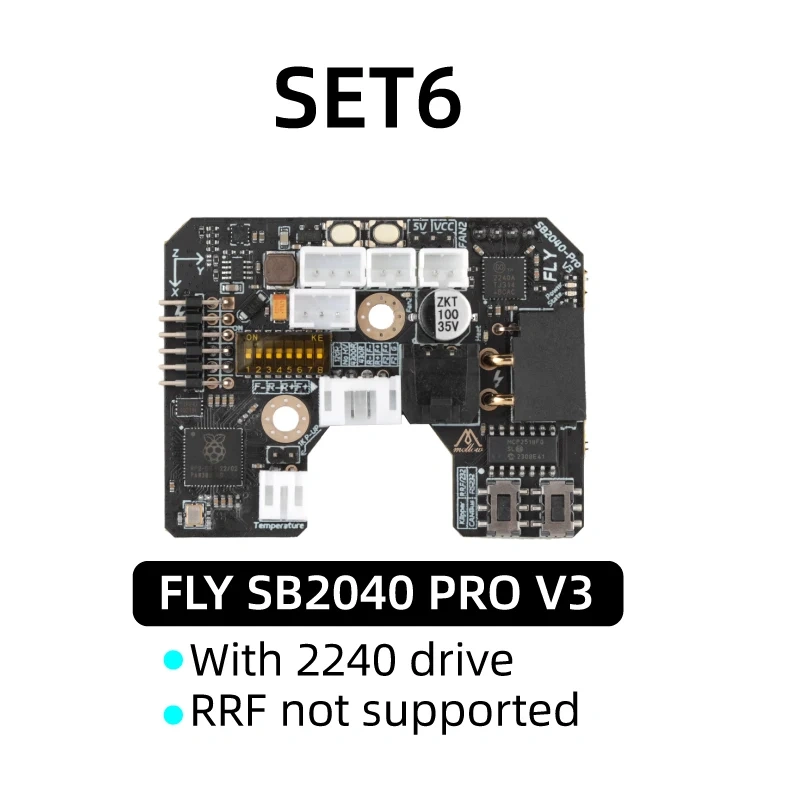

SET6

SB2040 Pro V3 Board

3m Can Connection Cable

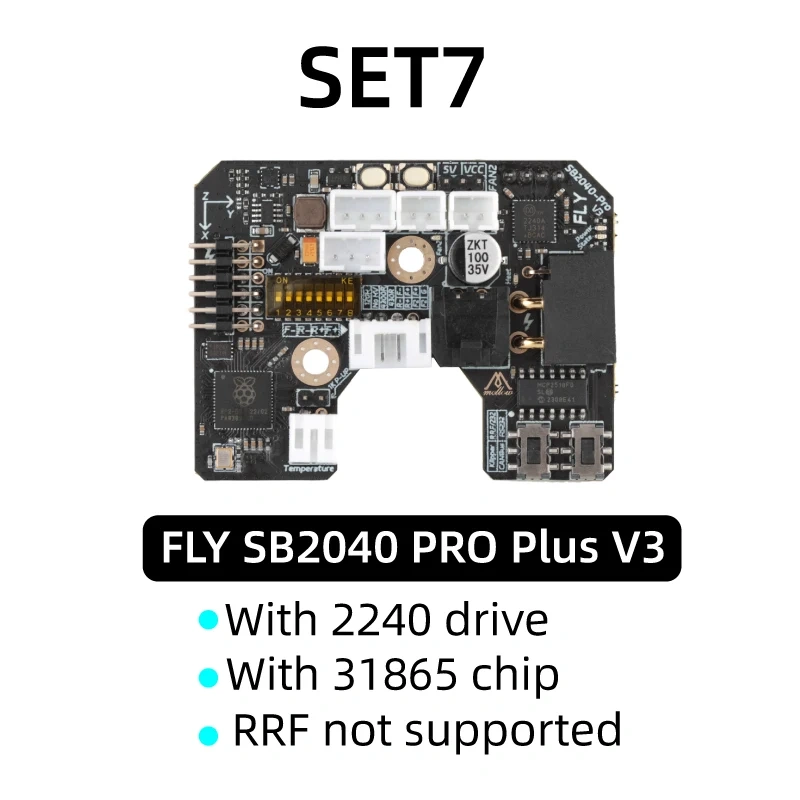

SET7

SB2040 Pro Plus V3 Board (Add 31865 for PT100/PT1000)

3m Can Connection Cable

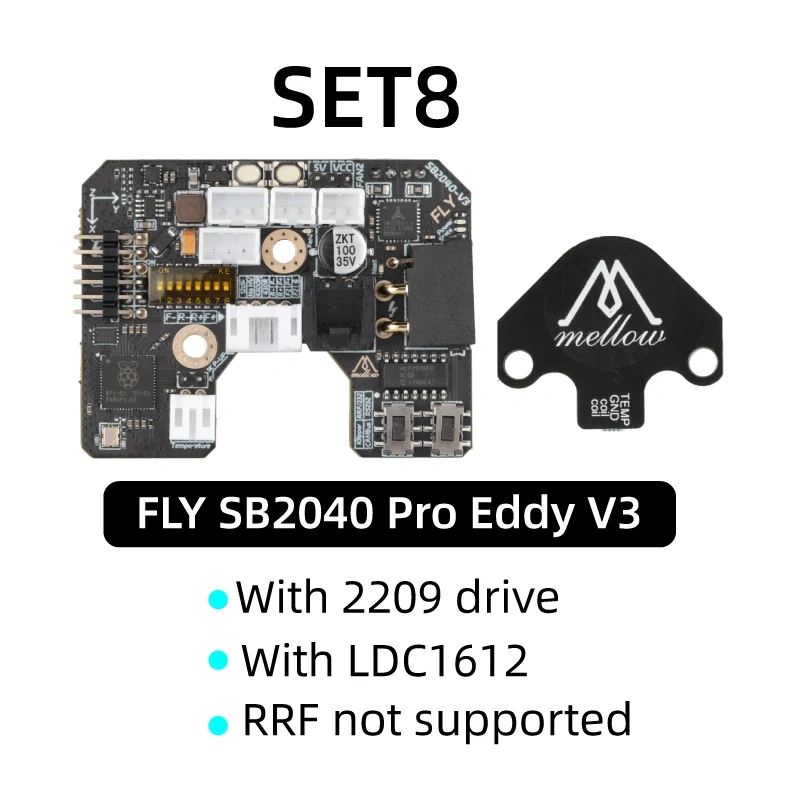

SET8

SB2040 Pro EDDY V3 Board (onboard 1612 chip for Klipper mesh bed compensation leveling)

3m Can Connection Cable

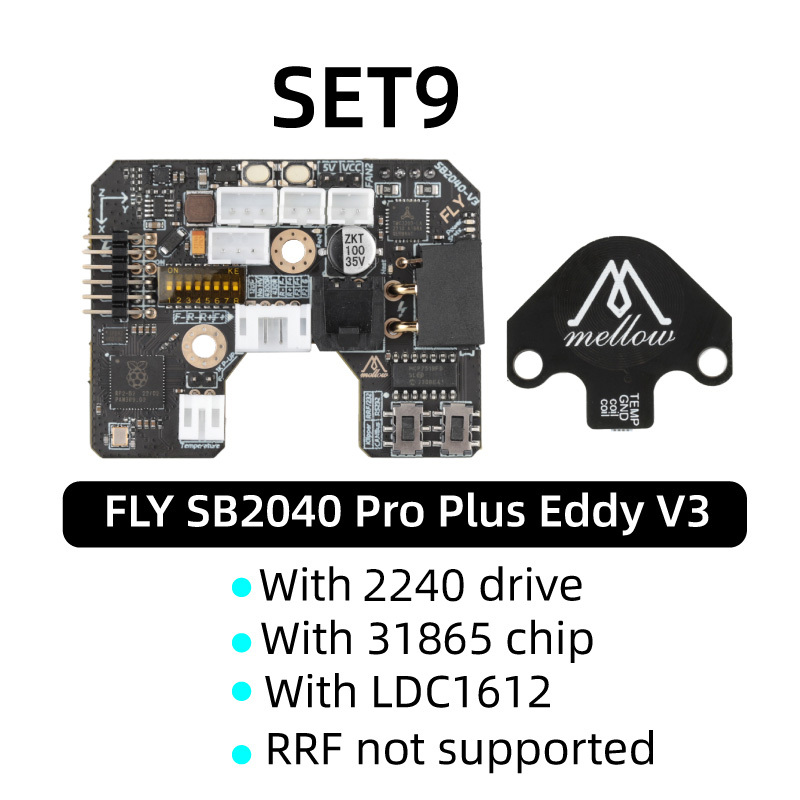

SET9

SB2040 Pro Plus EDDY V3 Board (onboard 1612 chip for Klipper mesh bed compensation leveling)

3m Can Connection Cable

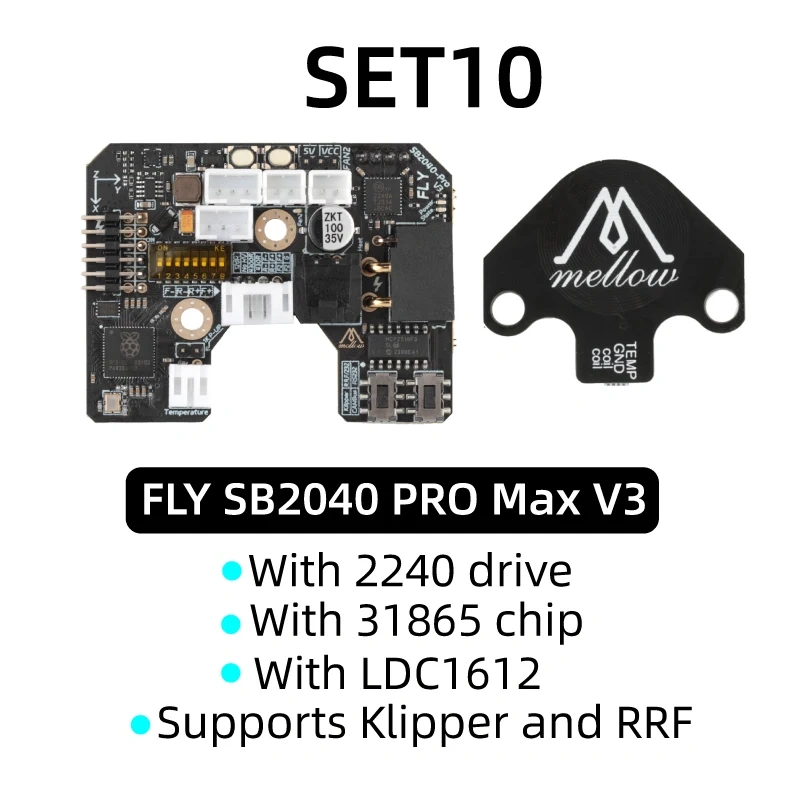

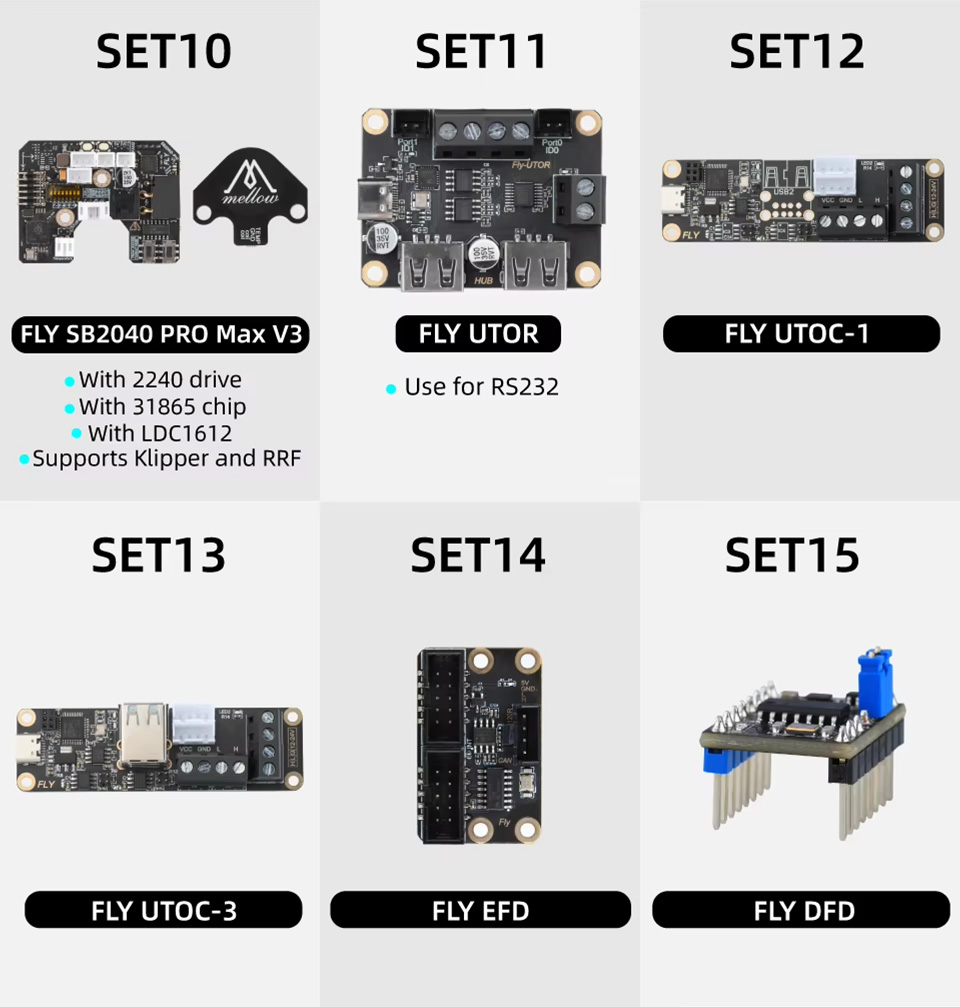

SET10

SB2040 Pro Max V3 Board (Add 31865 for PT100/PT1000&Can be used for RRF and Klipper, onboard 1612 chip for RRF mesh bed compensation leveling)

3m Can Connection Cable

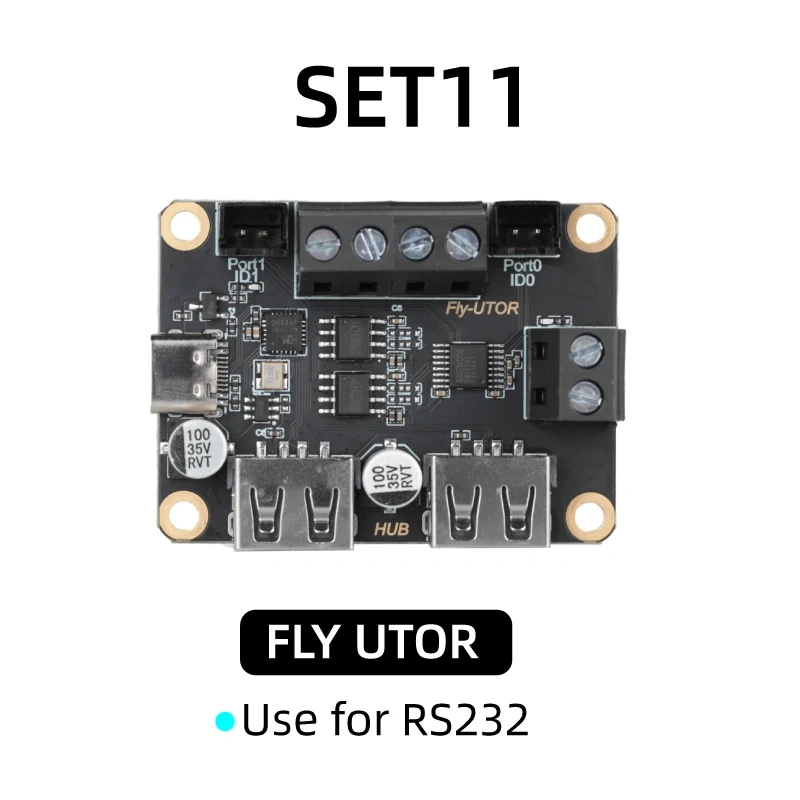

SET11

UTOR Board (For RS232)

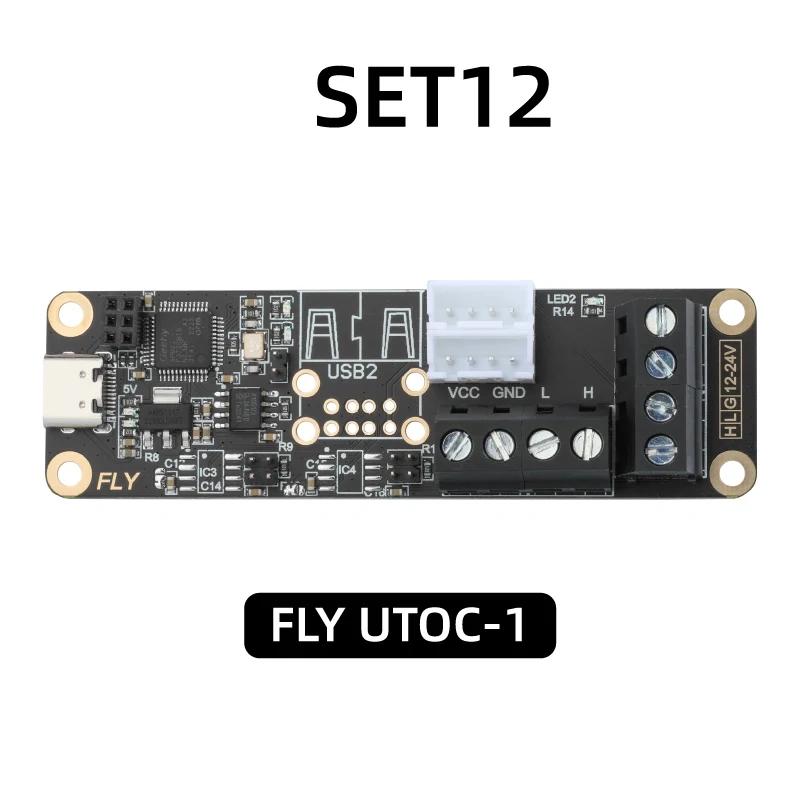

SET12

UTOC-1 Board(For Klipper Can)

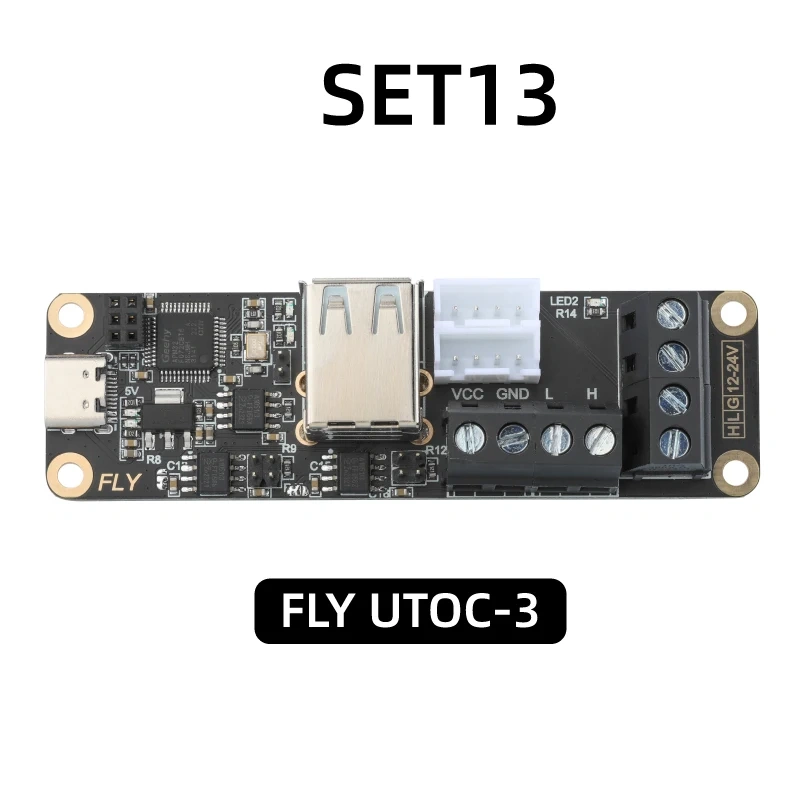

SET13

UTOC-3 Board(For Klipper Can)

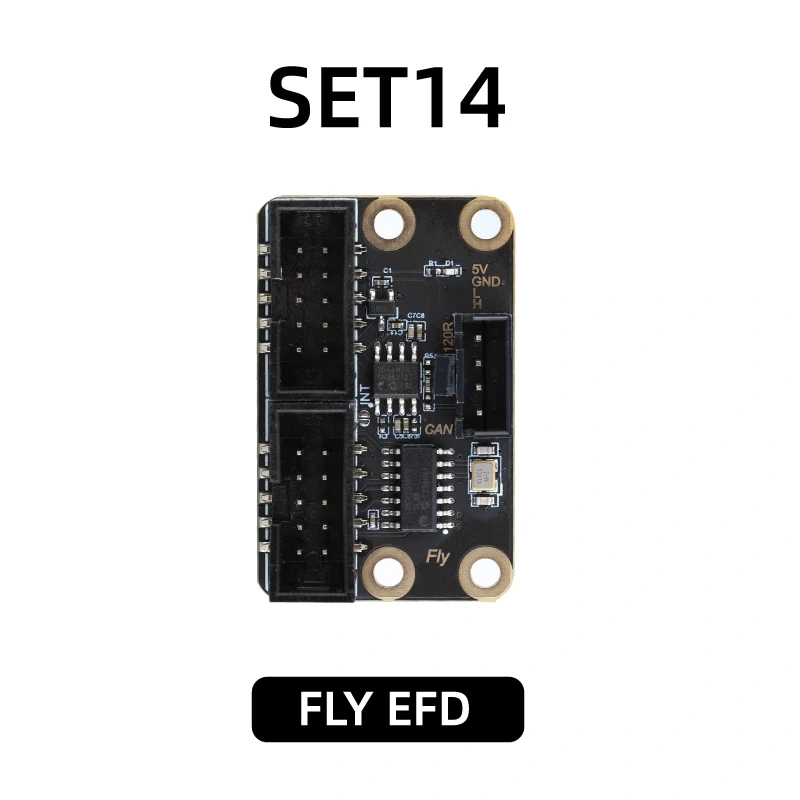

SET14

EFD Board(For RRF Can)

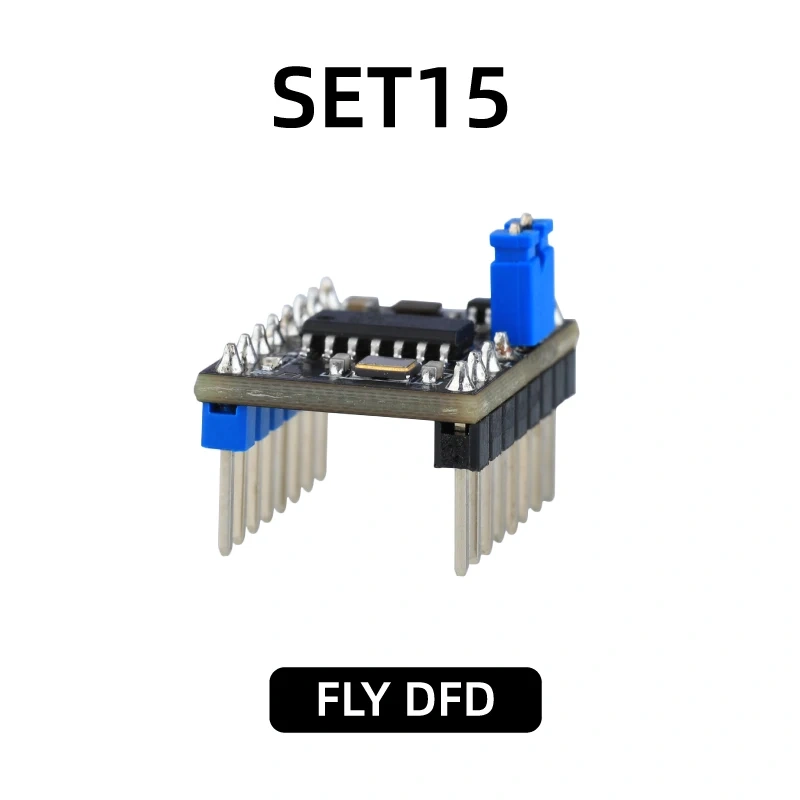

SET15

DFD Board (For RRF Can)

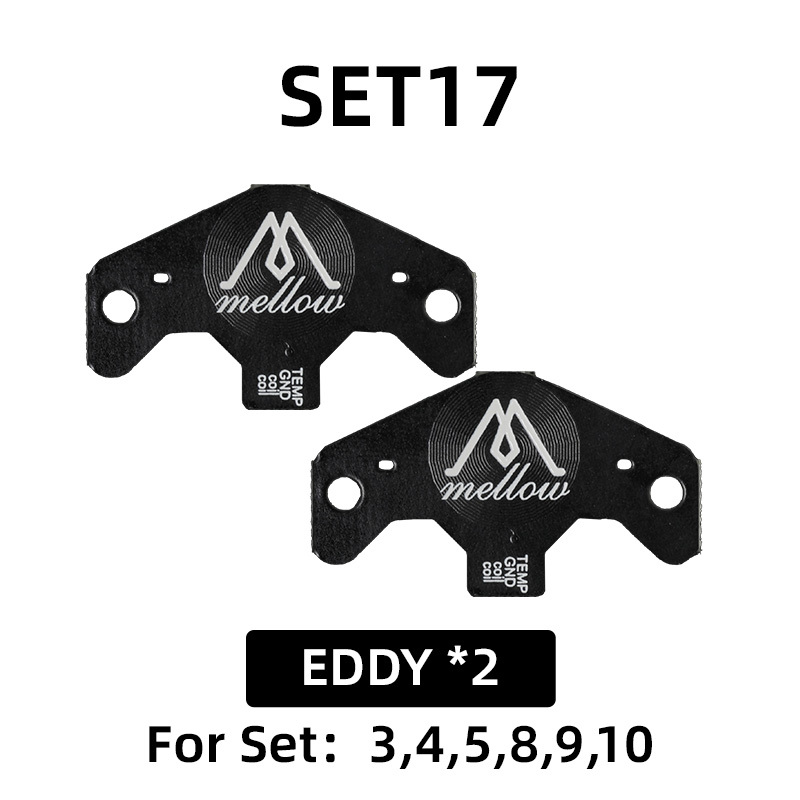

Common problem:

1, UTOC-1 and UTOC-3 what is the difference ah

(1 can only be connected to the lower computer with CAN transceiver, 3 can be connected to those who support CAN but no CAN transceiver lower computer (only stm32, and usb link master control PA11/PA12), can only be connected to two lower computer without transceiver)

2,What terminals are used on the board

(PH2.0, XH2.54 and XT3.0)

3,What upper computer does Can support

(Your host system kernel can be used if it supports can)

4,Can the spider be used

(Can be used)

5,Do I have to buy a can board with UTOC Or is there anything that needs to be used with UTOC

(upper computer - usb - motherboard with can port - can tool board, if the motherboard has a can port you do not need to utoc)

Hello everyone, if you are using Voron Tap, please pay attention to this problem.This will cause the tool board temperature to display abnormally.
