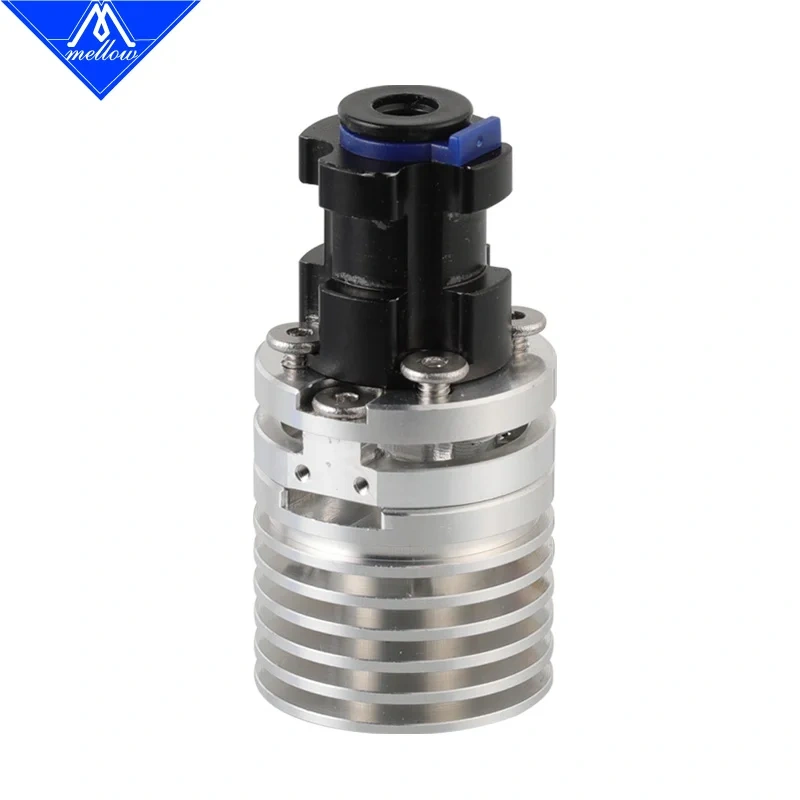

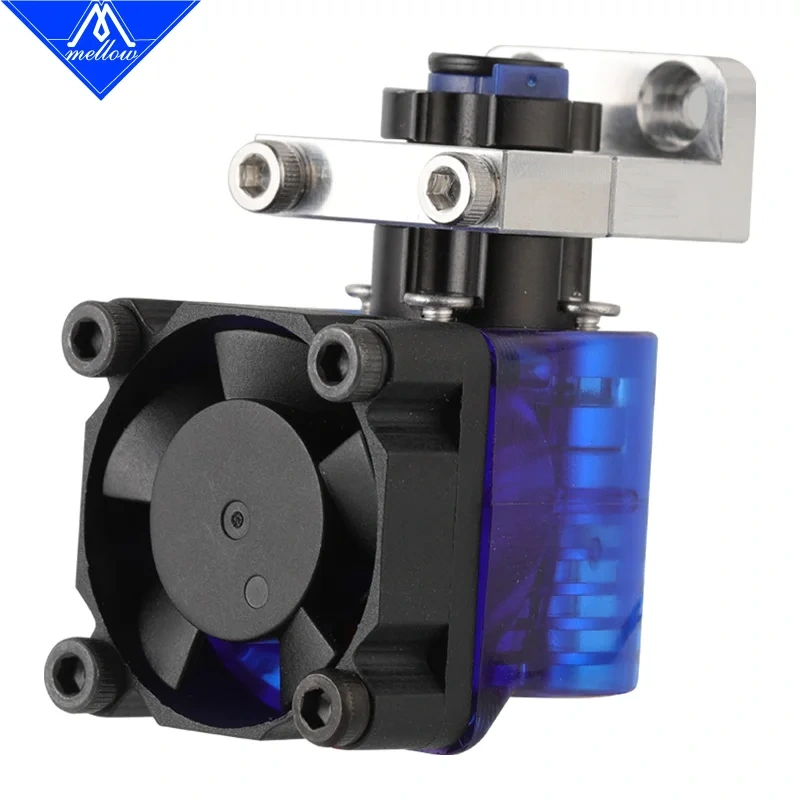

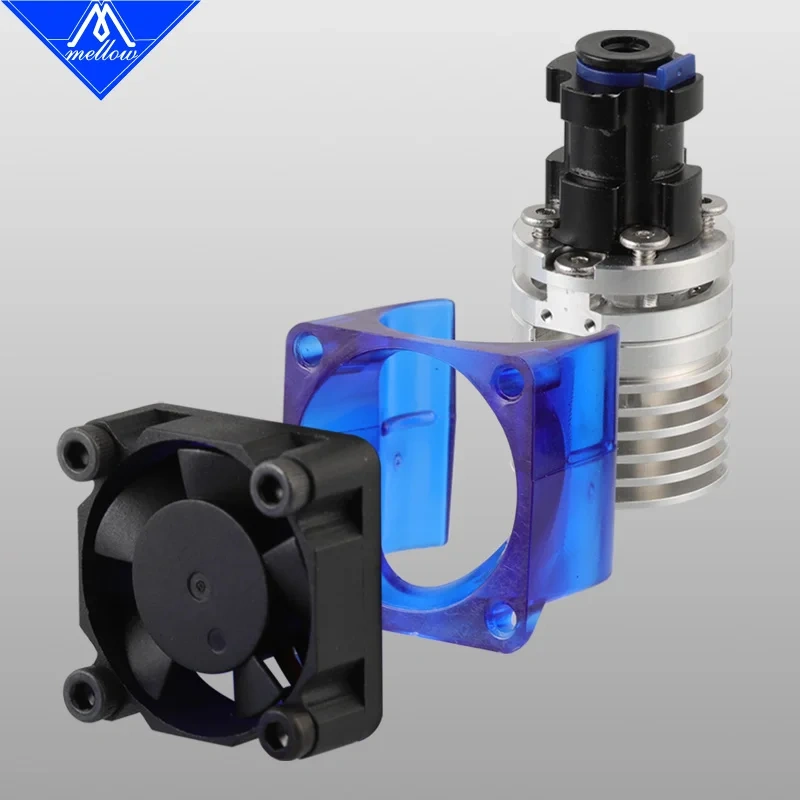

Mellow ALPS-V6 Heatsink Smart Leveling Nozzle Probe For E3D V6 Volcano Hotend DIY 3D Printer Voron Vzbot Blv

1Mellow work team

Thank you for coming to our shop. We are committed to developing 3D printeraccessories that can be used on all 3D printers. We have 3 main product lines.NF Extruders, NF Hotends and FLY Motherboards and Electronics. We hope ourproducts will bring you a better overall user experience. lf you have any ideasproducts, use, sales), please contact us. We look forward to hearing from you.

1Description

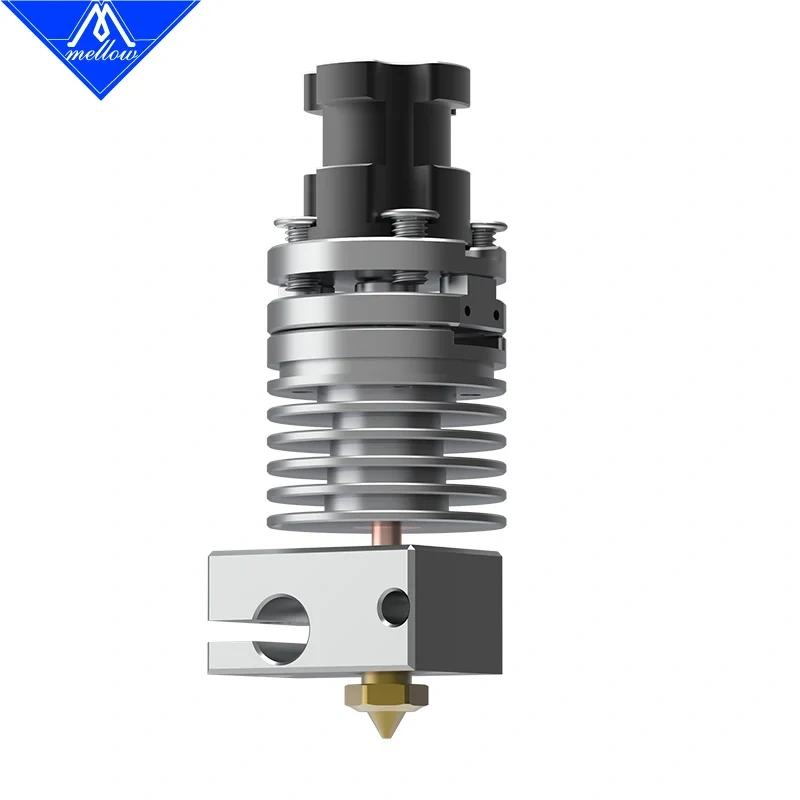

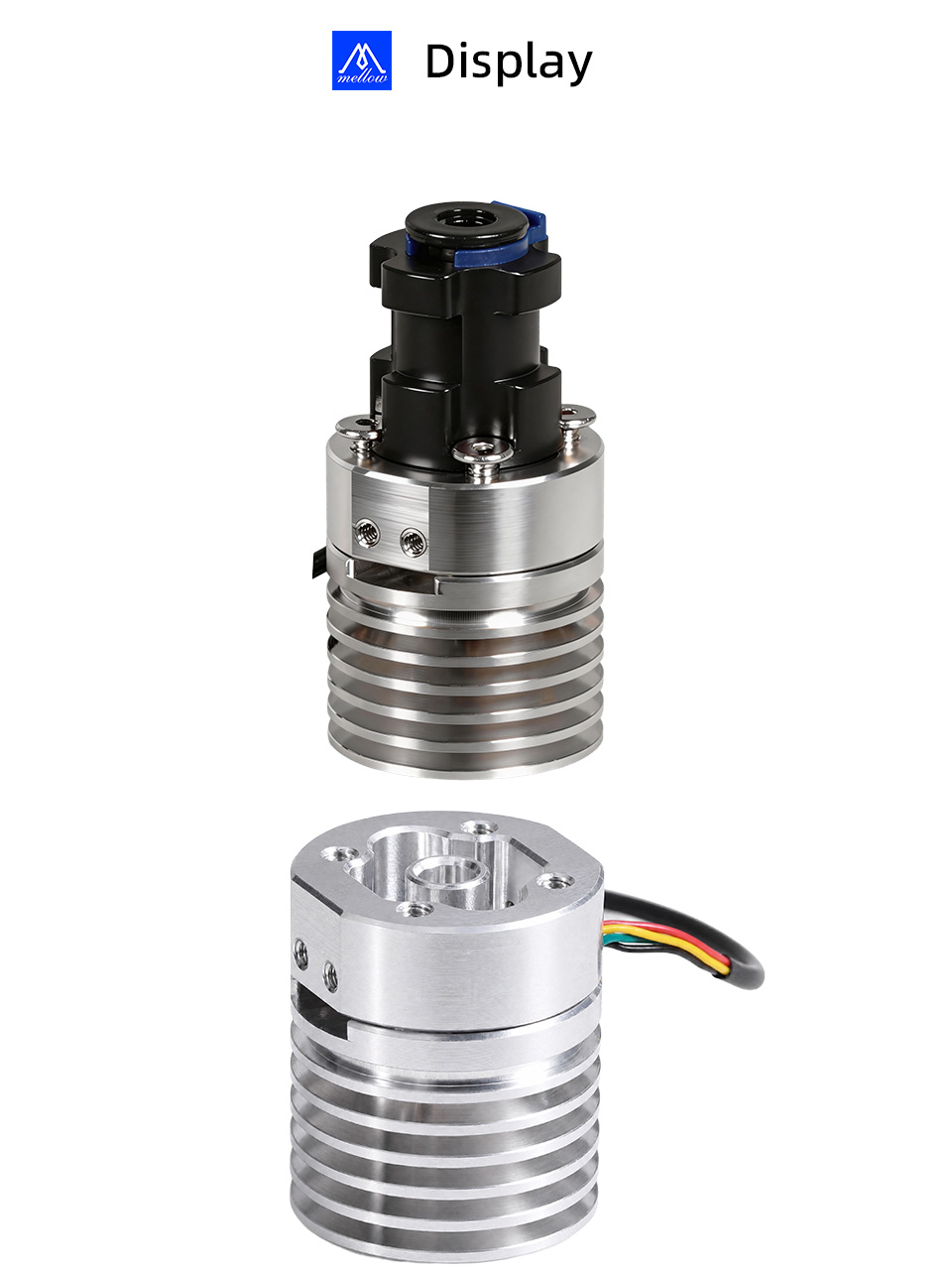

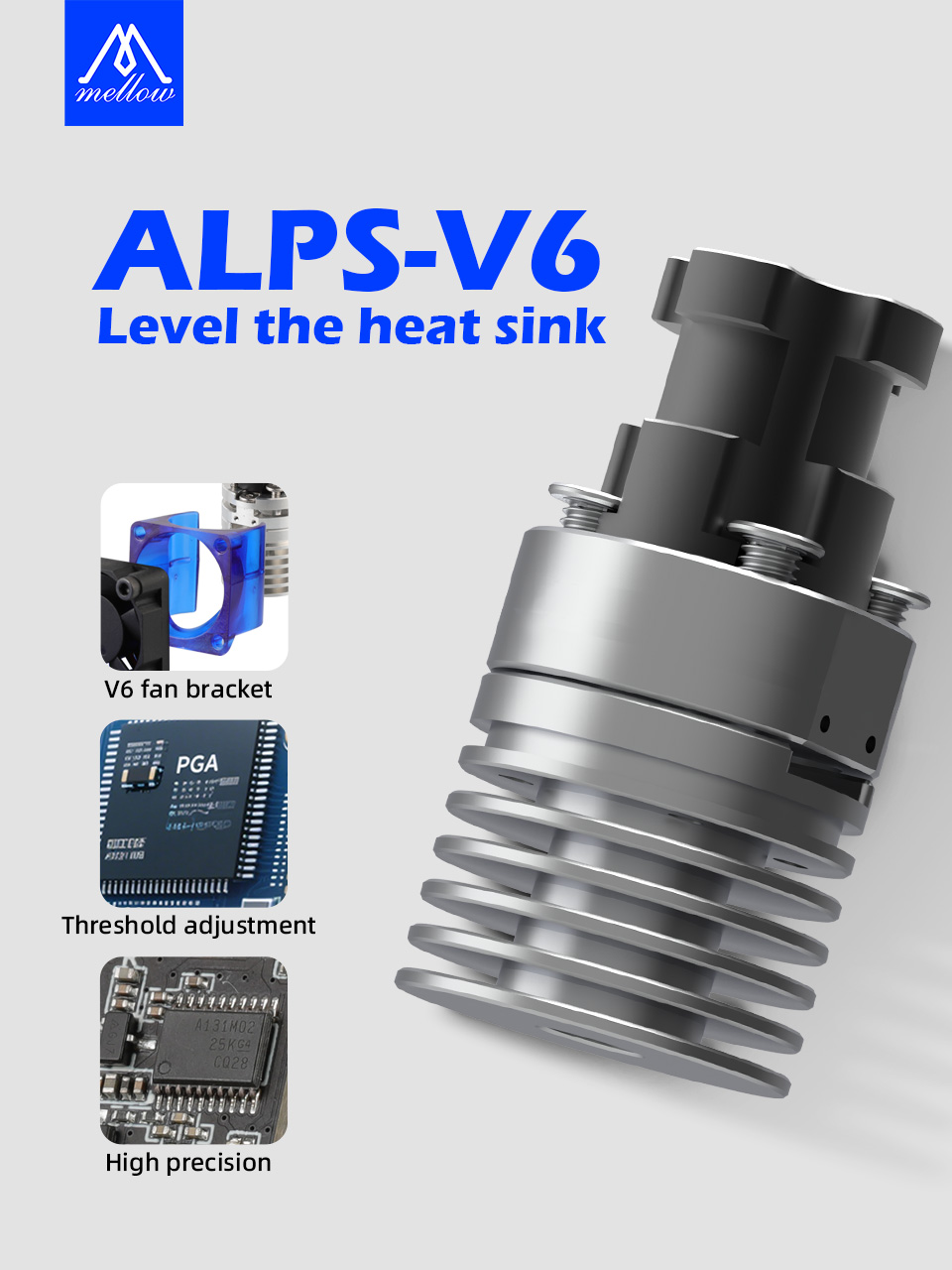

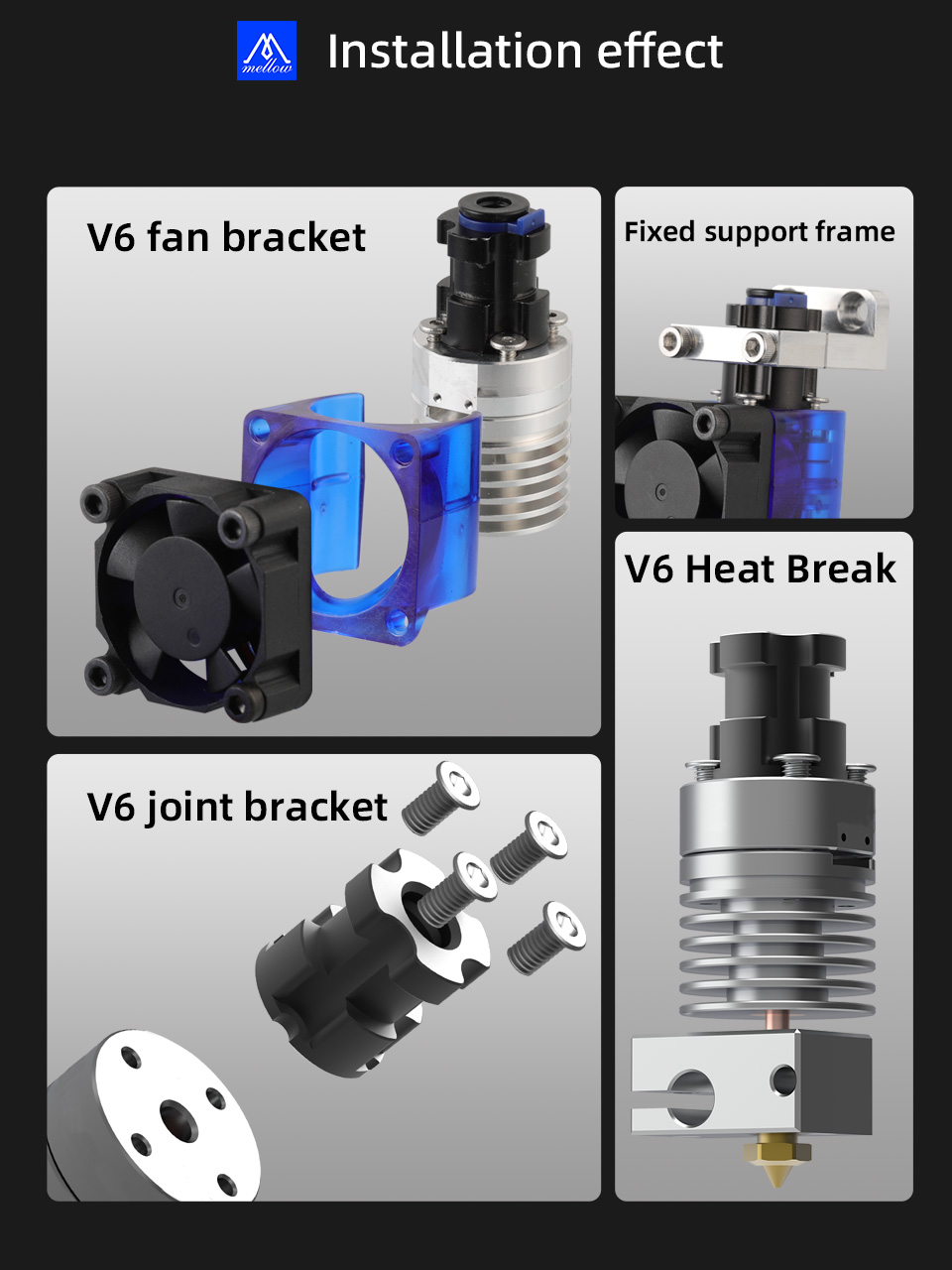

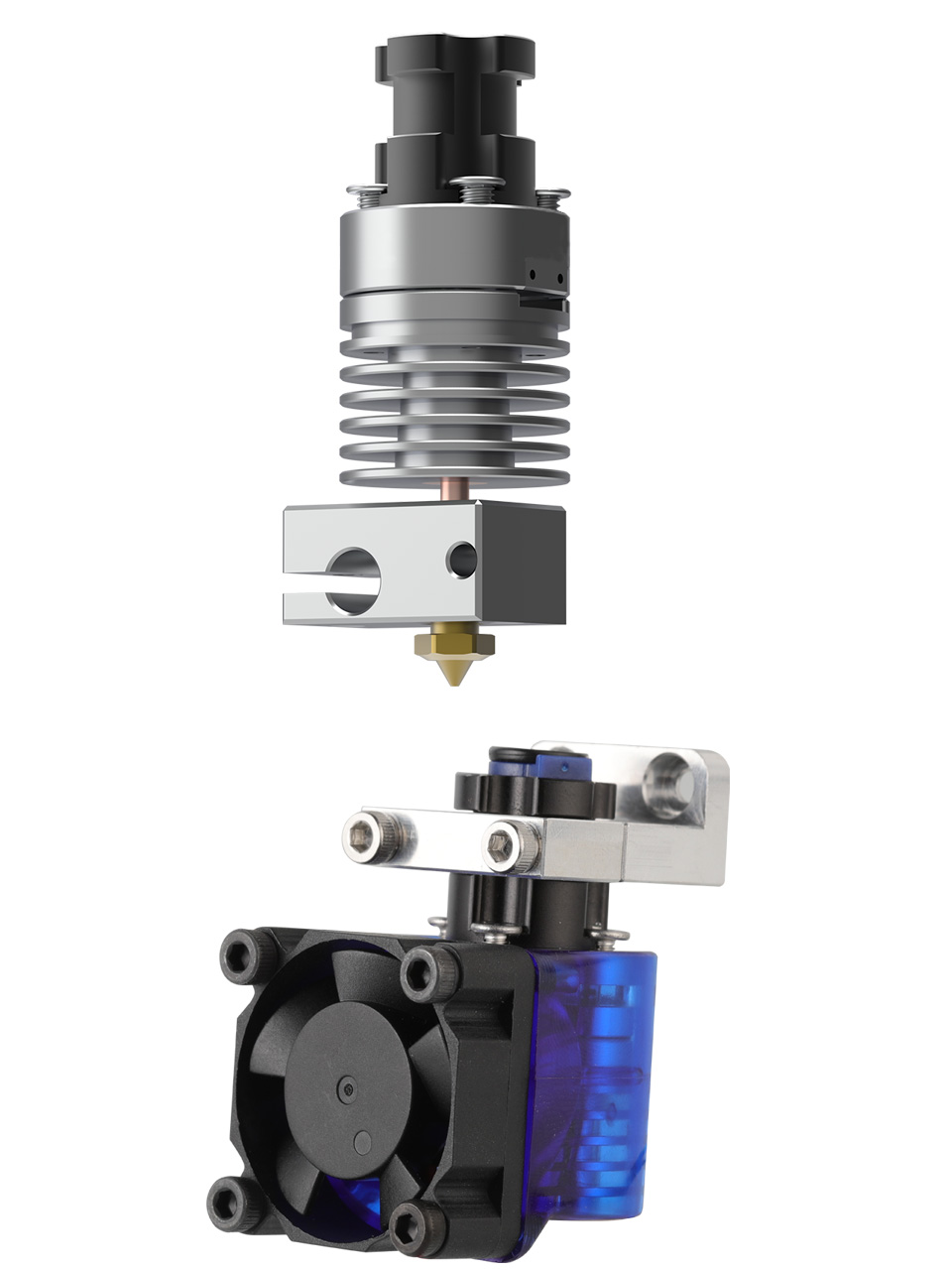

The Alps-V6 heatsink is designed to directly replace the original V6 heatsink, simplifying the DIY pressure leveling process. This heatsink is compatible with both V6 hotend mounts and Dragon hotend mounts and can achieve automatic pressure leveling when used with the ALPS pressure module. Combined with the V6 heatbreak, this heatsink forms a versatile hotend optimization solution.

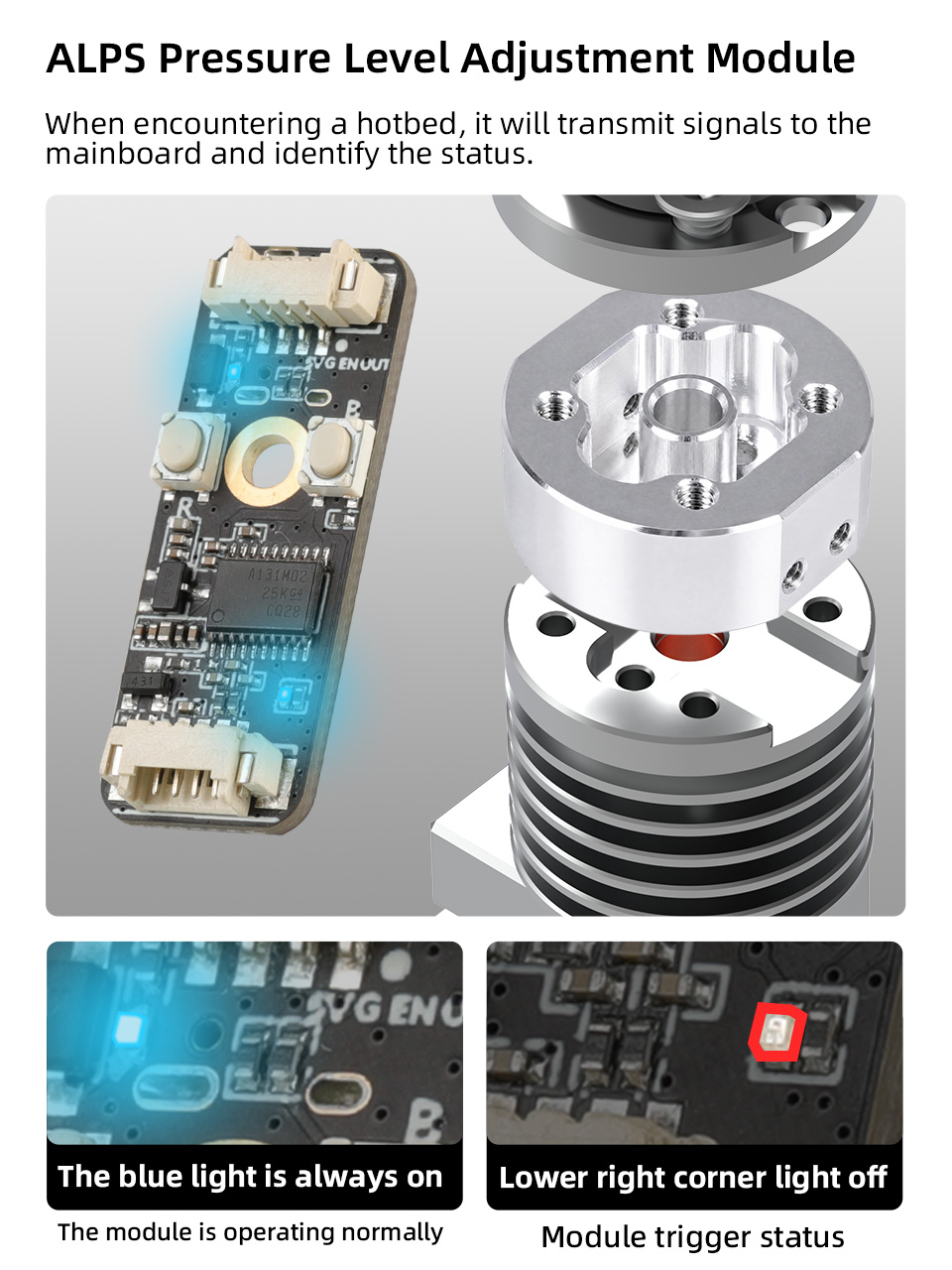

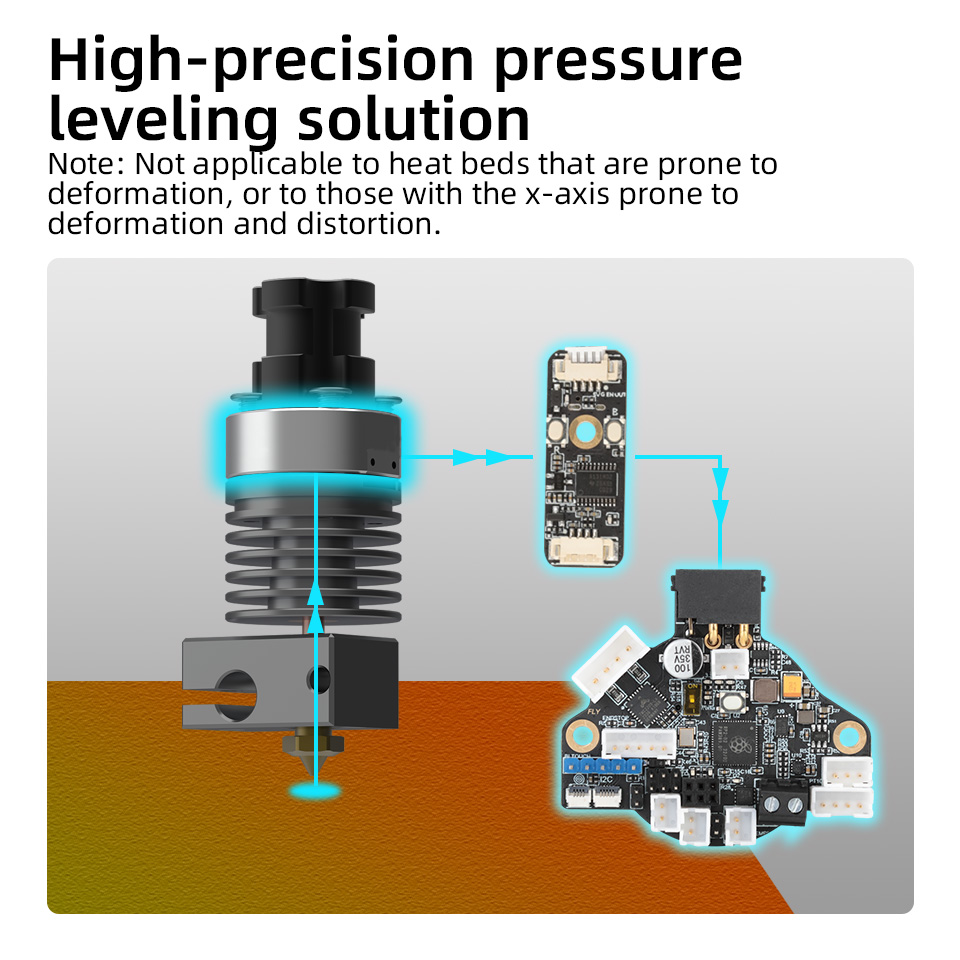

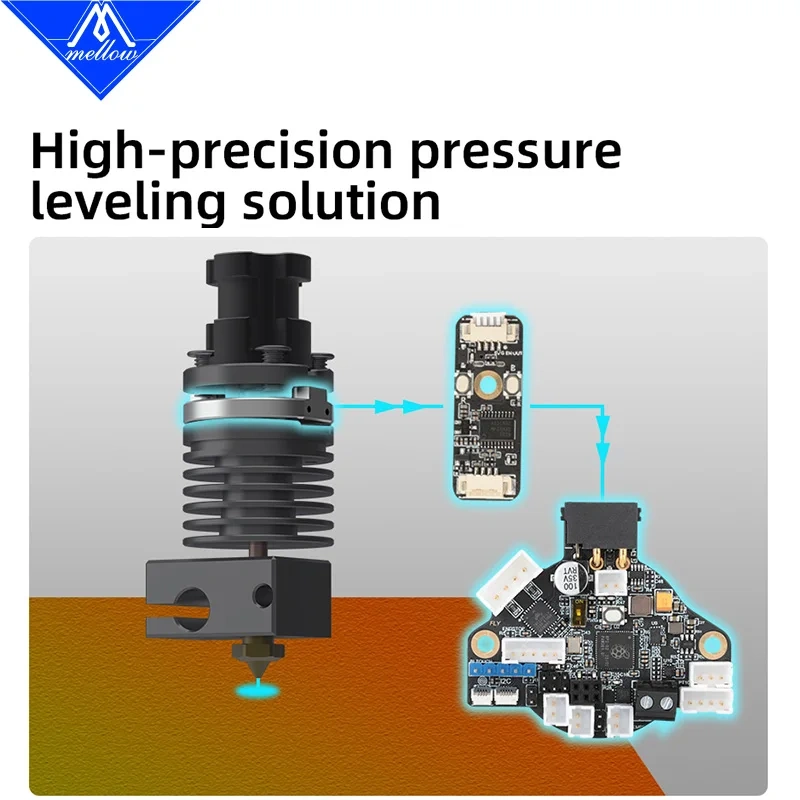

Highlights of the ALPS Pressure-Based Leveling Module

• Nozzle Calibration Probe

1. 24-Bit High-Precision ADC

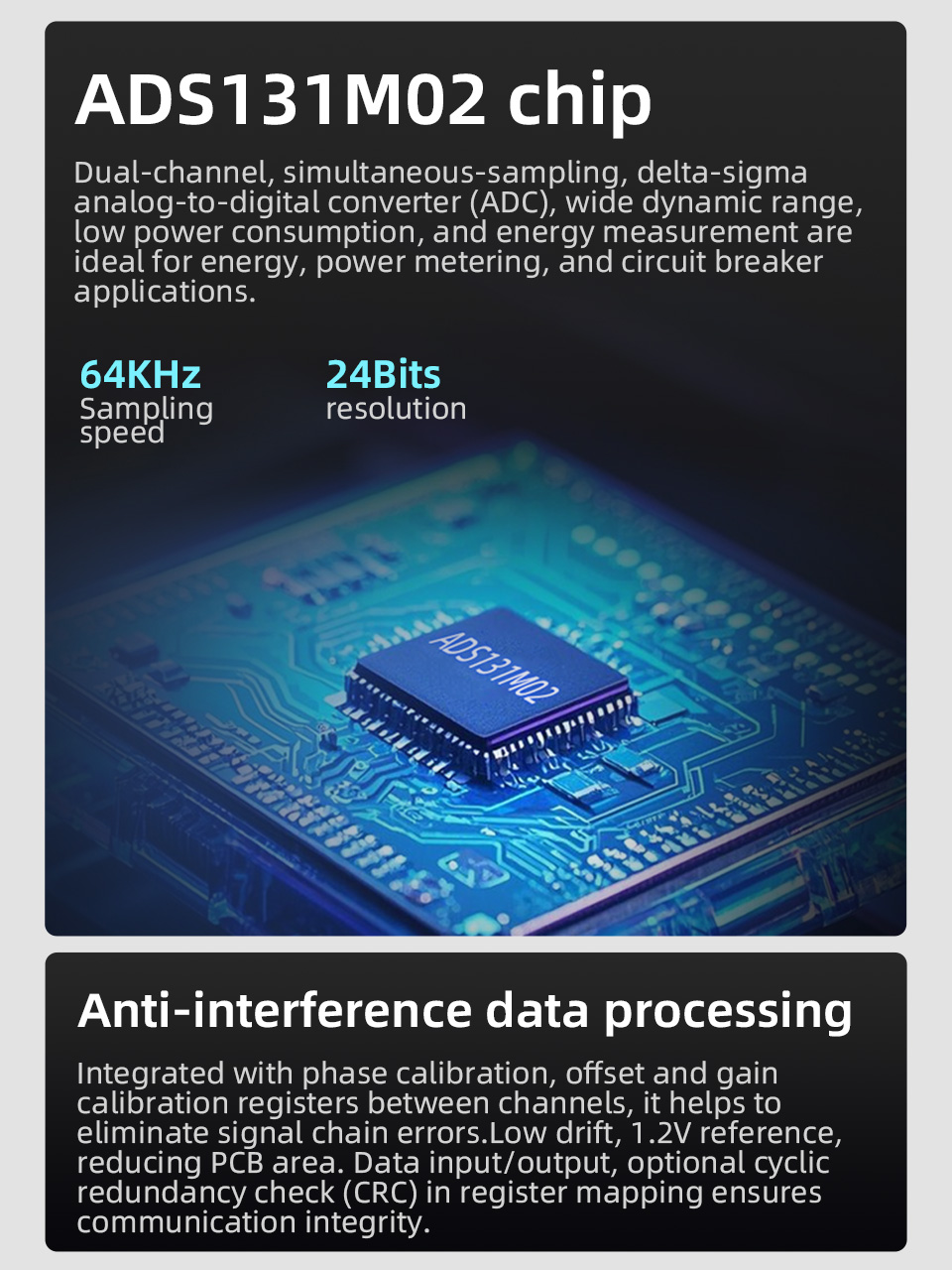

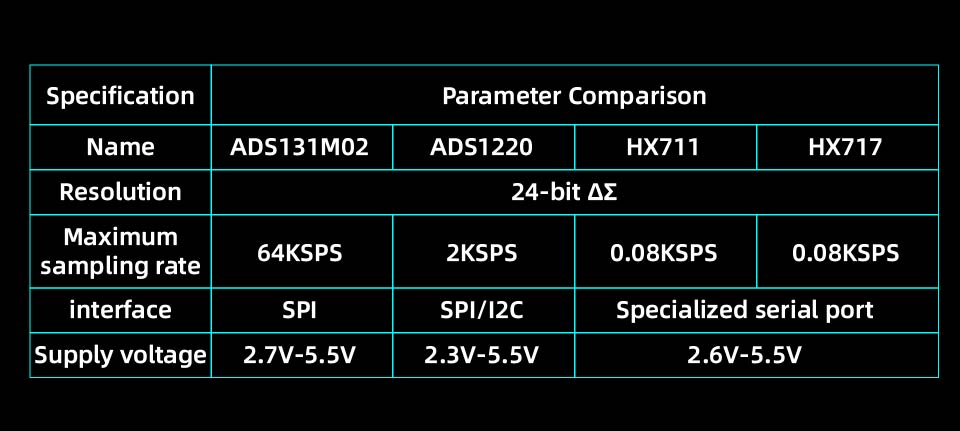

• ADS131M02 Chip: Sampling at 64 kHz to detect minute pressure changes, outperforming HX711-based sensors.

2. On-Chip Signal Amplification

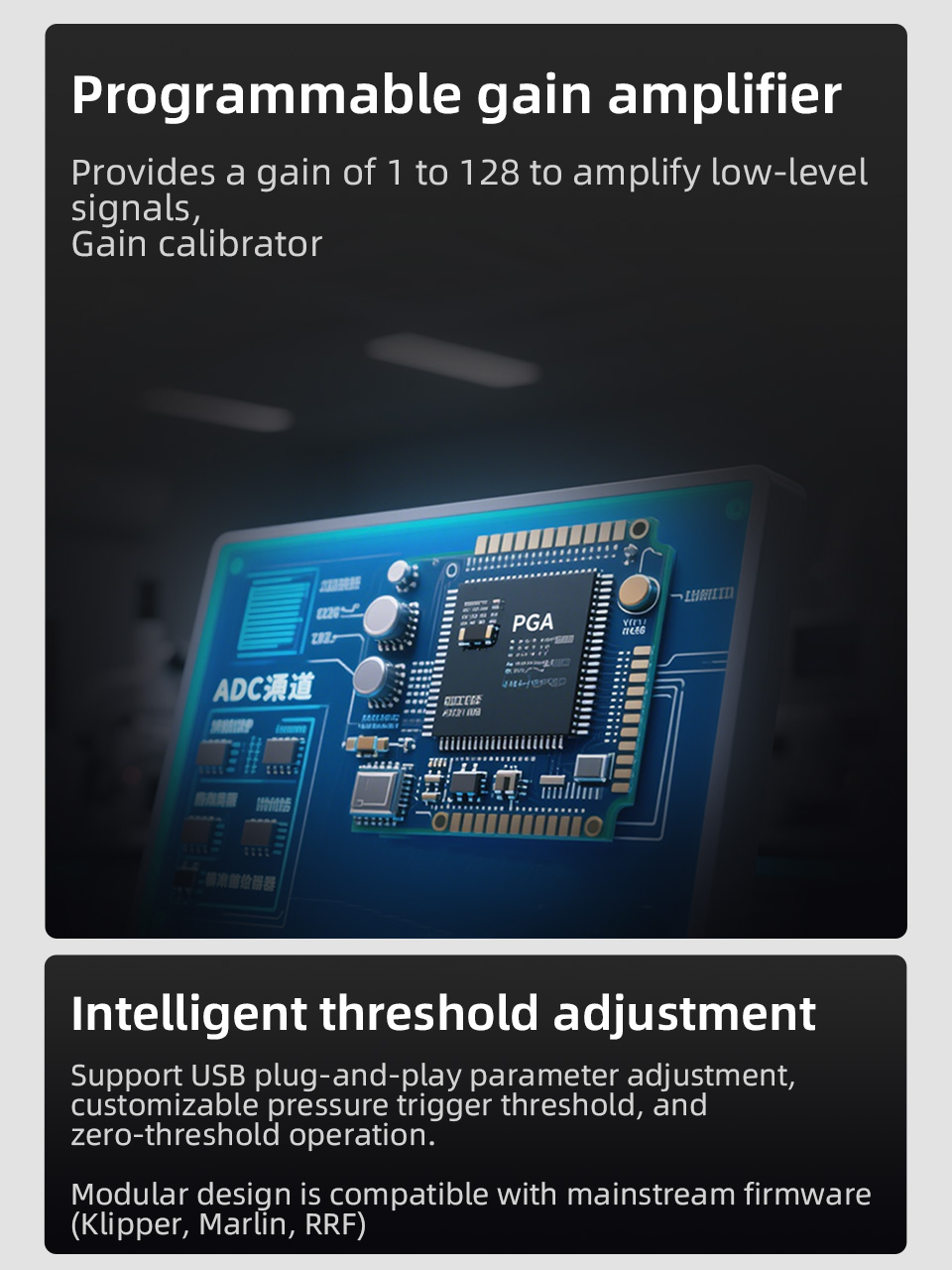

• 128× Gain: Enhances sensitivity and signal-to-noise ratio for reliable bed triggering.

3. Advanced Noise Reduction

• Low-Drift Reference & Kalman Filtering: Slashes measurement error by over 90 %, delivering ultra-stable readings.

4. Plug-and-Play Threshold Adjustment

• USB Interface: Allows real-time threshold tuning on a PC—no coding or firmware tweaks required.

5. Broad Firmware Compatibility

• Modular Integration: Works seamlessly with Klipper, Marlin, RRF, and other popular firmwares for custom pressure-based leveling workflows.

ALPS refers to this URL: https://mellow.klipper.cn/en/docs/ProductDoc/ExtensionBoard/fly-apls/?persistLocale=true

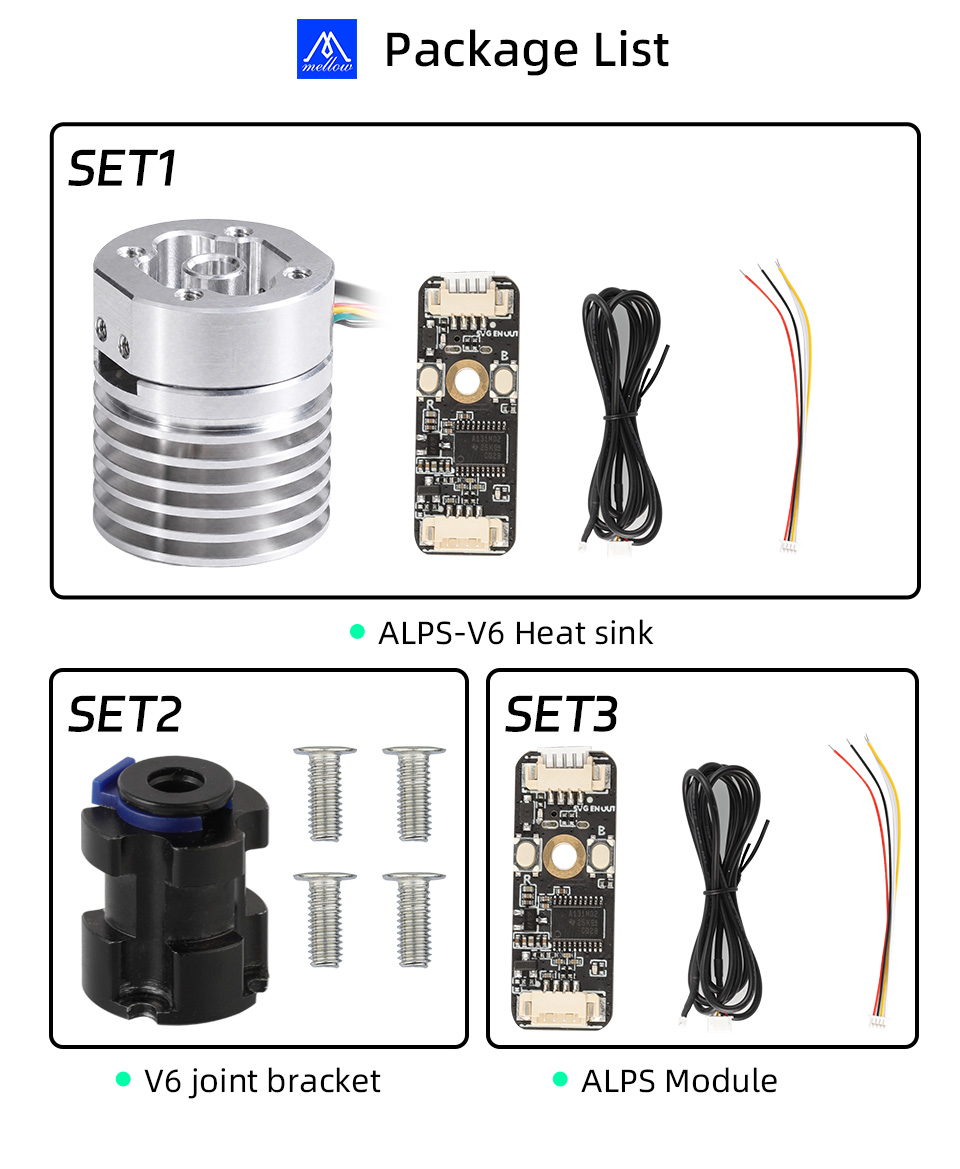

Package:

Set1

ALPS-V6 Heatsink(Not including Bowden)*1

ALPS Baord*1

1.5M signal cable*1

Set2

V6 Bowden*1

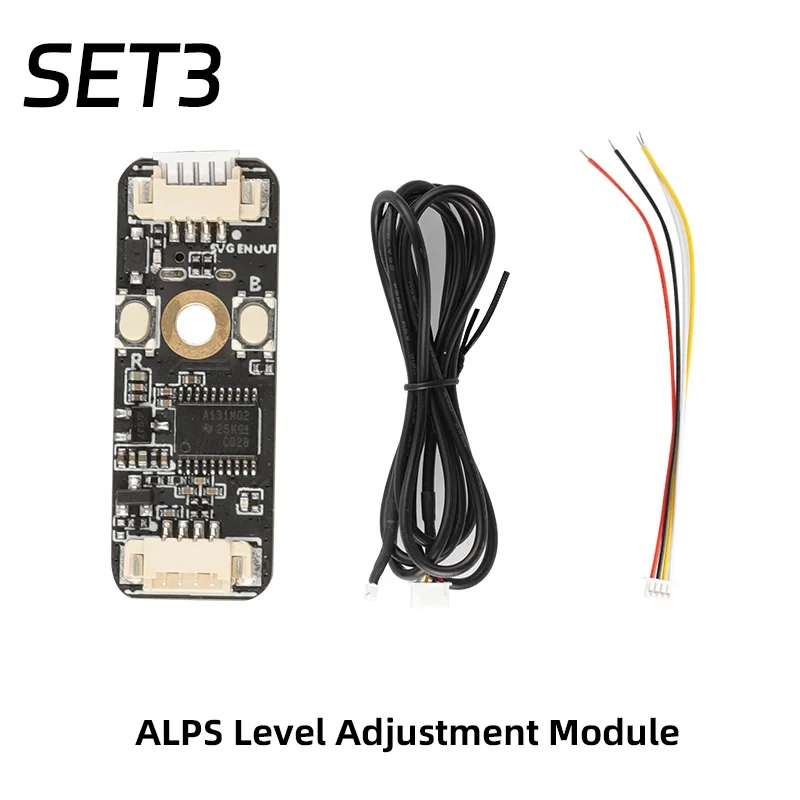

Set3

ALPS Baord*1

1.5M signal cable*1
