This is an all metal hotend upgrade kit for MK10 style extruders.Thermal barrier tube is made from 2 different materials.The lower thermal break is made from stainless steel,and the colder upper part is made from aluminum.Stainless steel was used for thermal break because it offers low thermal conductivity,and aluminum was used for the upper portion because it has a lot better thermal conductivity,to carry away any heat from the filament.All metal hotend will let you print at much higher temperature than possible with original PTFE lined one.Another benefit of an all metal hotend design is more consistent melt chamber control.During slow extrusion rate,in PTFE lined hotend,transition zone from solid to molten plastic tends to creep upward creating more stringy prints.With all metal design a transition zone is always constant,being located right at the heat break.With fast extrusion rate,PTFE tube doesn't have enough thermal conductivity to properly melt all the plastic coming out.On MK10 extruders that limitation happens around 60 mm/s,depending on nozzle size.All metal hotend solves this problem,plastic is surrounded by thermally conductive nozzle throughout its length.
Fit:
FlashForge Creator Pro
FlashForge Creator X
FlashForge Dreamer
QIDI TECH I
Dremel Id
ea Builder
PowerSpec 3D Pro
PowerSpec 3D X
PowerSpec Ultra 3D Printer
Wanhao Duplicator 4S
Wanhao Duplicator 4X
Wanhao i3
Monoprice Maker Select 3D Printer v2
Cocoon Create 3D Printer
Description:

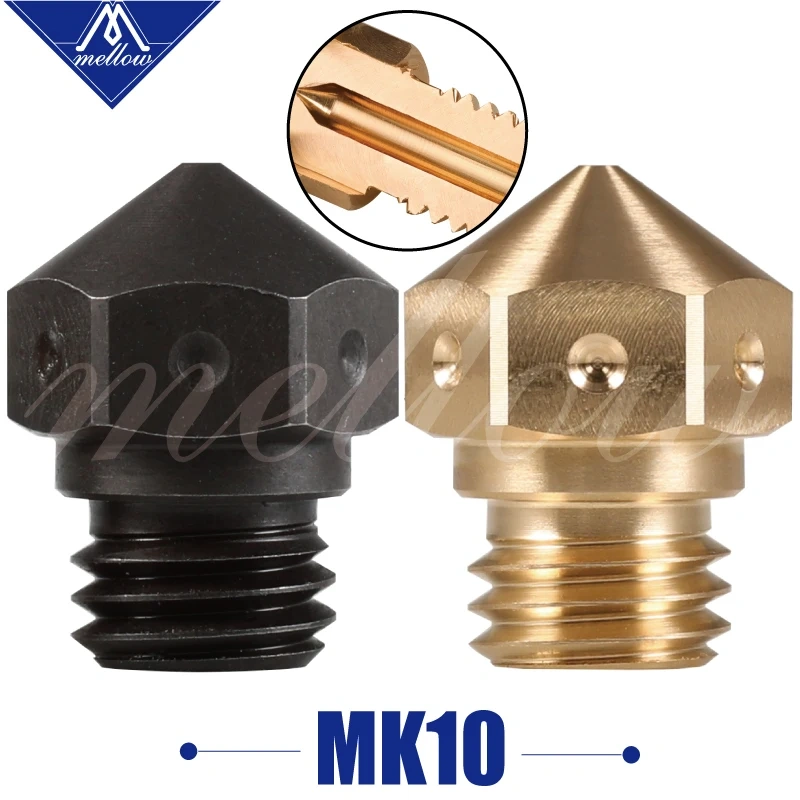

Nozzle's details:

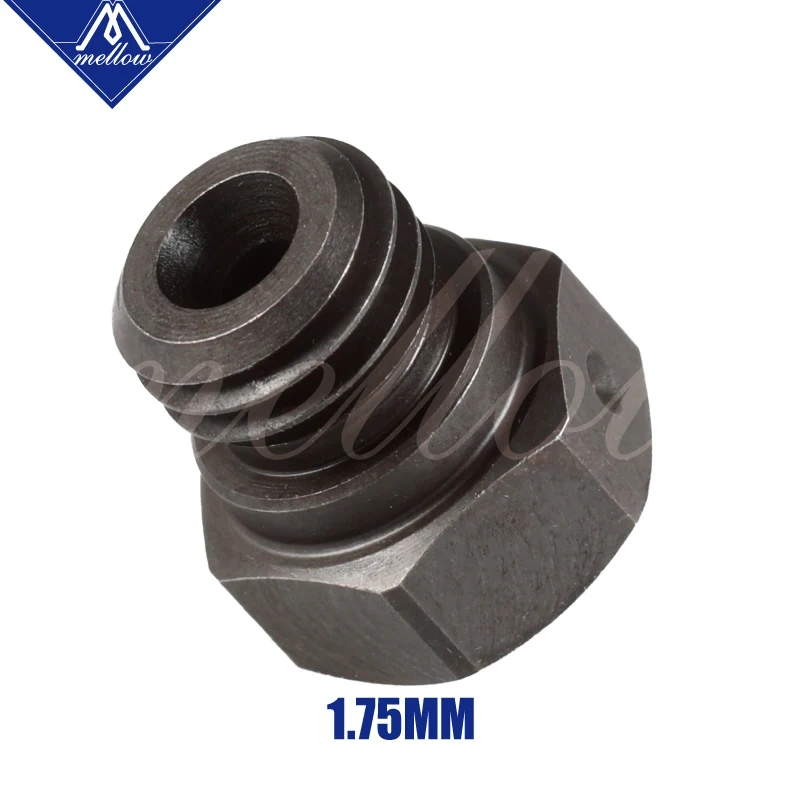

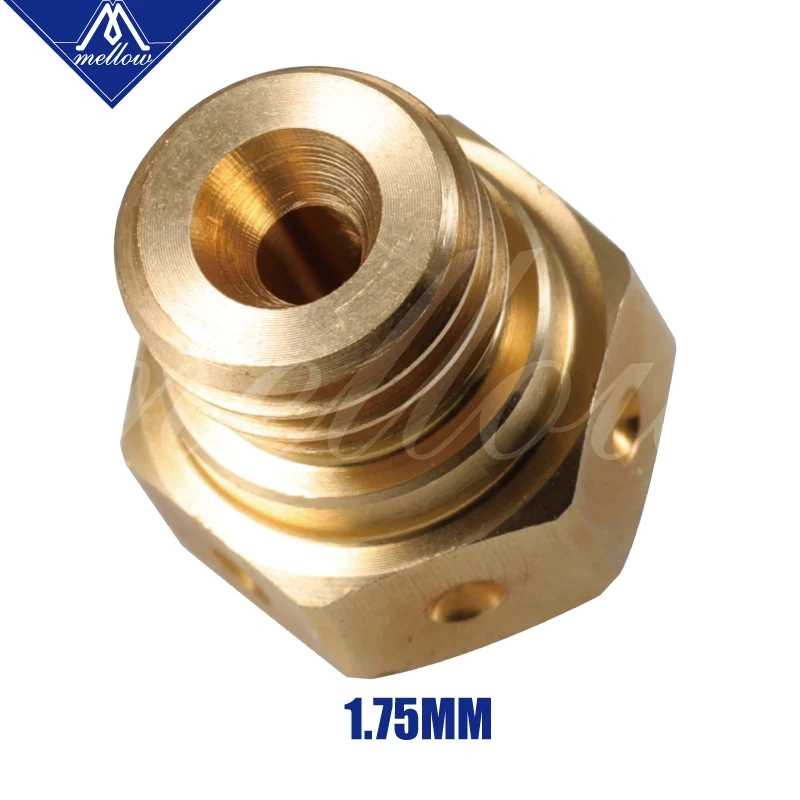

Material:Brass/Hardened steel
Filament inlet:1.75mm

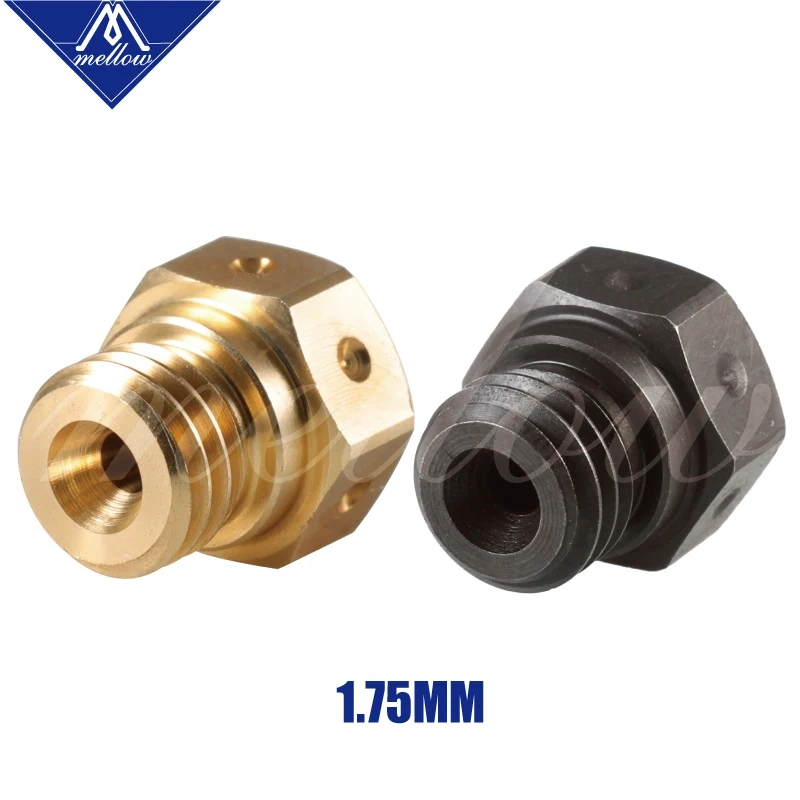

Yellow is brass, Black is hardened steel

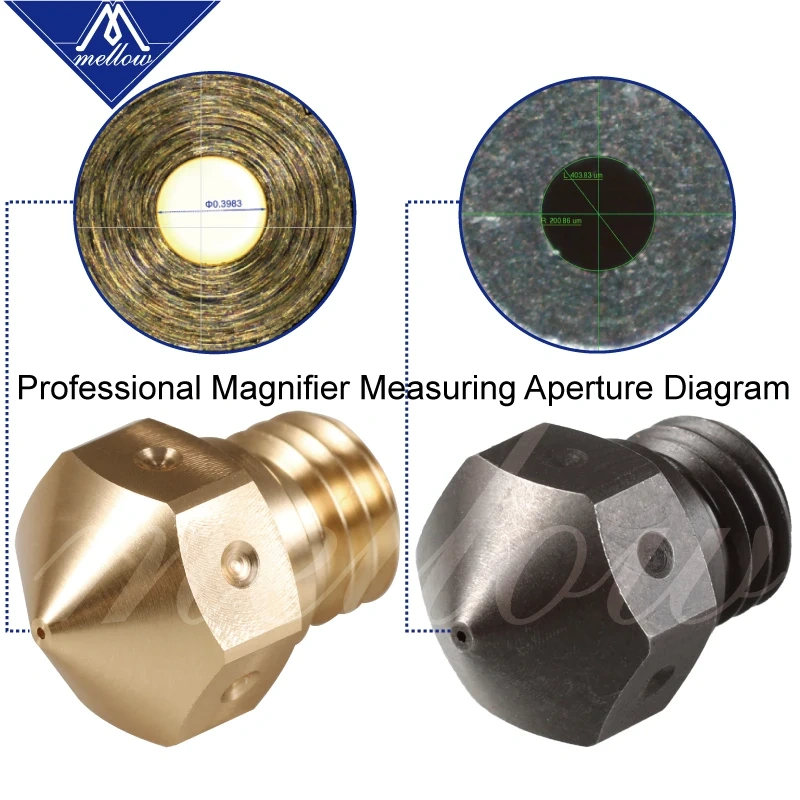

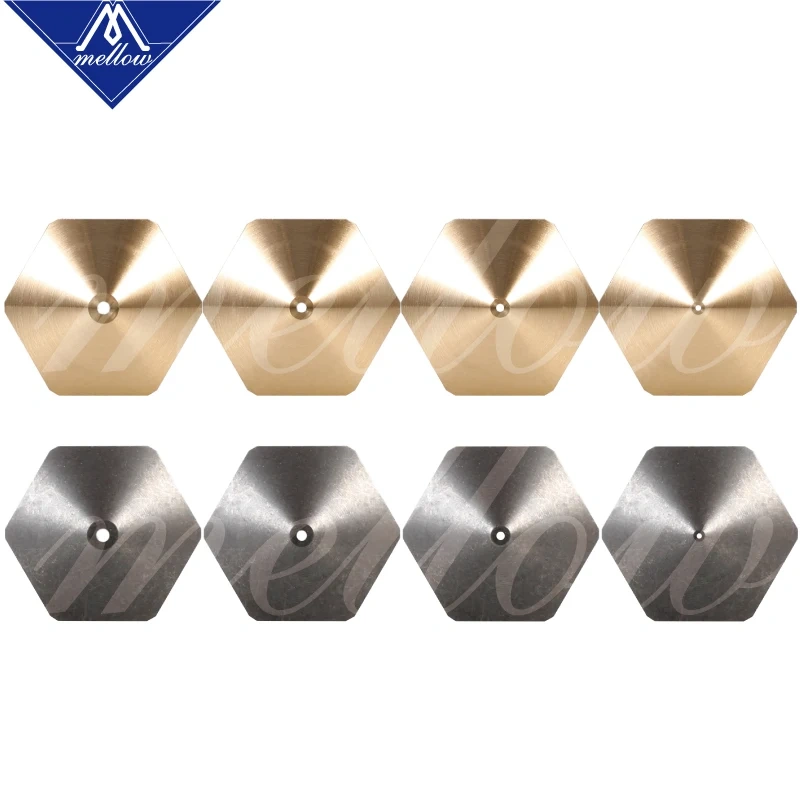

Nozzles size:0.2mm/0.4mm/0.6mm/0.8mm
Package Includes:
1 High precisionBrass Nozzle/Hardened steelNozzle
we will send the product to you as soon as possible
If you have any questions , please feel free to contact us
